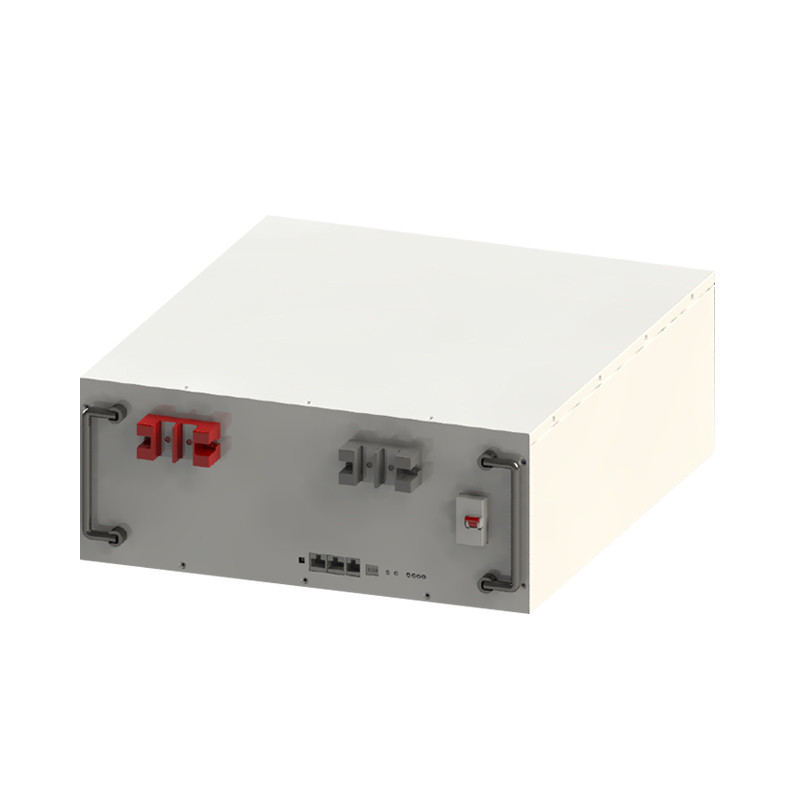

ESS Solar Energy Storage System Customzied Pack LTO Battery 48v 50Ah

2000pcs
MOQ
Inquiry
Price
ESS Solar Energy Storage System Customzied Pack LTO Battery 48v 50Ah
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 48V
Rated Capacity: 52Ah
Energy: 2496Wh
Resistance: ≤ 65mΩ
Efficiency: 0.99
Cycle Life: >10000cycles @1C,80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 40P/20S
Highlight:

Solar Energy Storage System 48v

,

Solar Energy Storage System 50Ah

,

ESS Energy Storage System Customzied
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: 48v 50Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 units/month
Product Description



ESS Solar Energy Storage System Customzied Pack LTO Battery 48v 50Ah



Electrical Parameters Mechanical Parameters
Nominal Voltage 48V Dimension(W×D×H) 442x483.5x178mm
Rated Capacity 52Ah 17.40x19.04x7.01"
Energy 2496Wh Weight 45kg
Resistance ≤ 65mΩ Terminal Type M6
Efficiency 0.99 Battery Housing Cold rolled steel sheet
Cycle Life >10000cycles @1C,80% DOD Housing Protection IP20
Self Discharge 2% per Month Cell Type-Chemistry LTO Cell
Max. Modules in Series/Parallel 40P/20S Communication RS485



Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 200A (<1S) Charge Voltage 55V~57V
Recommended Volt. Disconnect 30V Recommended Float Voltage 55V
BMS Discharge Cut-off Voltage 30V Recommended Charge Current 25A
Reconnect Voltage 40V Maximum Charge Current 100A
Short Circuit Protection 200-500us BMS Charge Cut-off Voltage 57V



Temperature Parameters
Discharge Temperature -40 ℃ to 60 ℃
Charge Temperature -40℃ to 60 ℃
Storage Temperature -10 ℃ to 35℃
BMS High Temperature Cut-off 75 ℃







Altairnano: Home | Lithium Titanate Battery, lto cells, Lithium Titanate Battery, lifepo4 forklift battery, lithium titanate vs lifepo4





Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
