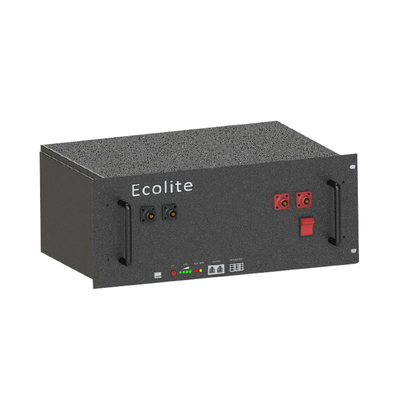

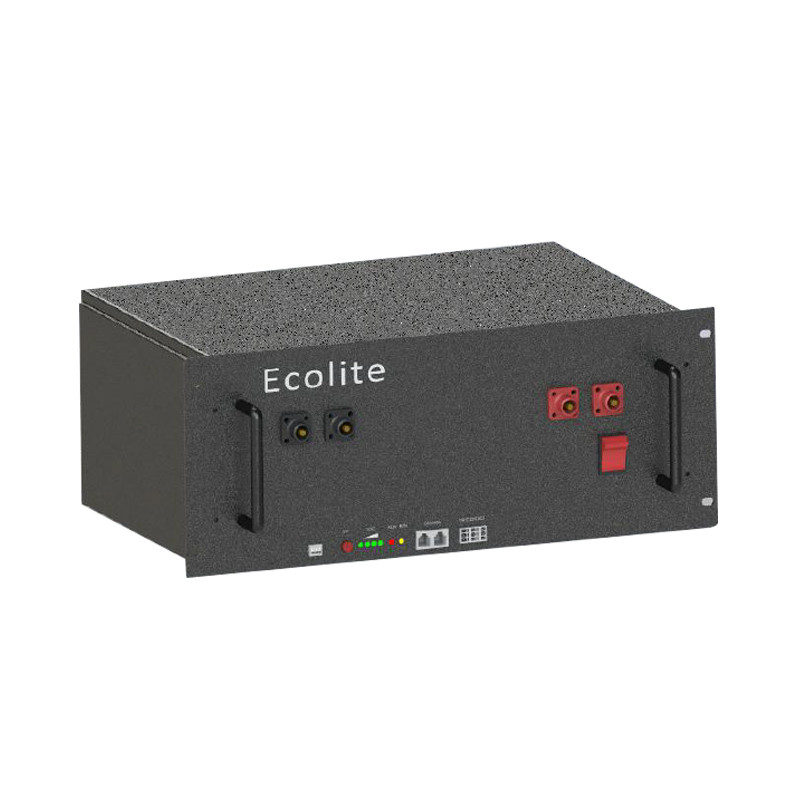

Off Grid Solar Power Storage System 50ah 48V Lifepo4 Battery Pack

Name: Off Grid Solar Power Storage System 50ah 48V Lifepo4 Battery Pack
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 48v 50Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 48v 50Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      48V Off Grid Power Storage Systems, Solar Power Storage System 50ah, 48V Lifepo4 Battery Pack


Nominal Voltage:	51.2V	Rated Capacity:	50Ah
Energy:	2560Wh	Resistance:	≤48mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles
Max. Modules In Series/Parallel:	16S/1P	Weight:	28.5kg
Terminal Type:	SLPRBPSR、SLPRBPSB	Battery Housing:	Matel
Housing Protection:	IP40	Cell Type-Chemistry:	LiFePO4 Cell
SOC Display(Optional):	LED	Communication Mode(Optional):	CAN、RS485

Nominal Voltage:	51.2V
Rated Capacity:	50Ah
Energy:	2560Wh
Resistance:	≤48mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles
Max. Modules In Series/Parallel:	16S/1P
Weight:	28.5kg
Terminal Type:	SLPRBPSR、SLPRBPSB
Battery Housing:	Matel
Housing Protection:	IP40
Cell Type-Chemistry:	LiFePO4 Cell
SOC Display(Optional):	LED
Communication Mode(Optional):	CAN、RS485

Description

Off Grid Solar Power Storage System 50ah 48V Lifepo4 Battery Pack

Solar Storage System Off Grid Power LFP Battery Pack 48v 50Ah For Home Application

Electrical Parameters
Nominal Voltage	51.2V
Rated Capacity	50Ah
Energy	2560Wh
Resistance	≤48mΩ
Efficiency	0.99
Cycle Life	>4000cycles
Max. Modules in Series/Parallel	16S/1P

Mechanical Parameters
Dimension(LxDxH)	483x303x188mm
Dimension(LxDxH)	19.02x11.93x7.40
Weight	28.5kg
Terminal Type	SLPRBPSR,SLPRBPSB
Battery Housing	Matel
Housing Protection	IP40
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	LED
Communication Mode(Optional)	CAN,RS485

Discharge Parameters
Standard Discharge Current	50A
Pulse Discharge Current	100A(<3S)
Recommended Volt. Disconnect	40V
BMS Discharge Cut-off Voltage	38.4V
Reconnect Voltage	46.4V
Short Circuit Protection	200-500uS

Charge Parameters
Charge Method	CC-CV
Charge Voltage	57.6-58.4V
Recommended Float Voltage	56V
Recommended Charge Current	25A
Maximum Charge Current	50A
BMs Charge Cut-off Voltage	59.2V

Temperature Parameters
Discharge Temperature	-30to 60℃
Charge Temperature	0 to 60℃
Storage Temperature	-20 to 35℃
BMS High Temperature Cut-off	70 ℃

Off grid solar system, UTL Off-Grid Solar System for Home Price with Detail, Best Off-Grid Solar Systems in 2022, Off-grid Solar Kits

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
