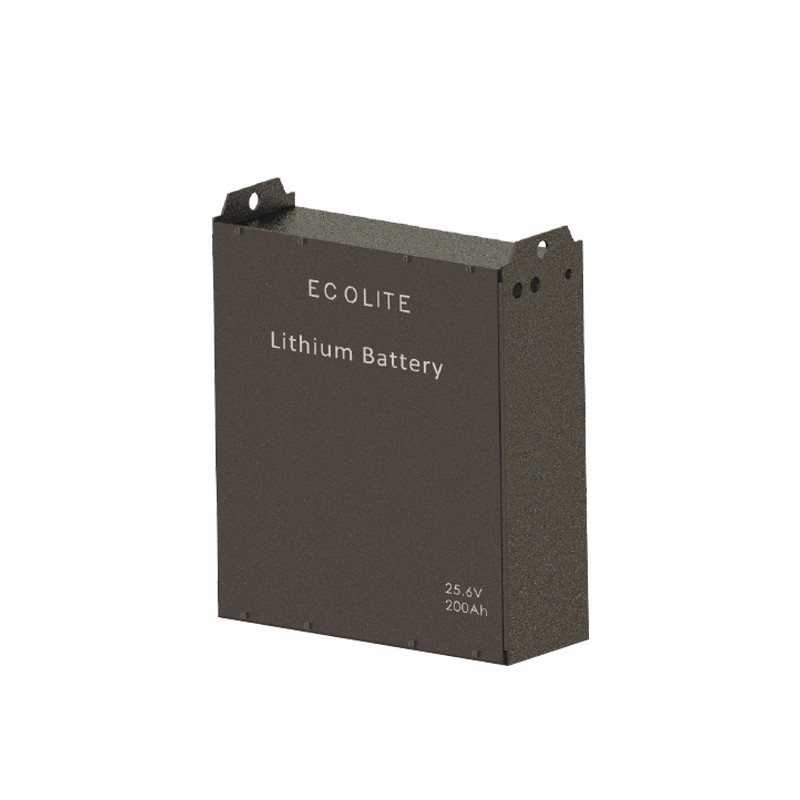

Forklift Application Backup Power 25.6V 200ah Lifepo4 Battery Pack

Name: Forklift Application Backup Power 25.6V 200ah Lifepo4 Battery Pack
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LiFePo4 Battery Pack 200Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: LiFePo4 Battery Pack 200Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Forklift 200ah Lifepo4 Battery Pack, 25.6V 200ah Lifepo4 Battery Pack


Nominal Voltage:	25.6V	Rated Capacity:	200Ah
Energy:	5.12KWh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4P/8S

Nominal Voltage:	25.6V
Rated Capacity:	200Ah
Energy:	5.12KWh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4P/8S

Description

Forklift Application Backup Power 25.6V 200ah Lifepo4 Battery Pack

Forklift Application Backup Power LiFePo4 Battery Pack 200Ah

Forklift battery, autocraft tx20hl battery, 8ah lithium motorcycle battery, eco battery 48v 72ah, autocraft battery tx20hl

Electrical Parameters
Nominal Voltage	25.6V
Rated Capacity	200Ah
Energy	5.12KWh
Resistance	≤2.5mΩ
Efficiency	0.99
Cycle Life	>4000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4P/8S

Mechanical Parameters
Dimension(D×W×H)	206550630mm
Dimension(D×W×H)	8.1121.6524.80"
Weight	80kg(No counterweight included
Terminal Type	Optional
Battery Housing	Metal
Housing Protection	IP30(Optional)
Cell Type-Chemistry	LiFePO4 Cell
SOC	YES

Discharge Parameters
Continuous Discharge Current	200A
Maximum Discharge Current	400A
Recommended Volt. Disconnect	21.6V
BMS Discharge Cut-off Voltage	20V
Reconnect Voltage	24V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	29.2V
Recommended Float Voltage	28.8V
Recommended Charge Current	200A
Maximum Charge Current	400A
BMS Charge Cut-off Voltage	30V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
