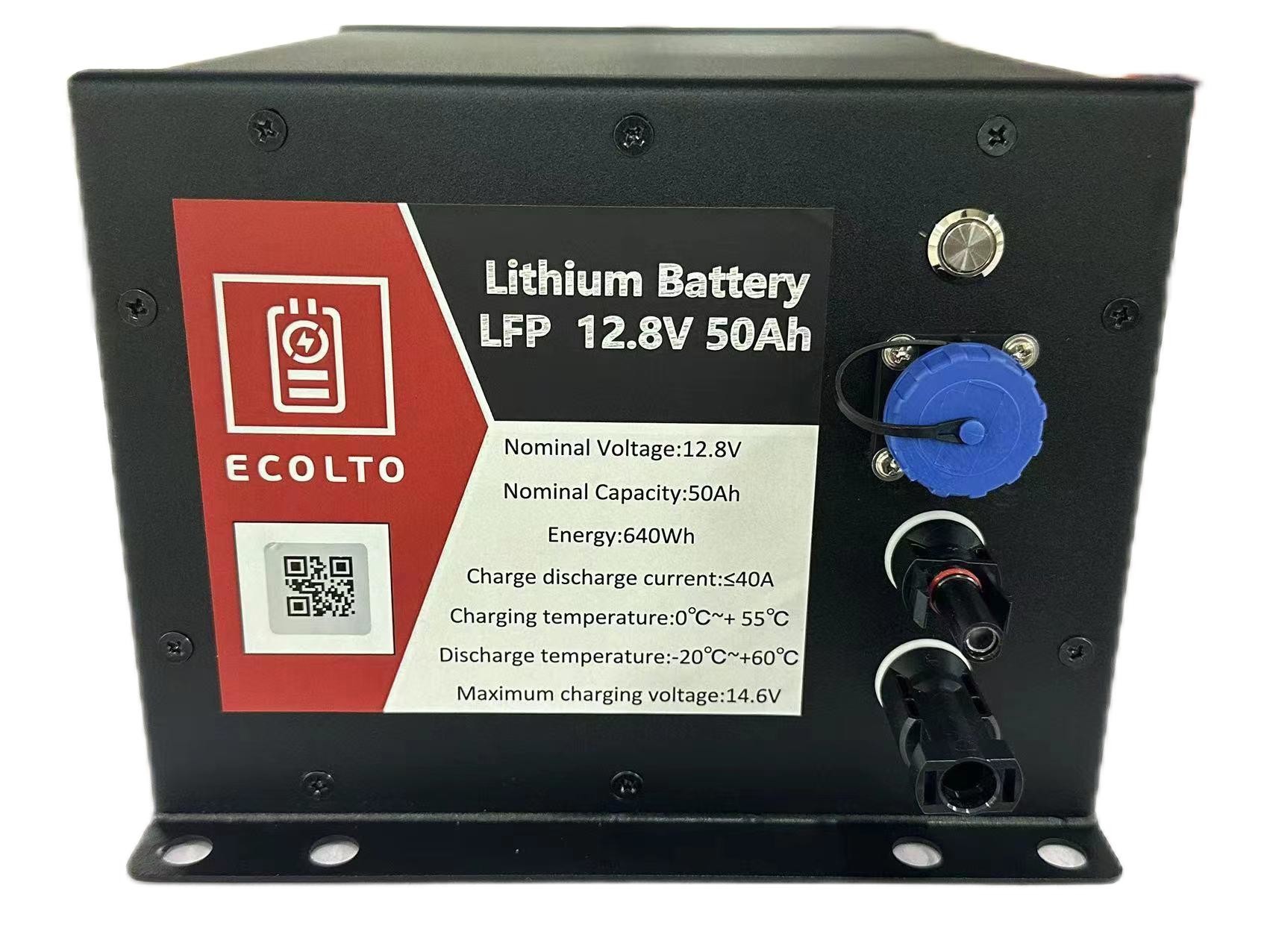

640Wh Solar Street Light Battery 12V 50Ah LiFePO4 Battery Integrated BMS And MPPT

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: SL12-50

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1 months

Payment Terms: L/C, T/T

Supply Ability: 4000 Units per month

Get Best Price
Contact Now
Specifications
Highlight:

640Wh Solar Street Light Battery

,

BMS Solar Street Light Battery

,

12V 50Ah LiFePO4 Battery

Battery Type:
Lithium-ion
Material:
LiFePo4
Battery Capacity:
12.8V 50Ah
Energy:
640Wh
Cycle Life:
>4000cycles @1C,80% DOD

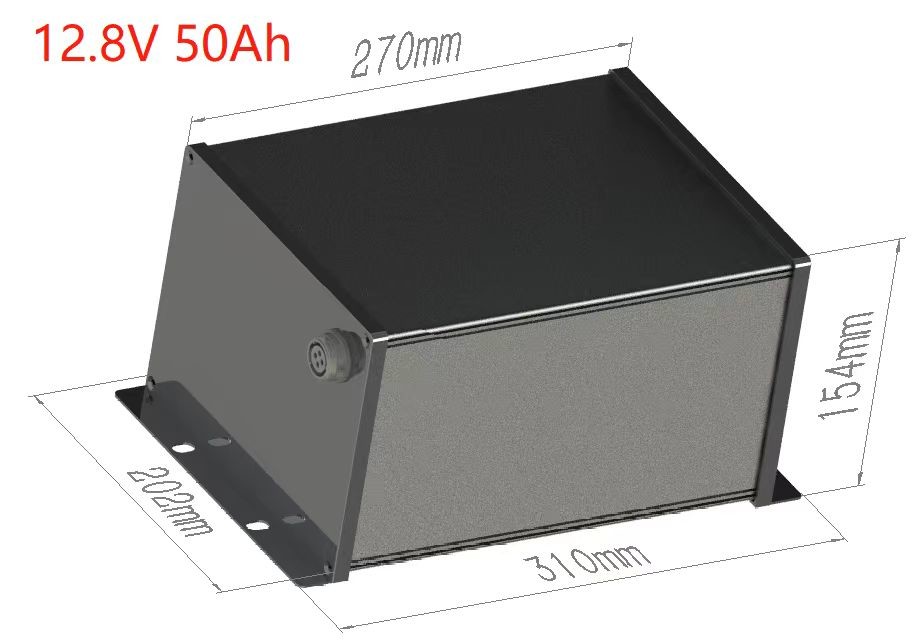

Dimension(L×W×H):
310x202x154mm
Weight:
10kg
Terminal Type:
MC4,SP1712/S4
Case:
Cold Rolled Steel Sheet
IP Rating:
IP65
Battery Type:
Lithium-ion
Material:
LiFePo4
Battery Capacity:
12.8V 50Ah
Energy:
640Wh
Cycle Life:
>4000cycles @1C,80% DOD
Dimension(L×W×H):
310x202x154mm
Weight:
10kg
Terminal Type:
MC4,SP1712/S4
Case:
Cold Rolled Steel Sheet
IP Rating:
IP65
Description
640Wh Solar Street Light Battery 12V 50Ah LiFePO4 Battery Integrated BMS And MPPT

LiFePO4 12V50Ah Battery Integrated BMS And MPPT for Solar Street Light LED Lamp monitoring, Cameras, Weather Stations,



Solar street light is not only energy saving and environmental protection will not produce electricity,In the past, many solar street lamps used lead-acid batteries, but now, almost all of them use lithium batteries.



Advantage

1. Lithium batteries are small in size, light in weight and easy to transport.

Compared with lithium-ion energy storage systems and lead-acid colloidal batteries used for power solar street lamps, they weigh about a third and are a third by volume.

That makes it easier to transport, and the cost of transport falls.

2. Lithium battery has high energy density and long service life.

Energy density refers to the amount of energy stored in a given unit of space or mass.

The more energy density a battery has, the more power it can store per unit weight or volume.

There are many factors that affect the service life of lithium batteries, and energy density is one of the most important internal factors.

3. Solar street lamps using lithium batteries are easy to install.

The installation of traditional solar street lamps needs to reserve a battery pit, and the buried box will put the battery into the sealed.

And the installation of lithium solar street light is more convenient, you can directly install the lithium battery on the bracket, the use of suspension or hidden type.

4. Lithium-ion solar street lamps are easy to maintain.

Lithium-ion solar street lamps only need to take out the batteries from the lamp pole or panels during maintenance, while traditional solar street lamps need to dig out the batteries buried in the ground during maintenance, which is much more troublesome than lithium solar street lamps.

ECOLITE produces LFP12V50AH battery pack, specially designed for solar street lamps.

The service life is up to 20 years.Be brave of any inclement weather.

640Wh Solar Street Light Battery 12V 50Ah LiFePO4 Battery Integrated BMS And MPPT 0



BATTERY DATA SHEET



Electrical Parameters   Mechanical Parameters
Nominal Voltage 12.8V Dimension(L×W×H) 310x202x154mm
Rated Capacity 50Ah 12.20x 7.95x 6.06"
Energy 640Wh Weight 10kg
Resistance ≤30mΩ Terminal Type MC4,SP1712/S4
Efficiency ≥0.98 Battery Housing Cold rolled steel sheet
Cycle Life >4000cycles @1C,80% DOD   Housing Protection IP65
Self Discharge < 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Cell in Series/Parallel 4S/1P Communication /

Discharge Parameters   Charge Parameters
Continuous Discharge Current 40A Charge Method CC-CV
Pulse Discharge Current 60A (<10S) Charge Voltage 13.7~14.6V
Recommended Volt. Disconnect   10V Recommended Float Voltage 13.5~14.3V
BMS Discharge Cut-off Voltage 8.2V Recommended Charge Current   15A
Reconnect Voltage 8.6V Maximum Charge Current 40A
Short Circuit Protection 100-300us BMS Charge Cut-off Voltage 15V

Temperature Parameters
Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 85 ℃
