48V 300Ah Customized LFP Lithium Battery For Electric Forklift Lift Truck

Name: 48V 300Ah Customized LFP Lithium Battery For Electric Forklift Lift Truck
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: FL48-300
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: FL48-300

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 200 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Customized LFP Lithium Battery, Electric Forklift LFP Lithium Battery, 48V 300Ah Lithium Battery


Battery Voltage:	48V	Capacity:	300Ah/Customized
Weight:	790±10kg	Product Size:	985x543x635mm
Cell:	LifePo4 Lithium Battery	Charging Operating Temperature Range:	0'℃ - 55°C
Discharge Working Temperature Range:	-20℃ -60℃	Terminal Type:	Anderson350A ,RAMA160A
Display:	Voltage, Current, SOC	Communicate:	CAN, 4G
Max. Modules In Series/Parallel:	16S/1P

Battery Voltage:	48V
Capacity:	300Ah/Customized
Weight:	790±10kg
Product Size:	985x543x635mm
Cell:	LifePo4 Lithium Battery
Charging Operating Temperature Range:	0'℃ - 55°C
Discharge Working Temperature Range:	-20℃ -60℃
Terminal Type:	Anderson350A ,RAMA160A
Display:	Voltage, Current, SOC
Communicate:	CAN, 4G
Max. Modules In Series/Parallel:	16S/1P

Description

48V 300Ah Customized LFP Lithium Battery For Electric Forklift Lift Truck

Electric Forklift Fork Truck Industrial Traction Lithium Battery 51.2V460Ah

Lifepo4 Replacement For Lead Acid

FEATURES

Forklift lithium batteries have characteristics such as high energy density,long lifespan, fast charging, nomemory effect, lightweight design,environmental protection and energy conservation,intelligent management,and safety and reliability.These features make forklift lithium batteries the preferred power source for the forklift industry, providing higher efficiency, longer working time, and more reliable performance for forklift use.

We support the customization of various brands of forklift batteries, lead-acid to lithium.

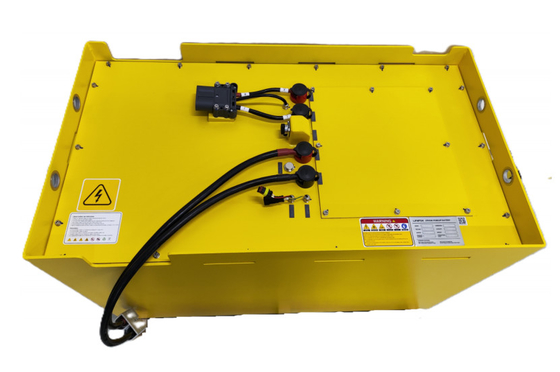

48V 300Ah Customized LFP Lithium Battery For Electric Forklift Lift Truck 0

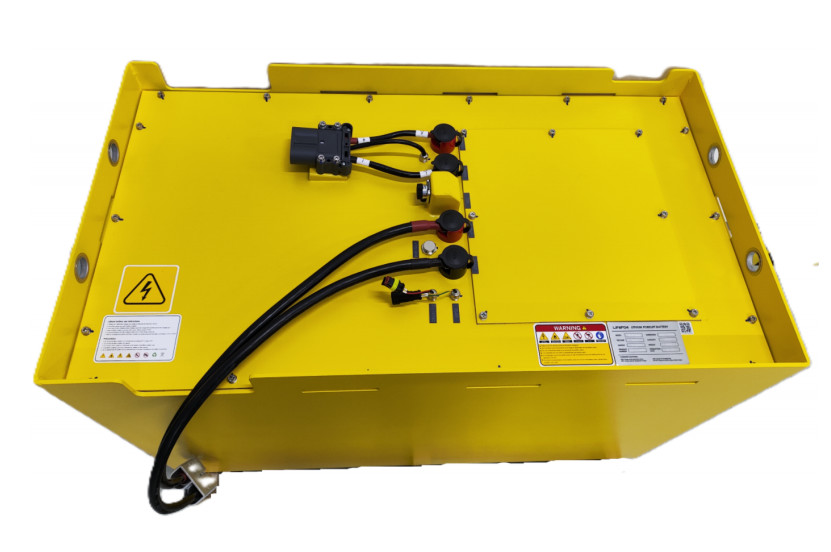

48V 300Ah Customized LFP Lithium Battery For Electric Forklift Lift Truck 1

Electrical Parameters		Mechanical Parameters
Nominal Voltage	51.2V	Dimension(LxW×H), Include handle	985x543x635mm
Rated Capacity	300Ah		38.78x21.38x 25.00"
Energy	15360Wh	Weight	790±10kg
Resistance	≤60mΩ	Terminal Type	Anderson350A ,RAMA160A
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP54
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	16S/1P	Communication	RS485 CAN

Discharge Parameters		Charge Parameters
Continuous Discharge Current	300A	Charge Method	CC-CV
Pulse Discharge Current	500A(＜5S)	Charge Voltage	56.8~58.4V
Recommended Volt. Disconnect	40V	Recommended Float Voltage	53.6~55.2V
BMS Discharge Cut-off Voltage	40V	Recommended Charge Current	150A
Reconnect Voltage	48V	Maximum Charge Current	/
Short Circuit Protection	/	BMS Charge Cut-off Voltage	58.4V

We support customized forklift lithium batteries of various voltages and capacities.

If you want to change the lead-acid forklift battery to lithium battery, we will be your best choice.
