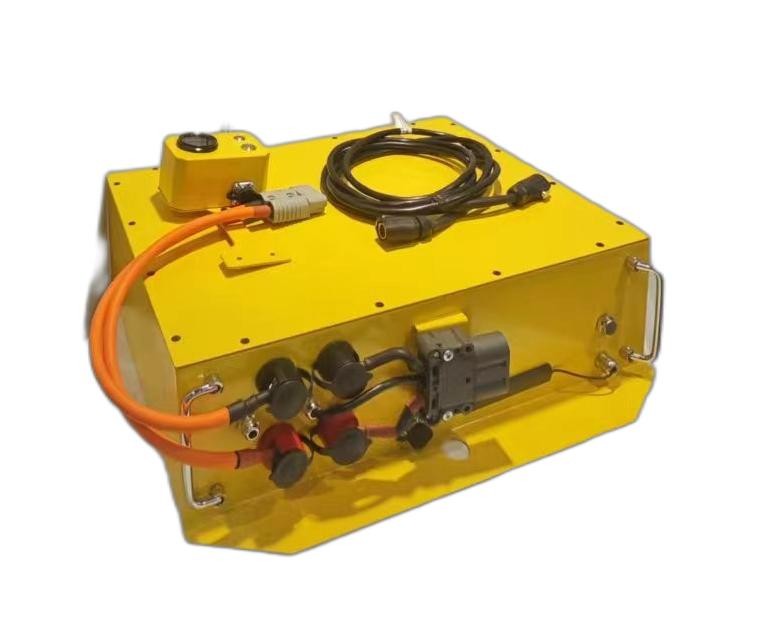

Electric Forklift Lithium Battery 24V 25.6V 100Ah Customizable With BMS

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: FL24-100

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 200 Units per month

Get Best Price
Contact Now
Specifications
Highlight:

Forklift Lithium Battery 100Ah

,

Forklift Lithium Battery With BMS

Battery Voltage:
24V
Capacity:
100Ah/Customized
Battery Pack Weight:
135±5kg
Product Size:
650x140x450mm
Cell:
LifePo4 Lithium Battery
Charging Operating Temperature Range:
0'℃ - 55°C
Discharge Working Temperature Range:
-20℃ -60℃
Box Material:
Metal Box
Display:
Voltage, Current, SOC
Communicate:
CAN, 4G
Battery Voltage:
24V
Capacity:
100Ah/Customized
Battery Pack Weight:
135±5kg
Product Size:
650x140x450mm
Cell:
LifePo4 Lithium Battery
Charging Operating Temperature Range:
0'℃ - 55°C
Discharge Working Temperature Range:
-20℃ -60℃
Box Material:
Metal Box
Display:
Voltage, Current, SOC
Communicate:
CAN, 4G
Description
Electric Forklift Lithium Battery 24V 25.6V 100Ah Customizable With BMS

Electric Forklift Fork Truck Industrial Traction Lithium Battery 24VAh

Lifepo4 Replacement For Lead Acid



With the improvement of social awareness of environmental protection, the proportion of electric forklifts will be higher and higher. Lead-acid batteries have always been the main source of power for industrial vehicles, especially electric forklifts. With the continuous expansion of the production scale of lithium batteries, the price of power lithium batteries has gradually decreased, making it possible to use them in forklifts.
Lithium battery warranty 5 years, life up to 10 years, the general lead-acid battery 2 years warranty, life is 2 years, lead-acid battery is needed to add electrolyte and distilled water, which is the cost of maintenance hours, lithium battery is a fully enclosed packaging for life maintenance-free, saving money. It will not cause the battery to dry burn or corrosion due to improper operation.

ECOLITE helps all forklift repair plants, rental companies to customize forklift lithium batteries.



FEATURES

Forklift lithium iron phosphate batteries have the characteristics of high energy density, long service life, fast charging, no memory effect, light design, environmental protection and energy conservation.They are equipped with a BMS and achieve intelligent management, making the battery safe and reliable. These characteristics make lithium iron phosphate batteries the preferred power source for the forklift industry, providing higher efficiency,longer working time, and more reliable performance for the use of forklifts.

Electric Forklift Lithium Battery 24V 25.6V 100Ah Customizable With BMS 0

We support the customization of various brands of forklift batteries, lead-acid to lithium.



                        Electric Forklift Lithium Battery 24V 25.6V 100Ah Customizable With BMS 1

Electrical Parameters   Mechanical Parameters
Nominal Voltage 25.6V Dimension(WxD×H),
Include handle
650x140x450mm
Rated Capacity 100Ah 25.59x5.51x 17.72"
Energy 2560Wh Weight 135±5kg
Resistance ≤35mΩ Terminal Type REMA160,Anderson175A
Efficiency ≥0.98 Battery Housing SPCC
Cycle Life >3000cycles @1C,80% DOD Housing Protection IP54
Self Discharge < 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Modules in Series/Parallel 8S/1P Communication RS485 CAN

Discharge Parameters   Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 200A(<20S) Charge Voltage 28.4~29.2V
Recommended Volt. Disconnect 20V Recommended Float Voltage 26.8~27.6V
BMS Discharge Cut-off Voltage 20V Recommended Charge Current 50A
Reconnect Voltage 24V Maximum Charge Current 100A
Short Circuit Protection / BMS Charge Cut-off Voltage 30V



We support customized forklift lithium batteries of various voltages and capacities.
If you want to change the lead-acid forklift battery to lithium battery, we will be your best choice.
