High Energy Density LFP 25.6V 100Ah Forklift Lithium Iron Phosphate Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              100Ah Forklift Lithium Iron Phosphate Battery, 25.6V Forklift Lithium Iron Phosphate Battery, Forklift Lithium Iron Phosphate Battery


Nominal Voltage:	25.6V	Rated Capacity:	100Ah
Energy:	2560Wh	Resistance:	≤35mΩ
Efficiency:	≥0.98	Cycle Life:	＞3000cycles @1C,80% DOD
Self Discharge:	＜5％ Per Month	Max.Modules In Series/Parallel:	8S/1P

Nominal Voltage:	25.6V
Rated Capacity:	100Ah
Energy:	2560Wh
Resistance:	≤35mΩ
Efficiency:	≥0.98
Cycle Life:	＞3000cycles @1C,80% DOD
Self Discharge:	＜5％ Per Month
Max.Modules In Series/Parallel:	8S/1P

Description

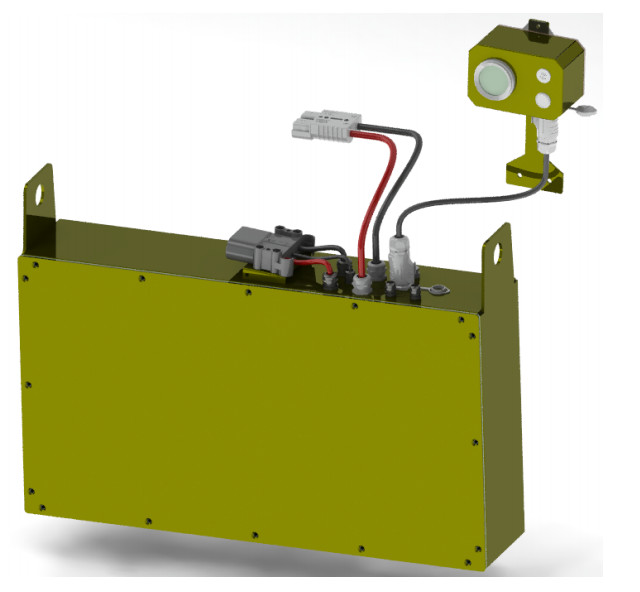

High Energy Density LFP 25.6V 100Ah Forklift Lithium Iron Phosphate Battery

Forklift Lithium iron Phosphate Battery LFP24V100Ah(25.6V100Ah)

FEATURES

Forklift lithium iron phosphate batteries have the characteristics of high energy density, long service life, fast charging, no memory
effect, light design, environmental protection and energy conservation.

They are equipped with a BMS and achieve intelligent management, making the battery safe and reliable. These characteristics make lithium iron phosphate batteries the preferred power source for the forklift industry, providing higher efficiency,longer working time, and more reliable performance for the use of forklifts.

Mechanical Parameters
Dimension(W×D×H) include handle	650140450mm
Dimension(W×D×H) include handle	25.595.5117.72''
Weight	135±5kg
Terminal Type	REMA160,Anderson175A
Battery Housing	SPCC
Housing protection	IP54
Cell Type-Chemistry	LiFePO4 Cell
Communication	RS485 CAN

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	200A(＜20S)
Recommended Volt. Disconnect	20V
BMS Discharge Cut-off Voltage	20V
Reconnect Voltage	24V
Short Circuit Protection	/

Charge Parameters
Charge Method	CC-CV
Charge Voltage	28.4~29.2V
Recommended Float Voltage	26.8~27.6V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	30V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0 ℃ to 55 ℃
Storage Temperature	-20℃ to 60 ℃
BMS High Temperature Cut-off	65℃
