24V 100Ah Forklift Lithium Battery High Conversion Efficiency / High Voltage Regulation

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          100Ah Forklift Lithium Battery, High conversion efficiency Forklift Lithium Battery, 24V Forklift Lithium Battery


Nominal Voltage:	29.2V	Rated Capacity:	100A
Product Weight:	40kg	Dimension(LxWxH):	600x400x650mm
Input Voltage Range:	AC304V~AC456V	THD:	3.5％
Power Factor:	0.99

Nominal Voltage:	29.2V
Rated Capacity:	100A
Product Weight:	40kg
Dimension(LxWxH):	600x400x650mm
Input Voltage Range:	AC304V~AC456V
THD:	3.5％
Power Factor:	0.99

Description

24V 100Ah Forklift Lithium Battery High Conversion Efficiency / High Voltage Regulation

Ecolite Forklift Lithium Battery 24V100Ah High Conversion Efficiency/High Voltage Regulation

FEATURES

This series of chargers has high conversion efficiency,high voltage regulation/current regulation accuracy,and small output current ripple. Due to the use ofhigh-frequency technology switches, the charging machine is characterized by power saving, easy control,wide range adjustment, small size and light weight.

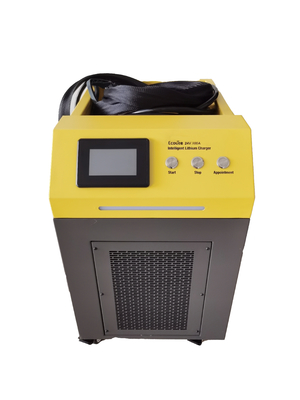

Three views of product

Specifications

Basic Parameters
Nominal Voltage	29.2V
Rated Capacity	100A
Product Weight	40kg
Dimension(LxWxH)	600x400x650mm

Input
Input Voltage Range	AC304V~AC456V
Input Limit Voltage	AC490V
Input Frequency Range	50/60Hz
Power Factor	0.99
THD	3.50%
Input Inrush Current	10A(maximum)
Input Type	Three-phase three-wire +PE

Output
Output Voltage Range	DC18V~DC29.2V
Output Voltage Error	±0.5%
Steady Voltage Accuracy	±0.5%
Output Voltage Ripple Factor	±1%
Maximum Output Current	100A(Typical)
Output Current Adjustment Range	1-100A
Output Current Error	±1%
Steady Current Accuracy	0.8
Communicate	CAN
