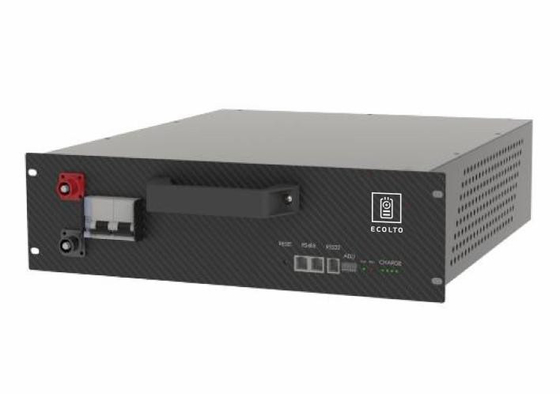

48V 51.2V 100Ah LiFePO4 Lithium Battery Pack For Solar off Grid Energy Storage

Name: 48V 51.2V 100Ah LiFePO4 Lithium Battery Pack For Solar off Grid Energy Storage
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP48100
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: LFP48100

Payment & Shipping Terms

Minimum Order Quantity: 10Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      51.2V 100Ah LiFePO4 Battery, 48V 100Ah Lithium Battery, 48v 100ah Lifepo4 Battery Pack


Chemical Formula:	LiFePO4	Rated Voltage:	48V 51.2V
Rated Capacity:	100Ah	Energy:	5120Wh
Cycle Life:	>4000 Cycles @80% DOD, 1C/1D 25℃	Dimensions:	4826x592x133mm
Weight:	45.5kg	Communication:	RS485/RS232
Terminal Type:	FCC06B0	Max Charge Current:	100A
Max Discharge Current:	100A	Internal Resistance:	≤30mΩ
Charge Method:	CC_CV	Operating Temperature:	-20°C To 60°C
Self Discharge Rate:	≤5% Per Month	Case Protection:	IP30
Warranty:	3 Years	Certifications:	UN38.8，MSDS，CE，RoHS

Chemical Formula:	LiFePO4
Rated Voltage:	48V 51.2V
Rated Capacity:	100Ah
Energy:	5120Wh
Cycle Life:	>4000 Cycles @80% DOD, 1C/1D 25℃
Dimensions:	4826x592x133mm
Weight:	45.5kg
Communication:	RS485/RS232
Terminal Type:	FCC06B0
Max Charge Current:	100A
Max Discharge Current:	100A
Internal Resistance:	≤30mΩ
Charge Method:	CC_CV
Operating Temperature:	-20°C To 60°C
Self Discharge Rate:	≤5% Per Month
Case Protection:	IP30
Warranty:	3 Years
Certifications:	UN38.8，MSDS，CE，RoHS

Description

48V 51.2V 100Ah LiFePO4 Lithium Battery Pack For Solar off Grid Energy Storage

LiFePO4 48V 51.2V 100Ah Lithium Battery Pack With BMS 3U For Home Industrial Solar off Grid Energy Storage,

Battery Energy industrial grade lithium-ion battery packs feature high energy

density in a smart form factor with fast charging times, making them the

right choice for your performance power solutions.

Highlights

• A third of the weight of VLRA batteries.

• Safety first, each prismatic cell encased in its own aluminium shell for efficient heat transfer.

• Excellent thermal management.

• Rated to 55°C operating temperature.

• Contains a battery management system for safety and cell balancing.

• Tested before dispatch to ensure batteries are prepared for reliable performance.

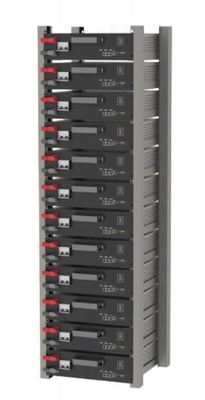

• Can parallel up to 60 batteries achieving 300 kWh.

• Utilises the most stable lithium-ion chemistry (LFP).

• Excels in ad hoc energy storage.

• Double pole 125 A circuit breaker protection.

• ISO 9001:2015 accredited quality assurance.

Big in energy. Small in size.

Optimised for tight spaces, EnerLIFE lithium-ion batteries have one of the best energy densities on the market. Designed for a 600 x 600 cabinet, they provide 5 kWh of energy storage in a small package. The lightweight design reduces weight by up to a 60% versus a VRLA bank.

Installation and maintenance are made simpler with the easy to use front terminal connectors which also reduce connection complexity allowing for parallel connections.

Remote monitoring built in

Saving you from high operational costs and unplanned downtime, the maintenance free design combined with the smart remote monitoring reduce your total cost of ownership.

Your investment is protected thanks to the advanced battery management system (BMS) preventing critical problems by ensuring safe operating

temperature and charging. This helps extend the life of your battery as well as ensuring they are reliable.

Helping avoid expensive and unnecessary maintenance programs, remote monitoring lets you easily check your battery system performance. Each battery has its own built-in monitoring.

Long lifecycle and fast charging

Your batteries will last longer, recharge faster and have a superior cycle life due to the stable chemistry of the EnerLIFE lithium battery range. The low self-discharge and high round-trip lower the cost of your energy storage.

These batteries have greater flexibility due to their ability to operate continuously at a partial state-of-charge without harm.

Why choose Battery Energy?

Battery Energy Power Solutions deliver the combination of premier energy storage solutions, technical expertise and industry-leading experience all backed with continual support to give you peace of mind.

BATTERY DATA SHEET
ELECTRICAL PARAMETERS
NOMINAL VOLTAGE			51.2V
RATED CAPACITY			100Ah
ENERGY			5120Wh
RESISTANCE			≤30mΩ
EFFICIENCY			≥0.98
CYCLE LIFE			>4000cycles @1C,80%DOD
SELF DISCHARGE			<5%per Month
MAX.MODULES IN SERIES/PARALLEL			16S/1P

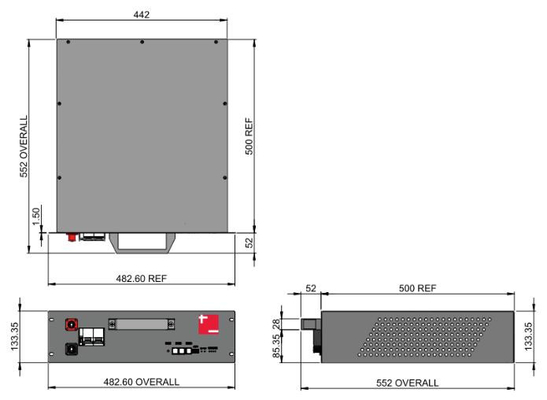

MECHANICAL PARAMETERS
DIMENSION (WxD×H),Include handle			4826x592x133mm (19x 23.30x 5.24")
WEIGHT			45.5kg
TERMINAL TYPE			FCC06B0
BATTERY HOUSING			≤30mΩ
HOUSING PROTECTION			IP30
CELL TYPE-CHEMISTRY			LiFePO4 Cell
COMMUNICATION			RS485/RS232
DISCHARGE PARAMETERS
CONTINUOUS DISCHARGE CURRENT			100A
PULSE DISCHARGE CURRENT			150A(<0.5S)
RECOMMENDED VOLT.DISCONNECT			40V
BMS DISCHARGE CUT-OFF VOLTAGE			40V
RECONNECT VOLTAGE			43.2V
SHORT CIRCUIT PROTECTION			300-800us
CHARGE PARAMETERS
CHARGE METHOD			CC-CV
CHARGE VOLTAGE			56.8~58.4V
RECOMMENDED FLOAT VOLTAG			54~55.2V
RECOMMENDED CHARGE CURRENT			50A
MAXIMUM CHARGING CURRENT			100A
BMS CHARGE CUT-OFF VOLTAGE			59V
TEMPERATURE PARAMETERS
DISCHARGE TEMPERATURE			-20℃ to 60℃
CHARGING TEMPERATURE			0℃to 55℃
STORAGE TEMPERATURE			-20°℃ to 60℃
BMS HIGH TEMPERATURE CUT-OFF			65℃
