Features

Specifications

Nominal Voltage: 12.8V

Rated Capacity: 120Ah

Energy: 1536Wh

Resistance: ≤65mΩ

Efficiency: 0.99

Cycle Life: >2000cycles @1C,80% DOD

Self Discharge: 2% Per Month

Max. Modules In Series/Parallel: 4S/2P

Terminal Type: M8

Battery Housing: ABS,LG121

Cell Type-Chemistry: LiFePO4 Cell

Highlight:

LFP 12V 120Ah LiFePO4 Battery

12V 120Ah LiFePO4 Battery

Basic Infomation

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Model Number: LFP battery pack 12V 120Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000Units per month

Gallery

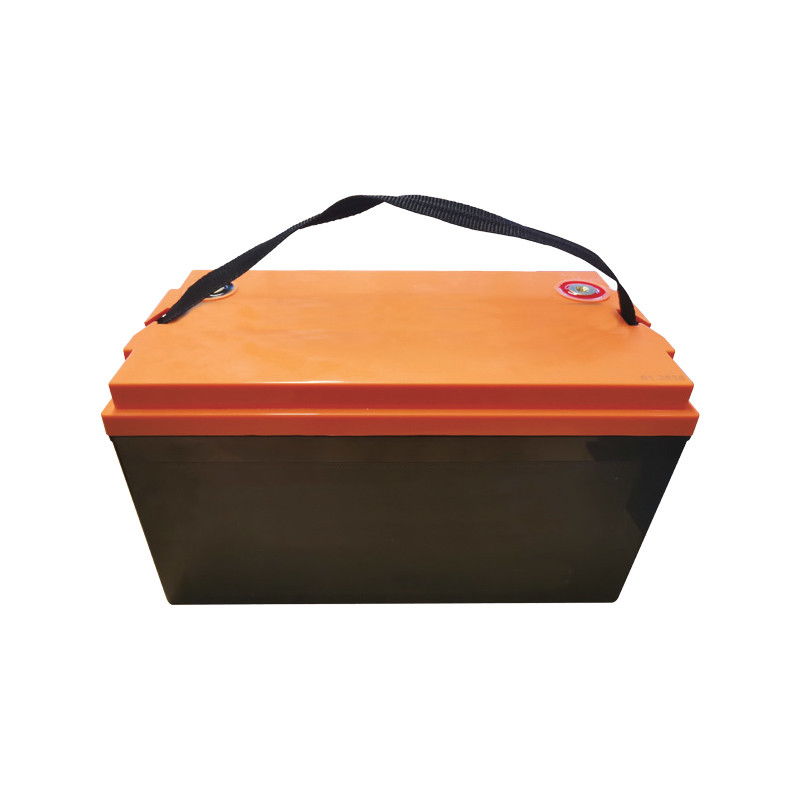

LFP 12V 120Ah LiFePO4 Battery Pack For Recreational Vehicle Lifepo4 Cell

Product Description

Ecolite 12v 120ah Lfp Battery Pack For Recreational Vehicle Lifepo4 Cell

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	120Ah
Energy	1536Wh
Resistance	≤65mΩ
Efficiency	0.99
Cycle Life	>2000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/2P

Mechanical Parameters
Dimension(L×W×H)	329x173x214mm
Dimension(L×W×H)	13.0 x 6.8x 8.5"
Weight	11.5kg(25.35bs)
Terminal Type	M8
Battery Housing	ABS, LG121
Housing Protection	IP56
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	120A
Pulse Discharge Current	250A (<30S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.8V
Recommended Charge Current	30A
Maximum Charge Current	120A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃ (-4 to 140 ℉ )
Charge Temperature	0 to 60 ℃ (32 to 140 ℉ )
Storage Temperature	-40 to 70 ℃ (-40 to 158 ℉ )
BMS High Temperature Cut-off	78 ℃ (172.4 ℉ )

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See User's Manual for Proper Operation.

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
