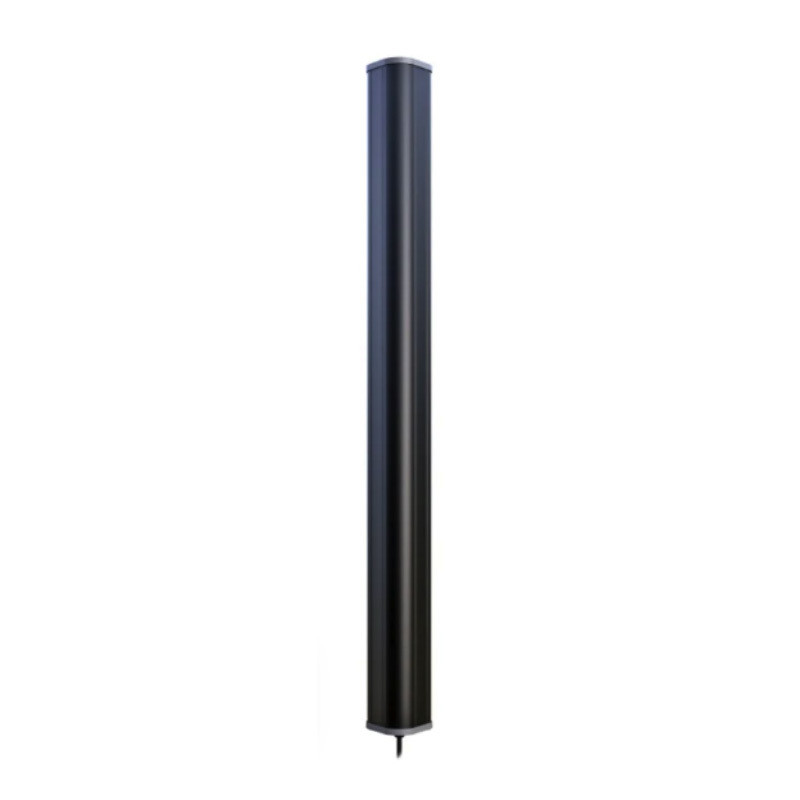

Name: 22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Dimensions (Height X Width X Depth): 1600 X 155 X 145 Mm

Nominal Voltage: 48.3V

Charge Cut-off Voltage (Bulk/Absorption Voltage)*: 55.5V

Float Voltage*: 54.5V

Discharge Cut-off Voltage (Low Cut-off Voltage)*: 42V

Low Restart Voltage (Reconnect Voltage)*: 46V

Mass: 36KG

Max Continuous Charge /Discharge Current (25°C ± 5°C): 50A (1.25C)

Max Pulse Charge/Discharge Current (10s, 25°C ± 5°C): 120A (3C)

Isolation & Distribution Block Requirement: 50A Per Battery Connected In Parallel

Operating Temperature: -40°C To 60°C (recommended 5°C To 35°C)

Storage Temperature: -5°C To 35°C

Cycle Life (1C, 25°C ± 5°C): 22000

Ingress Rating: IP65

Highlight:

LTO Lithium Titanate Battery 48V

LTO Lithium Titanate Battery 27Ah

Basic Infomation

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Gallery

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating

Product Description

ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah

Application

Start a Free Product Chat

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating 0

ECOLTO Battery-4827

Lithium Titanate(LTO)48v 27Ah

Cutting edge battery delivering market-leading technology and economic savings.

Lifetime Solution

The Ecolto battery lasts for 22,000 cycles and has a tough weatherproof aluminum case providing a lifetime energy storage solution.

Superior Performance

Each Ecolto Battery provides 1.93kWh of energy storage. Superior cycling performance allows 3 cycles a day to take full advantage of your energy production and off peak energy pricing plan.

Smart Design

Simple inside or outside installation, easily mounted on a wall, with a space efficient design and modern aesthetics (comes with mounting brackets).

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating 1

Easy system Expansion

Horizontal mount

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating 2

Simple lock security

Vertical mount

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating 4

SPECIFICATION

Start a Free Product Chat

Specification	ECOLTO Battery-4827
Nominal Capacity (25°C ± 5°C)	1.93KWh (40Ah)
Chemistry	Lithium Titanate (LTO)
Dimensions (Height x Width x Depth)	1600 x 155 x 145 mm	1635 x 155 x 145 mm
Nominal Voltage	48.3V	48.3V
Charge Cut-off Voltage (Bulk/Absorption Voltage)*	55.5V	56.5V
Float Voltage*	54.5V	55.5V
Discharge Cut-off Voltage (Low Cut-off Voltage)*	42V	42V
Low Restart Voltage (Reconnect Voltage)*	46V	44.6V
Mass	36kg
Max Continuous Charge /Discharge Current (25°C ± 5°C)	50A (1.25C)
Max Pulse Charge/Discharge Current (10s, 25°C ± 5°C)	120A (3C)
Battery Management System	Internal cell balancing, Over-current trip	Internal cell balancing, failure detection and trip. Under-Voltage, Over-Voltage, Over-current, Over-Temp, Under-Temp protection and trip
Isolation & Distribution Block Requirement	50A per battery connected in parallel
Operating Temperature	-40°C to 60°C (recommended 5°C to 35°C)
Storage Temperature	-5°C to 35°C
Cycle Life (1C, 25°C ± 5°C)	22,000
Depth of Discharge	100%
Round Trip Efficiency(1C, 25°C ± 5°C)	96%
Ingress Rating	IP65
Installation	Indoors or outdoors
Connections	8mm² (8 AWG) (Ø3mm) wire per pole
Warranty	20 Years or 22,000 cycles,whichever comes first,see warranty document for details

Contact Person :	Mr. Frank
Tel :	+86 13771834624

22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating

LTO Lithium Titanate Battery 48V

LTO Lithium Titanate Battery 27Ah

ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah

Application

ECOLTO Battery-4827

Lithium Titanate(LTO)48v 27Ah

Cutting edge battery delivering market-leading technology and economic savings.

Lifetime Solution

The Ecolto battery lasts for 22,000 cycles and has a tough weatherproof aluminum case providing a lifetime energy storage solution.

Superior Performance

Each Ecolto Battery provides 1.93kWh of energy storage. Superior cycling performance allows 3 cycles a day to take full advantage of your energy production and off peak energy pricing plan.

Smart Design

Simple inside or outside installation, easily mounted on a wall, with a space efficient design and modern aesthetics (comes with mounting brackets).

Easy system Expansion

Horizontal mount

Simple lock security

Vertical mount

SPECIFICATION

Battery Name

Ecolto-4827

Technology Class

Lithium Titanate (LTO)

Nominal Voltage

48.3 V

Number of Battery Modules

5

Maximum Continous Discharge Rate

2. 4kW (per battery module) (1 .25C)

Rated Capacity (@ 100% DOD)

1.93 kWh

Recommended DOD

100%

Weight

36 kg (per battery module)

Size

36 L (per battery module)

0

kW

Idle

74% SOC

36 kg (per battery
module)

36 L (per battery
module)
