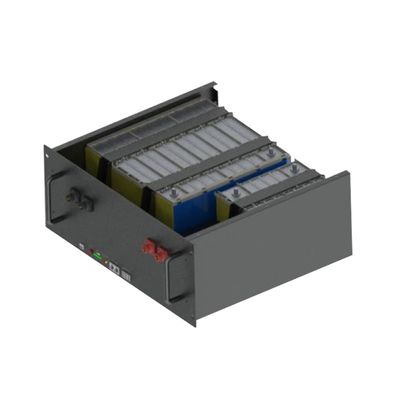

51.2V 100Ah 5.12KWh LFP Battery For Solar ESS Backup Power Commercial Industrial

Name: 51.2V 100Ah 5.12KWh LFP Battery For Solar ESS Backup Power Commercial Industrial
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 51.2V 100Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 51.2V 100Ah

Payment & Shipping Terms

Minimum Order Quantity: ≥1pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 2-3 weeks

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      51.2V ESS Backup Power, 100Ah ESS Backup Power


Nominal Voltage:	51.2V	Rated Capacity:	100Ah
Rated Energy:	5.12KWh	Efficiency:	0.99
Resistancy:	≤2.5mΩ	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	2P/16S
Communication:	CAN Or RS485	Cell Type-Chemistry:	LiFePO4 Cell

Nominal Voltage:	51.2V
Rated Capacity:	100Ah
Rated Energy:	5.12KWh
Efficiency:	0.99
Resistancy:	≤2.5mΩ
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	2P/16S
Communication:	CAN Or RS485
Cell Type-Chemistry:	LiFePO4 Cell

Description

51.2V 100Ah 5.12KWh LFP Battery For Solar ESS Backup Power Commercial Industrial

LFP battery 51.2v 100Ah for solar ESS backup power commercial industrial with communication protocal

51.2V 100Ah 5.12KWh LFP Battery For Solar ESS Backup Power Commercial Industrial 0

Electrical Parameters		Mechanical Parameters
Nominal Voltage	51.2V	Dimension(L×W×H)	400442190mm
Rated Capacity	100Ah	Dimension(L×W×H)	15.717.47.5"
Energy	5.12KWh	Weight	48kg
Resistance	≤2.5mΩ	Terminal Type	100A Plug type
Efficiency	0.99	Battery Housing	Metal
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP20
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	2P/16S	communication	CAN or RS485

Discharge Parameters		Charge Parameters
Continuous Discharge Current	50A	Charge Method	CC-CV
Maximum Discharge Current	100A	Charging Voltage	56.8~58.4V
Recommended Volt. Disconnect	40V	Recommended Float Voltage	54V
BMS Discharge Cut-off Voltage	40V	Recommended Charge Current	50A
Reconnect Voltage	43.2V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	58.4V

Temperature Parameters
Discharge Temperature		-20 to 60 ℃
Charging Temperature		0 to 60 ℃
Storage Temperature		-10 to 35℃
BMS High Temperature Cut-off		65 ℃

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
