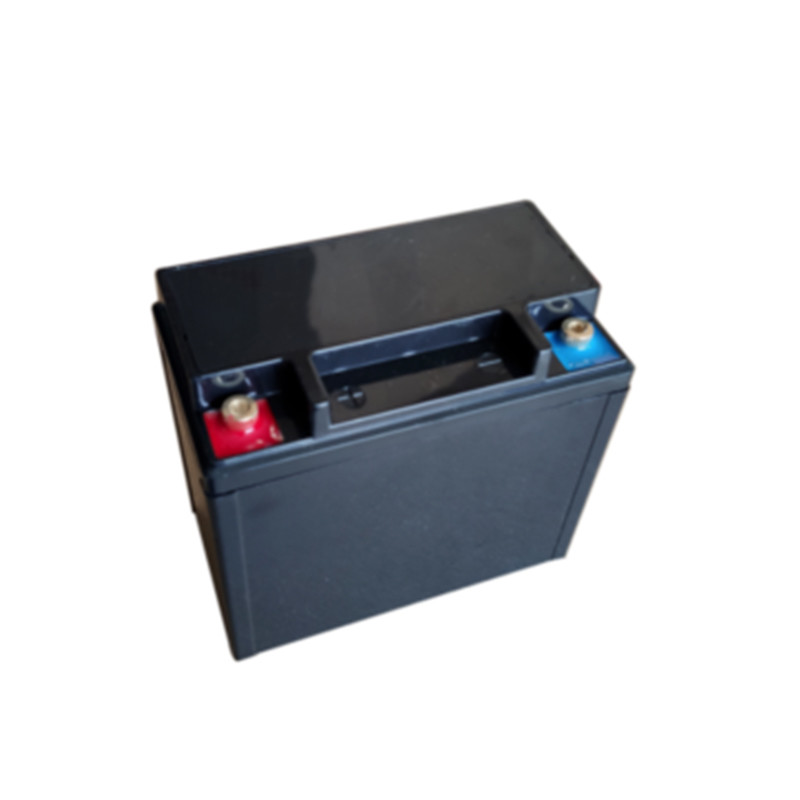

Electric Scooter Lithium Iron Phosphate Battery 12.8v 4.4ah

Name: Electric Scooter Lithium Iron Phosphate Battery 12.8v 4.4ah
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12.8V 4.4Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12.8V 4.4Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Scooter Lithium Iron Phosphate Battery, Lithium Iron Phosphate Battery 12.8v


Nominal Voltage:	12.8V	Rated Capacity:	4.4Ah
Energy:	56.3Wh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4S/2P
Dimension:	119×61×127mm

Nominal Voltage:	12.8V
Rated Capacity:	4.4Ah
Energy:	56.3Wh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4S/2P
Dimension:	119×61×127mm

Description

Electric Scooter Lithium Iron Phosphate Battery 12.8v 4.4ah

Scooter Lithium Iron Phosphate Battery 12.8V 4.4Ah

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	4.4Ah
Energy	56.3Wh
Resistance	≤2.5mΩ
Efficiency	0.99
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/2P
Mechanical Parameters
Dimension(L×W×H)	11961127mm
Dimension(L×W×H)	4.412.724.17"
Weight	0.8kg
Terminal Type	N1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/
Discharge Parameters
Continuous Discharge Current	4.4A
Cold Cranking Ampere	260CCA
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	14.5V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.4V
Recommended Float Voltage	13.4V
Recommended Charge Current	4.4A
Maximum Charge Current	17.6A
BMS Charge Cut-off Voltage	14.4V
Temperature parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
