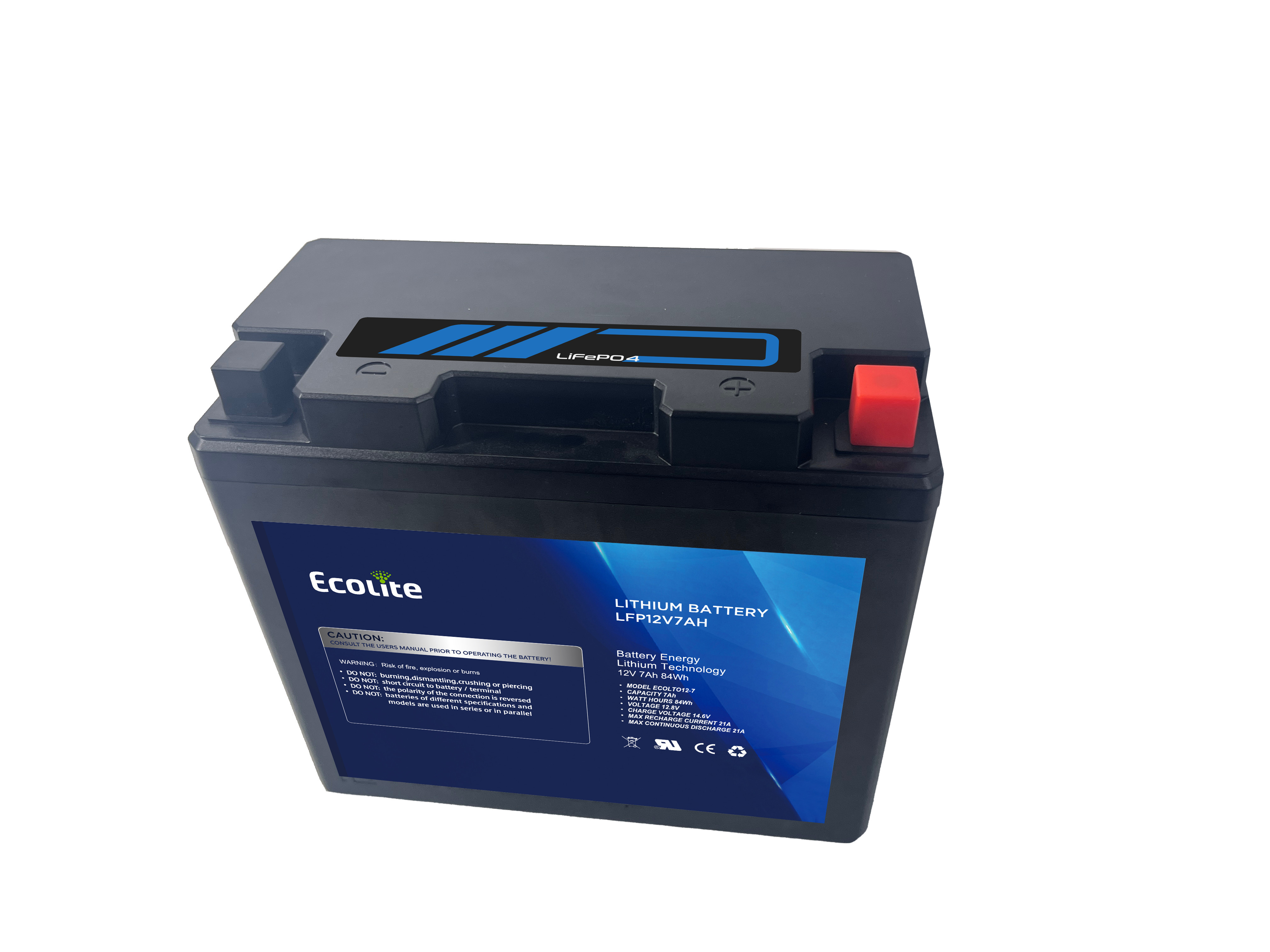

12.8V LFP Battery Pack For Motorcycle Starting Power Supply

Name: 12.8V LFP Battery Pack For Motorcycle Starting Power Supply
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: Spake cube 12.8V
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: Spake cube 12.8V

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Motorcycle Starting Power Supply Battery, 12.8V Motorcycle Battery, LFP Motorcycle Battery


Nominal Voltage:	12.8V	Charging Voltage(V):	14.6V
Chemistry:	Lithium Iron Phosphate(LiFePO4)	Operating Temperature:	-20℃ To 60℃
Charging Temperature:	-10℃ To 50℃	Storage Temperature:	-20 ℃ To 60℃
Housing Protection:	IP65 Waterproof Rated

Nominal Voltage:	12.8V
Charging Voltage(V):	14.6V
Chemistry:	Lithium Iron Phosphate(LiFePO4)
Operating Temperature:	-20℃ To 60℃
Charging Temperature:	-10℃ To 50℃
Storage Temperature:	-20 ℃ To 60℃
Housing Protection:	IP65 Waterproof Rated

Description

12.8V LFP Battery Pack For Motorcycle Starting Power Supply

Motorcycle battery LFP pack 12.8V Battery Pack For Motorcycle Starting Power Supply

Product Features:

①Lightweight:Only one-third to quater of that of lead-acid batteries.

②High safety:using lithium iron phosphate batteries.

③BMS has five different protection functions:overcharge,overdischarge,overcurrent,short circuit,and high temperature.

④High battery cycle life.

⑤Low self discharge rate.

⑥UL94-0 shell flame retardant.

Battery Data Sheet

Technical parameters
Model	SC02S-LFP	SC03-LFP	SC04-LFP	SC05-LFP	SC07-LFP
Chemistry	Lithium Iron Phosphate(LiFePO4)
Nominal Voltage(V)	12.8V
Amp-hours	2Ah	3Ah	4Ah	5Ah	7Ah
Watt-hours(Wh)	25.6Wh	38.4Wh	51.2Wh	64Wh	89.8Wh
Starting Current	250A	500A	500A	600A	750A
Continuous Current	20A	30A	40A	50A	70A
Charging Voltage(V)	14.6V
Charging Current(A)	6A(MAX)	9A(MAX)	12A(MAX)	15A(MAX)	21A(MAX)
Operating Temperature	-20℃ to 60℃
Charging Temperature	-10℃ to 50℃
Storage Temperature	-20℃ to 60℃
Housing Protection	IP65 waterproof rated
Dimension(mm)	113×49×85mm	150×65×93mm	150×65×93mm	135×95×133mm	177×87×154mm
Weight(kg)	0.5	0.65	0.75	1	1.3

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
