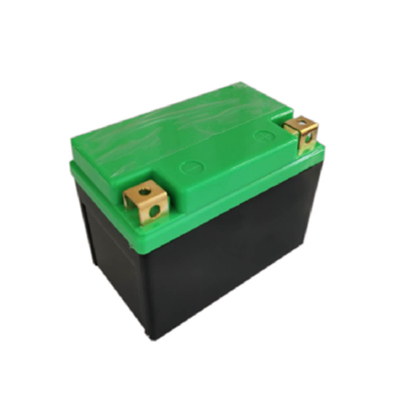

12.8V 2.2Ah LFP Battery Pack For Motorcycle Starting Power Supply

Name: 12.8V 2.2Ah LFP Battery Pack For Motorcycle Starting Power Supply
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12.8V 2.2Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12.8V 2.2Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      LFP Battery Pack For Motorcycle, 2.2Ah Battery Pack For Motorcycle, 12.8V LFP Battery Pack


Nominal Voltage:	12.8V	Rated Capacity:	2.2Ah
Energy:	338Wh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4S/1P
Dimension（L×W×H）:	1126988mm	Weight:	0.5kg

Nominal Voltage:	12.8V
Rated Capacity:	2.2Ah
Energy:	338Wh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4S/1P
Dimension（L×W×H）:	1126988mm
Weight:	0.5kg

Description

12.8V 2.2Ah LFP Battery Pack For Motorcycle Starting Power Supply

Motorcycle LFP battery pack 12.8V 2.2Ah

LFP battery pack

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	2.2Ah
Energy	338Wh
Resistance	≤2.5mΩ
Efficiency	0.99
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/1P
Mechanical Parameters
Dimension(L×W×H)	1126988mm
Dimension(L×W×H)	4.42.713.46"
Weight	0.5kg
Terminal Type	N1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/
Discharge Parameters
Continuous Discharge Current	2.2A
Pulse Discharge Current	154(70C)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.4V
Recommended Float Voltage	13.4V
Recommended Charge Current	2.2A
Maximum Charge Current	8.8A
BMS Charge Cut-off Voltage	14.4V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
