Ecolite 50.4V 38.4Ah Lithium Nickel Manganese Cobalt Oxide Battery Pack For Snowmobile

Product Details

Place of Origin: China

Brand Name: Ecolite/ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Payment & Shipping Terms

Minimum Order Quantity: 50Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Nickel Manganese Cobalt Oxide Battery Pack, Snowmobile Battery


Chemical Formula:	Lithium Iron	Nominal Voltage:	50.4V
Rated Capacity:	38.4Ah	Energy:	1935Wh
Resistance:	≤65mΩ	Efficiency:	0.99
Cycle Life:	＞800cycles@1C,70% DOD

Chemical Formula:	Lithium Iron
Nominal Voltage:	50.4V
Rated Capacity:	38.4Ah
Energy:	1935Wh
Resistance:	≤65mΩ
Efficiency:	0.99
Cycle Life:	＞800cycles@1C,70% DOD

Description

Ecolite 50.4V 38.4Ah Lithium Nickel Manganese Cobalt Oxide Battery Pack For Snowmobile

Ecolite 50.4V 38.4Ah High Density Lithium iron Battery Pack For Snowmobile Integrate BMS

Features

The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Performance

Long Cycle Life＞800cycles@70%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

Lithium (NMC) E50.4-38.4(50.4V38.4Ah)

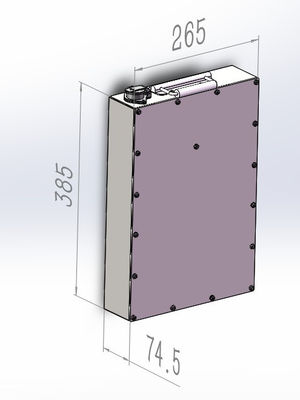

Electrical Parameters		Mechanical Parameters
Nominal Voltage	50.4V	Dimension(L×W×H)	265x74.5x385mm
Rated Capacity	38.4Ah	Dimension(L×W×H)	10.43x2.93x15.16"
Energy	1935Wh	Weight	12kg
Resistance	≤ 65mΩ	Terminal Type	WY28
Efficiency	0.99	Battery Housing	Sheet Metal
Cycle Life	>800cycles,@1C,70% DOD	Housing Protection	IP65
Self Discharge	2% per Month	Cell Type-Chemistry	NMC
Max.Modules in Series/Parallel	12P/14S	Communication	CAN
Discharge Parameters		Charge Parameters
Continuous Discharge Current	35A	Charge Method	CC-CV
Pulse Discharge Current	55	Charge Voltage	58.8V
Recommended Volt. Disconnect	38.5V	Recommended Float Voltage	57.4V
BMS Discharge Cut-off Voltage	35V	Recommended Charge Current	18.5A
Reconnect Voltage	44.8V	Maximum Charge Current	10A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	59V
Temperature Parameters
Discharge Temperature	-30 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-30 to 60℃
BMS High Temperature Cut-off	80 ℃
