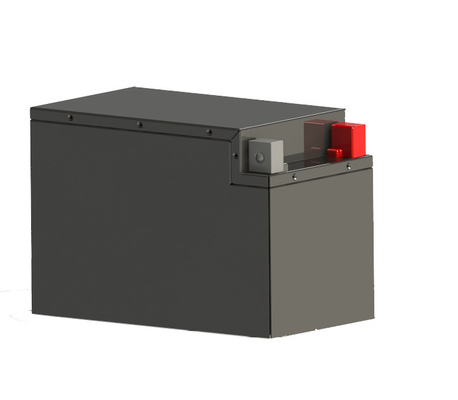

Lithium 25.6V 100Ah Motorcycle Battery Rechargeable Electric Two Wheeler And Tricycle Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Rechargeable Motorcycle Battery, 100Ah Motorcycle Battery, Electric Two Wheeler Motorcycle Battery


Rated Voltage:	25.6V	Rated Capacity:	100Ah
Energy:	2560Wh	Resistance:	≤30mΩ
Cycle Life:	＞4000cycles@1C，80%DOD	Dimension（L×W×H）:	345×195×242mm
Battery Weight:	24kg	Terminal Type:	M8

Rated Voltage:	25.6V
Rated Capacity:	100Ah
Energy:	2560Wh
Resistance:	≤30mΩ
Cycle Life:	＞4000cycles@1C，80%DOD
Dimension（L×W×H）:	345×195×242mm
Battery Weight:	24kg
Terminal Type:	M8

Description

Lithium 25.6V 100Ah Motorcycle Battery Rechargeable Electric Two Wheeler And Tricycle Battery

Ecolite Lithium Iron Battery For Electric Two-Wheelers And Tricycle 25.6V 100Ah

PRODUCTS FEATURES	Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology. Integrated Battery Management System(BMS).
PERFORMANCE	Long Cycle Life ＞ 4000cycles@80%DOD.
	High Density,High Discharge Current,High Temperature Range. Low Weight,Free Maintenance. Fast Charging.
	Environment Friendly.

Lithium 25.6V 100Ah Motorcycle Battery Rechargeable Electric Two Wheeler And Tricycle Battery 0

LFP24- 100 (25.6V100Ah)
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	25.6V	Dimension(L×W×H)	345x195x242mm
Rated Capacity	100Ah		13.58x 7.68x 9.53"
Energy	2560Wh	Weight	24kg
Resistance	≤30mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	SPCC
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP32
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	8S/1P	SOC Display(Optional)	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	28.4~29.2V
Recommended Volt. Disconnect	20V	Recommended Float Voltage	27V
BMS Discharge Cut-off Voltage	17.6V	Recommended Charge Current	50A
Reconnect Voltage	21.6V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	30V

Temperature Parameters
Discharge Temperature		-20 to 60 ℃
Charge Temperature		0 to 60 ℃
Storage Temperature		-10 to 35 ℃
BMS High Temperature Cut-off		65℃

Lithium 25.6V 100Ah Motorcycle Battery Rechargeable Electric Two Wheeler And Tricycle Battery 5

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
