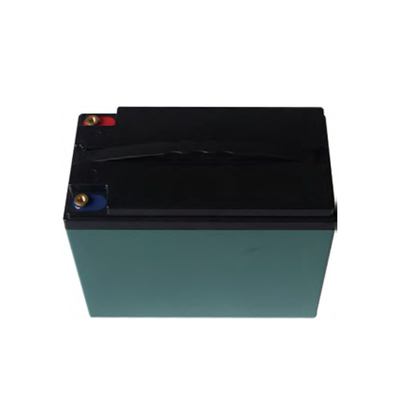

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      12.8v Lifepo4 Battery Pack, 41.8Ah Lifepo4 Battery Pack, 12.8v LFP Lifepo4 Battery


Nominal Voltage:	12.8V	Rated Capacity:	41.8Ah
Energy:	535Wh	Resistance:	≤65mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	4S/11P
Weight:	4.4kg	Terminal Type:	M6
Battery Housing:	ABS, LG121	Housing Protection:	IP56
Cell Type-Chemistry:	LiFePO4 Cell	SOC Display(Optional):	/

Nominal Voltage:	12.8V
Rated Capacity:	41.8Ah
Energy:	535Wh
Resistance:	≤65mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	4S/11P
Weight:	4.4kg
Terminal Type:	M6
Battery Housing:	ABS, LG121
Housing Protection:	IP56
Cell Type-Chemistry:	LiFePO4 Cell
SOC Display(Optional):	/

Description

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS

High Discharge Current LFP Lifepo4 Battery Pack Module 12.8v 40Ah With Integrated BMS

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS 0

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS 1

Electrical Parameters

Mechanical Parameters

Nominal Voltage

12.8V

Dimension(L×W×H)

233x120x175mm

Rated Capacity

41.8Ah

9.17x4.72x6.89"

Energy

535Wh

Weight

4.4kg

Resistance

≤65mΩ

Terminal Type

Efficiency

0.99

Battery Housing

ABS, LG121

Cycle Life

>4000cycles @1C,80% DOD

Housing Protection

IP56

Self Discharge

2% per Month

Cell Type-Chemistry

LiFePO4 Cell

Max. Modules in Series/Parallel

4S/11P

SOC Display(Optional)

Discharge Parameters

Charge Parameters

Continuous Discharge Current

40A

Charge Method

CC-CV

Pulse Discharge Current( 脉冲 )

50A (<3min)

Charge Voltage

14.4~14.8V

Recommended Volt. Disconnect

10V

Recommended Float Voltage

13.8V

BMS Discharge Cut-off Voltage

8.4V

Recommended Charge Current

20A

Reconnect Voltage

10.4V

Maximum Charge Current

40A

Short Circuit Protection

300-800us

BMS Charge Cut-off Voltage

15V

Temperature Parameters

Discharge Temperature

-20 to 60 ℃ (-4 to 140°F)

Charge Temperature

0 to 60 ℃ (32 to 140°F)

Storage Temperature

-40 to 70 ℃ (-40 to 158°F)

BMS High Temperature Cut-off

78 ℃ (172.4°F)

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS 2

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS 4

12.8v 41.8Ah LFP Lifepo4 Battery Pack High Discharge Current With Integrated BMS 6

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
