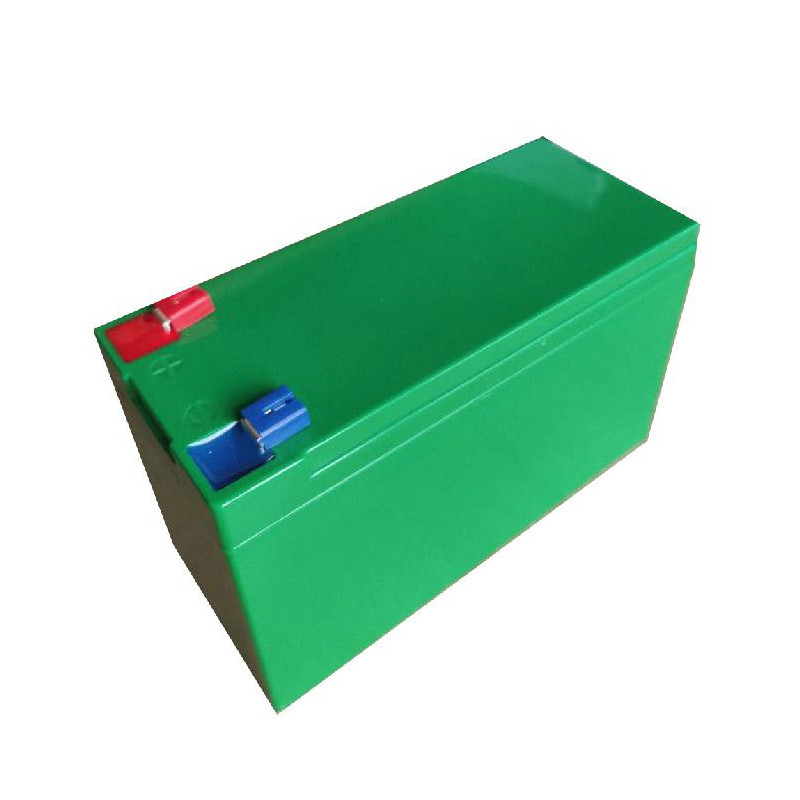

Name: Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12V 5Ah
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Nominal Voltage: 12V

Rated Capacity: 5Ah

Energy: 50Wh

Resistance: ≤65mΩ

Efficiency: 0.99

Cycle Life: >2000cycles @1C,80% DOD

Self Discharge: 2% Per Month

Max. Modules In Series/Parallel: 4S/3P

Highlight:

Rechargable LTO Lithium Ion Battery

12v LTO Lithium Ion Battery

12v 5ah lithium ion Battery

Basic Infomation

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12V 5Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Gallery

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System

Product Description

Rechargable Battery 12v 5ah Li-Ion LTO Pack For Video Monitoring System

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System 0

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System 1

Electrical Parameters
Nominal Voltage	12V
Rated Capacity	5Ah
Energy	50Wh
Resistance	≤65mΩ
Efficiency	0.99
Cycle Life	>2000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/3P

Mechanical Parameters
Dimension(L×W×H)	151×65×94mm
Dimension(L×W×H)	5.94×2.56×3.7in
Weight	1kg
Terminal Type	T1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LTO Cell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	25A
Pulse Discharge Current	50A(<1S)
Recommended Volt. Disconnect	8.5V
BMS Discharge Cut-off Voltage	8.5V
Reconnect Voltage	9V
Short Circuit Protection	250-500us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.75V
Recommended Charge Current	2A
Maximum Charge Current	12A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-40 to 75 ℃
Charge Temperature	-40 to 75 ℃
Storage Temperature	-40 to 75 ℃
BMS High Temperature Cut-off	78 ℃

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System 2

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System 5

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See Ecolite User's Manual for Proper Operation.

Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System 7

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
