Features

Specifications

Nominal Voltage: 12V

Rated Capacity: 4Ah

Energy: 48Wh

Resistance: ≤65mΩ

Efficiency: 0.99

Cycle Life: >2000cycles @1C,80% DOD

Self Discharge: 2% Per Month

Max. Modules In Series/Parallel: 4S/3P

Weight: 0.73kg

Terminal Type: T1

Battery Housing: ABS

Housing Protection: IP56

Cell Type-Chemistry: LTO Cell

SOC Display(Optional): /

Highlight:

Deep Cycle Li Ion Polymer Battery

Lto Li Ion Polymer Battery

12v 4Ah lithium ion Battery

Basic Infomation

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12v 4Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Gallery

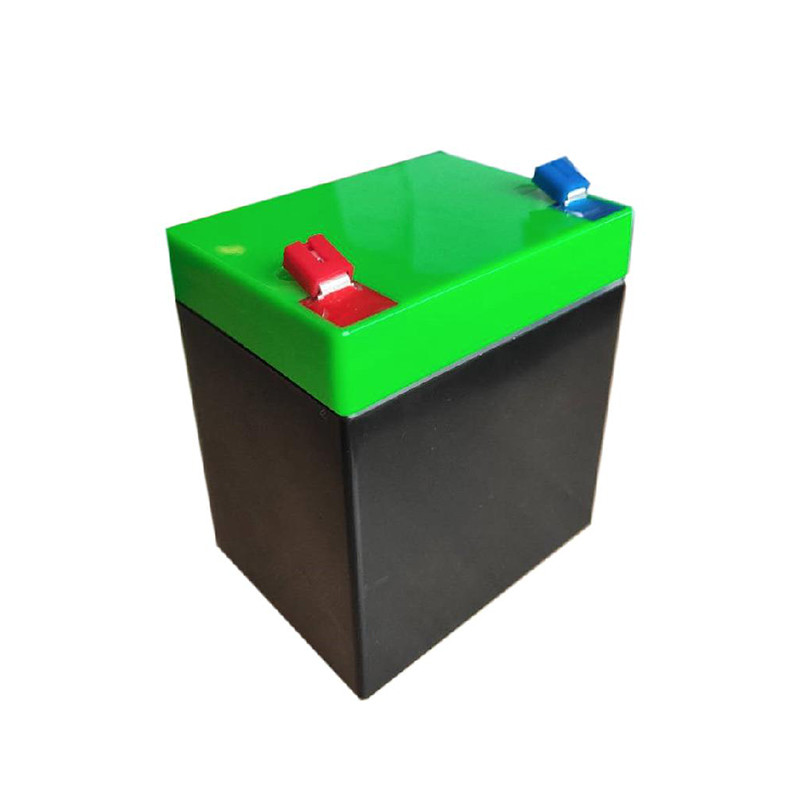

Deep Cycle 12v 4Ah Li Ion Polymer Battery Lto Lithium Battery Pack

Product Description

12v 4Ah Deep Cycle Li-Ion Polymer Lto Lithium Battery Pack

Deep cycle battery, Deep Cycle Solar Batteries for Sale, Interstate Marine Deep-Cycle Batteries, Deep-Cycle RV Battery Buying Guide,

Electrical Parameters
Nominal Voltage	12V
Rated Capacity	4Ah
Energy	48Wh
Resistance	≤65mΩ
Efficiency	0.99
Cycle Life	>2000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/3P

Mechanical Parameters
Dimension(L×W×H)	90x 70x 101mm
Dimension(L×W×H)	3.54 x 2.76x 3.98in
Weight	0.73kg
Terminal Type	T1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LTO Cell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	20A
Pulse Discharge Current	40A(<30S)
Recommended Volt. Disconnect	8.5V
BMS Discharge Cut-off Voltage	8.5V
Reconnect Voltage	9V
Short Circuit Protection	250-500us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.75V
Recommended Charge Current	2A
Maximum Charge Current	12A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-40 to 75 ℃
Charge Temperature	-40 to 75 ℃
Storage Temperature	-40 to 75 ℃
BMS High Temperature Cut-off	78 ℃

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See User's Manual for Proper Operation.

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
