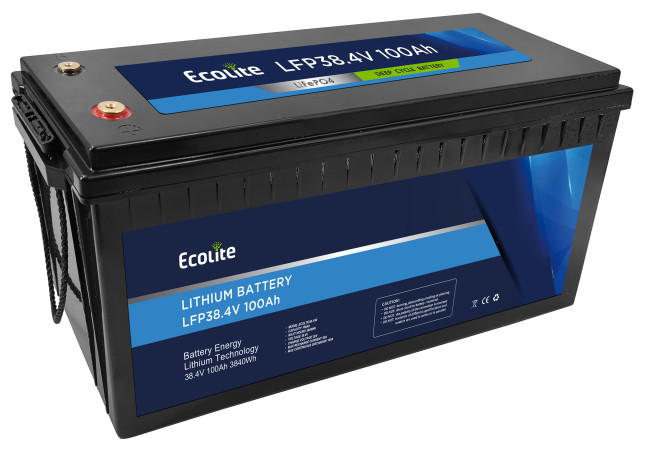

38.4V 100Ah LiFePO4 Lithium Battery Bluetooth Communication

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              100Ah LiFePO4 Lithium Battery, 38.4V LiFePO4 Lithium Battery


Nominal Voltage:	38.4V	Rated Capacity:	100Ah
Energy:	3840Wh	Resistance:	≤60mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C.80% DOD
Self Discharge:	<5% Per Month	Max. Modules In Series/Parallel:	12S/1P

Nominal Voltage:	38.4V
Rated Capacity:	100Ah
Energy:	3840Wh
Resistance:	≤60mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C.80% DOD
Self Discharge:	<5% Per Month
Max. Modules In Series/Parallel:	12S/1P

Description

38.4V 100Ah LiFePO4 Lithium Battery Bluetooth Communication

Ecolite LFP36-100(38.4V 100Ah) LiFePO4 Lithium Battery Bluetooth

Electrical Parameters

Electrical Parameters		Mechanical Parameters
Nominal Voltage	38.4V	Dimension(WxDxH)	532x207x215mm
Rated Capacity	100Ah	Dimension(WxDxH)	20.94x 8.15x8.46
Energy	3840Wh	Weight	27kg
Resistance	≤60mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C.80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	12S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A(<1S)	Charge Voltage	42.6~43.8V
Recommended Volt. Disconnect	30V	Recommended Float Voltage	39.9~40.2V@100%
BMS Discharge Cut-off Voltage	30V	Recommended Charge Current	50A
Reconnect Voltage	32.4V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	44.4V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃
