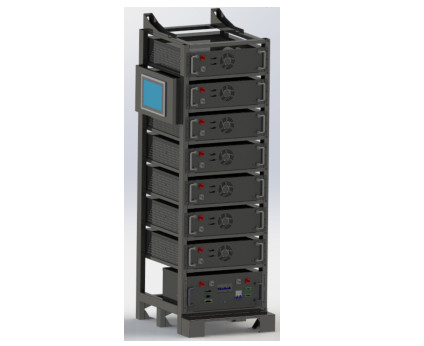

High Voltage Solar Battery Energy Storage System 35Kwh 51Kwh 100A Customizable

Name: High Voltage Solar Battery Energy Storage System 35Kwh 51Kwh 100A Customizable
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 35Kwh 51KWh
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE RoHS

Model Number: 35Kwh 51KWh

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Solar Battery Energy Storage System, Battery Energy Storage System 35Kwh, High Voltage Energy Storage 51Kwh


Nominal Voltage:	358.4V	Rated Capacity:	100Ah
Energy:	35.85KWh	Resistance (Single Battery Box):	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @1c,80% DOD
Self Discharge:	<5% Per Month	Cell In Series/Parallel:	112S/1P
Dimension(WxHxD):	20x 64.72x 21.57'	Weight:	About 400kg
TerminalType:	C10-730187	Battery Housing:	SPCC
Housing Protection:	IP20	Cell Type-chemistry:	LiFePO4 Cell
Communication:	CAN

Nominal Voltage:	358.4V
Rated Capacity:	100Ah
Energy:	35.85KWh
Resistance (Single Battery Box):	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @1c,80% DOD
Self Discharge:	<5% Per Month
Cell In Series/Parallel:	112S/1P
Dimension(WxHxD):	20x 64.72x 21.57'
Weight:	About 400kg
TerminalType:	C10-730187
Battery Housing:	SPCC
Housing Protection:	IP20
Cell Type-chemistry:	LiFePO4 Cell
Communication:	CAN

Description

High Voltage Solar Battery Energy Storage System 35Kwh 51Kwh 100A Customizable

Solar Battery Energy Storage System 35Kwh 51Kwh 100A high voltage for Customizable and Scalable Energy Storage Solutions

BATTERY DATA SHEET

Electrical Parameters
Nominal Voltage	358.4V
Rated capacity	100Ah
Energy	35.85KWh
Resistance (Single battery box)	≤30mΩ
Efficiency	≥0.98
Cycle Life	>4000cycles @1c,80% DOD
Self Discharge	<5% per Month
Cell in Series/Parallel	112S/1P

Physical Parameters
Dimension(WxHxD)	508x1644x548mm
Dimension(WxHxD)	20x64.72x21.57
Weight	About 400kg
TerminalType	C10-730187
Battery Housing	SPCC
Housing Protection	IP20
Cell Type-chemistry	LiFePO4 Cell
Communication	CAN

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	150A(<1S)
Recommended Volt.Disconnect	280V
BMS Discharge Cut-off Voltage	280V
Reconnect Voltage	302.4V

Charge Parameters
Charge Method	CC-CV
Charge Voltage	403.2V
Recommended Charge Current	50A
Maximum Charge current	100A
BMS Charge cut-off Voltage	408.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60 ℃
Charge Temperature	0 ℃to 55 ℃
Storage Temperature	-20℃ to 60 ℃
BMS High Temperature Cut-off	65℃
