Home /Products/Battery Energy Storage System/LTO Energy Storage Battery 33.6V 30Ah For Miniature Inverter

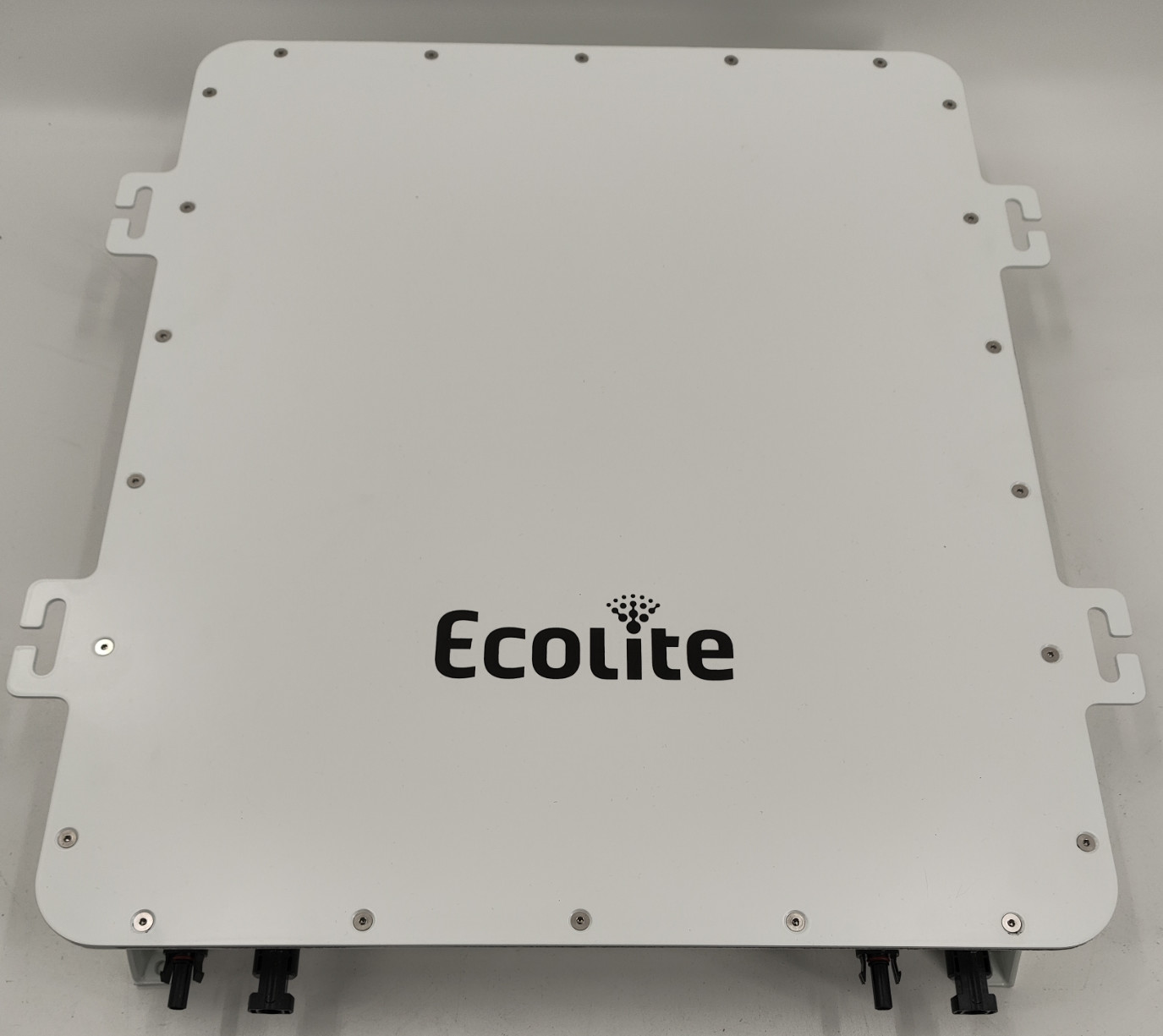

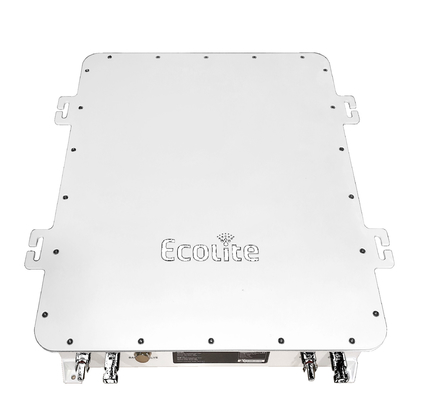

LTO Energy Storage Battery 33.6V 30Ah For Miniature Inverter

5000
MOQ
Inquiry
Price
LTO Energy Storage Battery 33.6V 30Ah For Miniature Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 33.6V
Rated Capacity: 30Ah
Energy: 1008Wh
Resistance: ≤65mQ
Efficiency: ≥0.98
Cycle Life（25℃，1C/1C）: >10000cycles @1C,80% DOD
Self Discharge: <5% Per Month
Cell In Series/Parallel: 14S/20P
Highlight:

LTO Energy Storage Battery

,

Energy Storage Battery 33.6V
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

Energy Storage Battery LTO 33.6V 30Ah



PERFORMANCE

LTO-1KWh is an energy storage battery for a miniature inverter, which can store excess photovoltaic energy during the day for use at night, saving energy costs for households. Due to the use of LTO cells, it can achieve a cycle life of over 10000 times and also support operation in the temperature range of-30 Cto+60 C. The battery is equipped with a built-in BMS, which supports protection functions such as charging overvoltage, discharging Undervoltage, charging and discharging overcurrent, charging and discharging high temperature, and charging and discharging low temperature.



Specifications



Electrical Parameters
Nominal Voltage 33.6V
Rated Capacity 30Ah
Energy 1008Wh
Resistance ≤65mΩ
Efficiency ≥0.98
Cycle Life(25℃,1C/1C) >10000cycles @80% DOD
Self Discharge <5% per Month
Cell in Series/Parallel 14S/20P



Mechanical Parameters

Dimension(WxDxH)

Including installation feet

 515x540x85mm
20.28x21.26x3.35’‘
Product Weight 25.5kg
Terminal Type Reference connector parameters
Battery Housing Aluminum
Housing Protection IP67
Cell Type-Chemistry LTO
Communication /



Discharge Parameters
Continuous Discharge Current 30A
Pulse Discharge Current 45A(<1S)
Recommended Volt. Disconnect 21V
BMS Discharge Cut-off Voltage 21V
Reconnect Voltage 23.8V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 38.5~39.2V
Recommended Float Voltage 37.8~38.5V@100%
Recommended Charge Current 15A
Maximum Charge Current 30A
BMS Charge Cut-off Voltage 39.8V



Temperature Parameters
Discharge Temperature -30℃ to 60℃
Charge Temperature -30℃ to 60℃
Storage Temperature -30℃ to 60℃
BMS High Temperature Cut-off 65℃



connector
MC4 (PV) DC33V~DC150V,Max30A,1000W
MC4 (OUT) DC21V~DC39.2V,Max30A,1000W
