Features

Specifications

Maximum Power (P Max): 200

Maximum Power Voltage (V Mp): 34.2

Maximum Power Current (l Mp): 6.1

Open-circuit Voltage (V Oc): 41.6

Short-circuit Current (l Sc): 6.37

Module Efficiency(%): 16.9

Operating Temperature: -40°C To 85°C

Weight: 2.6kg/5.0kg

Frame: Frameless

Highlight:

Solar Panel Battery 34.2V

Street Light Solar Panel Battery

34.2V Solar Street Light Battery

Basic Infomation

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Gallery

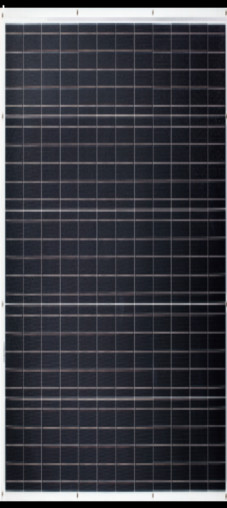

Ecolite Solar Panel Battery 34.2V Solar Street Light Battery

Product Description

Ecolite Solar Street Light Battery
FEATURES

Ecolite is an ultra-flexible, ultra-thin solar panel made from composite materials that is 70% lighter than traditional solar panels, significantly reducing transportation and instalation costs. The thermal properties of solar panels ensure their reliability and efficiency under different temperature conditions.These panels are designed for optimal operation over a wide operating temperature range of -40~85°C.The engineered thermal properties of solar panels contribute to their long-lasting performance and make them ideal for areas with different climate patterns.

Products	ELECTRICAL CHARACTERISTICS		MECHANICAL CHARACTERISTICS
ECO 200M	STC	Configuration
	Maximum Power (P max)	200	Solar Cell	Monocrystalline silicon(182mm half cell)
	Maximum Power Voltage (V mp)	34.2	Solar Cell	Monocrystalline silicon(182mm half cell)
	Maximum Power Current (l mp)	6.1	No. of Cells	60(6x10)
	Open-circuit Voltage (V oc)	41.6	Module Dimensions	1159x1026x2mm
	Short-circuit Current (l sc)	6.37	Weight	2.6kg
	Module Efficiency(%)	16.9	Backsheet	Cell side Black
	Operating Temperature	-40°C to 85°C	Frame	Frameless
	Maximum System Voltage	1500 V DC (IEC)	J-box	IP 68 rated
	Maximum Series Fuse Rating	25A	Output Cables	Photovoltaic technology cable4.0mm 2.(+)450/ (-)450mm
	Application Class	Class A	Output Cables	Photovoltaic technology cable4.0mm 2.(+)450/ (-)450mm
	Power Tolerance	0/+5 W	Connector	MC4 compatible
	NMOT	Configuration	PACKAGING CONFIGURATION
	Maximum Power (P max)	162.3	PACKAGING CONFIGURATION
	Maximum Power Voltage(Vmp)	34.2		20'GP	40'HC
	Maximum Power Current (l mp)	4.75	Module per pallet	66	66
	Open-circuit Voltage (V oc)	41.7	Pieces per container	528	2112
1159*1026mm	Short-circuit Current (l sc)	5.09

Products	ELECTRICAL CHARACTERISTICS		MECHANICAL CHARACTERISTICS
ECO 300M	STC	Configuration
	Maximum Power (P max)	305	Solar Cell	Monocrystalline silicon(158.75mm)
	Maximum Power Voltage (V mp)	33	Solar Cell	Monocrystalline silicon(158.75mm)
	Maximum Power Current (l mp)	9.25	No. of Cells	60(5x12)
	Open-circuit Voltage (V oc)	40.3	Module Dimensions	2009x885x2mm
	Short-circuit Current (l sc)	9.74	Weight	5.0kg
	Module Efficiency (%)	17.2	Backsheet	White
	Operating Temperature	-40°C to 85°C	Frame	Frameless
	Maximum System Voltage	1000 V DC (IEC)	J-box	IP 68 rated
	Maximum Series Fuse Rating	20A	Output Cables	Photovoltaic technology cable4.0mm 2,(+)450/(-)450mm
	Application Class	Class A	Output Cables	Photovoltaic technology cable4.0mm 2,(+)450/(-)450mm
	Power Tolerance	0/+5 W	Connector	MC4 compatible
	NMOT	Configuration	PACKAGING CONFIGURATION
	Maximum Power (P max)	229	PACKAGING CONFIGURATION
	Maximum Power Voltage (V mp)	30.5		20'GP	40'HC
	Maximum Power Current (l mp)	7.51	Module per pallet	66+10	66+11
	Open-circuit Voltage (V oc)	37.4	Pieces per container	710	1617
2009x885mm	Short-circuit Current (l sc)	7.96
