High Density 12V RV Lithium Battery 110Ah High Discharge Current

Product Details

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              12V RV Lithium Battery, RV Lithium Battery 110Ah, 12V High Density Lithium Battery


Nominal Voltage:	12.8V	Rated Capacity:	110Ah
Energy:	1408Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C，80% DOD
Self Discharge:	<5% Per Month	Max.Modules In S In Moderies/Parallel:	4S/1P

Nominal Voltage:	12.8V
Rated Capacity:	110Ah
Energy:	1408Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C，80% DOD
Self Discharge:	<5% Per Month
Max.Modules In S In Moderies/Parallel:	4S/1P

Description

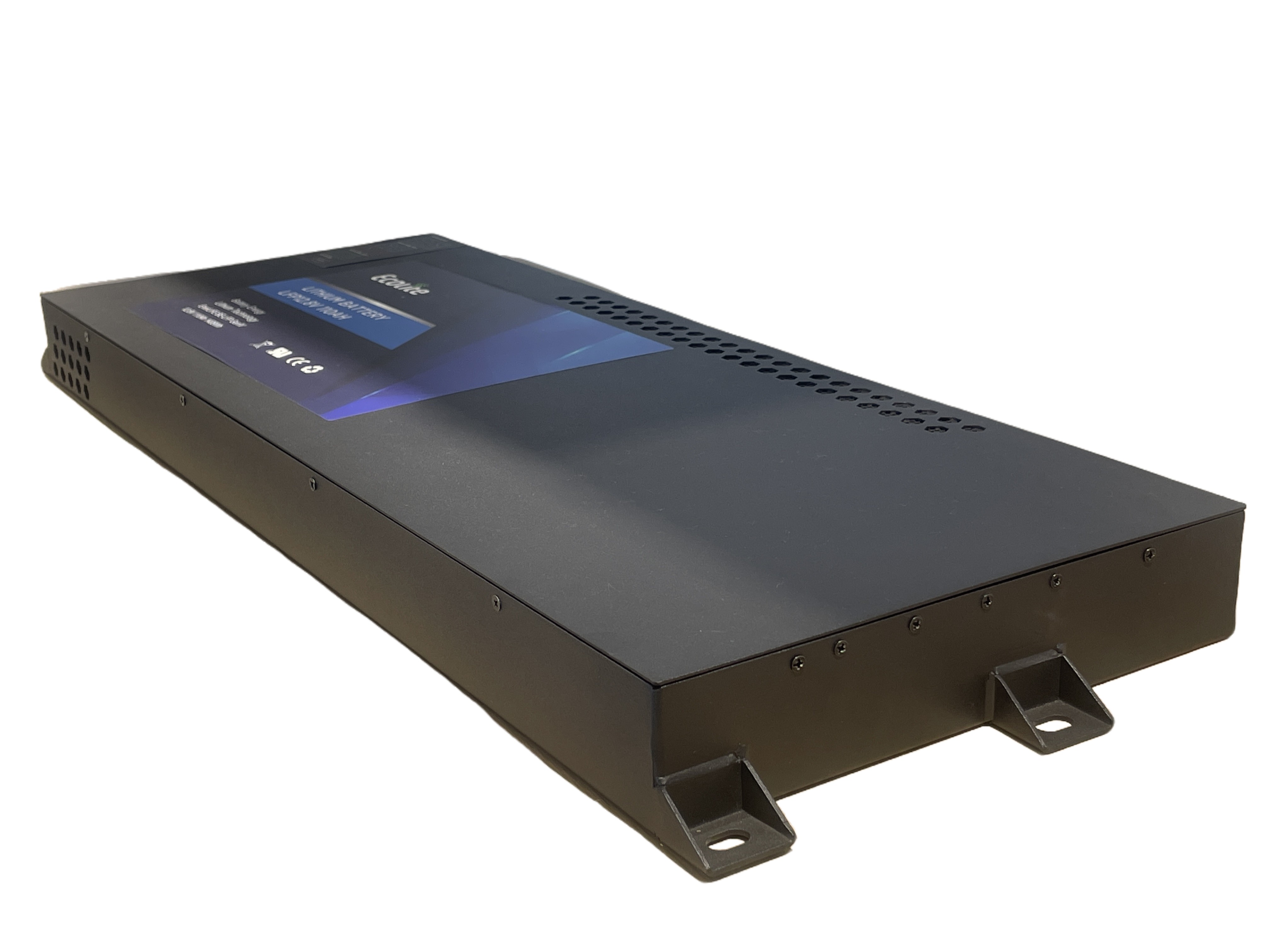

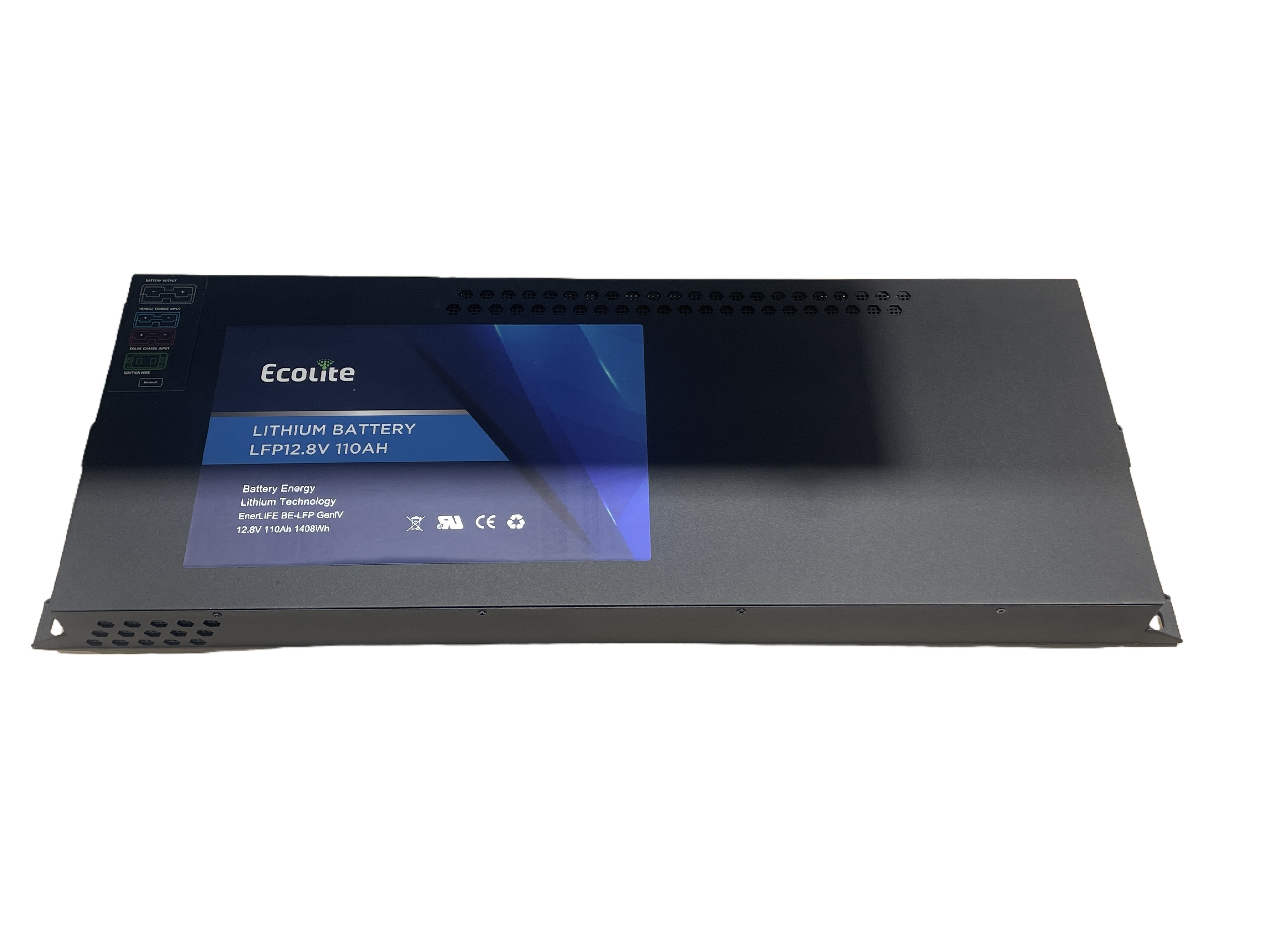

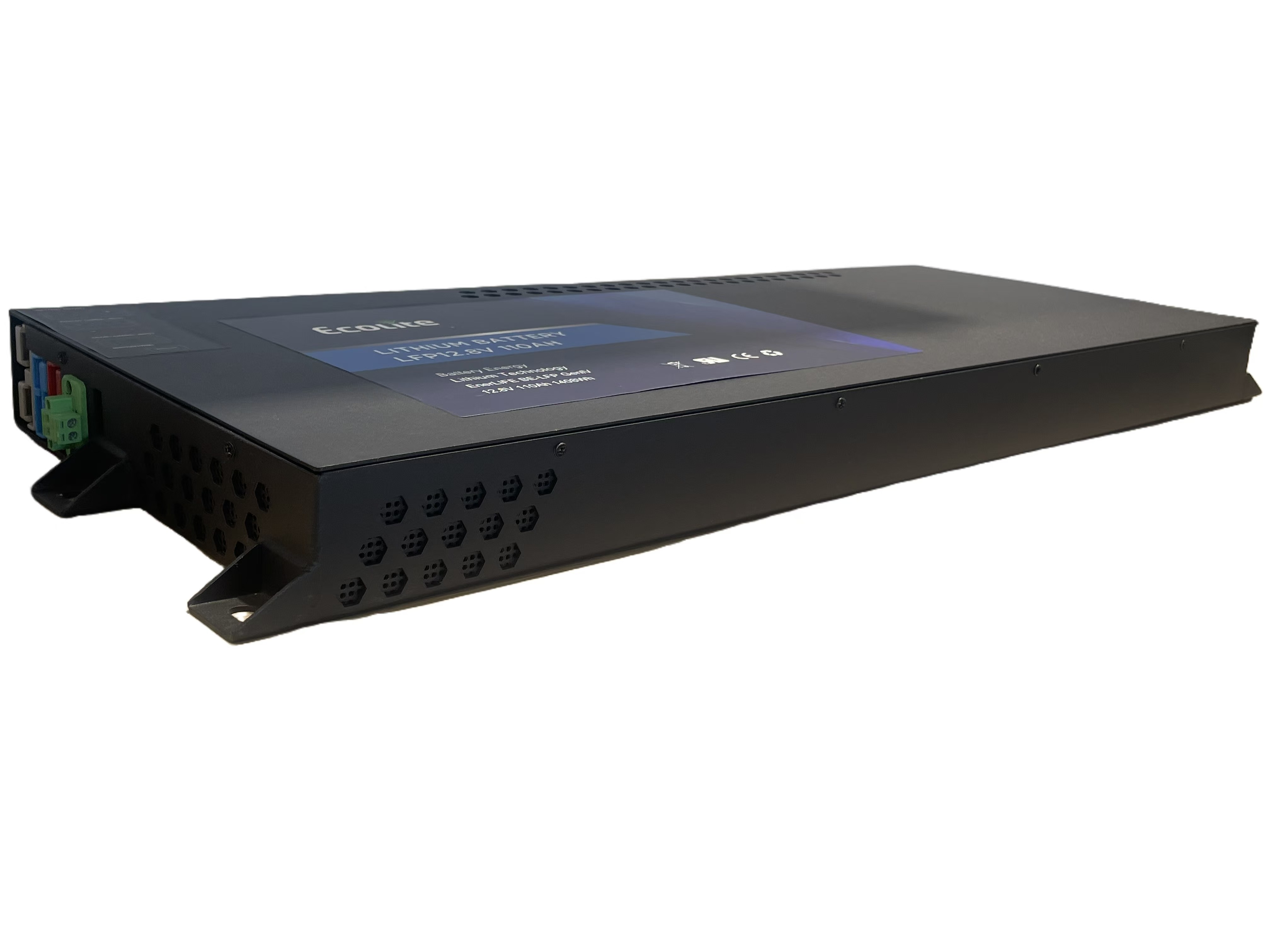

High Density 12V RV Lithium Battery 110Ah High Discharge Current

Ecolite High Density 12V RV Lithium Battery for High Discharge Current

High Density 12V RV Lithium Battery 110Ah High Discharge Current 0

FEATURES

Lithium lron Phosphate(LiFePO4)

The Safest Lithium Technology

Integrated Battery Management System(BMS)

PERFORMANCE

Long Cycle Life>4000cycles@80%DOD

High Density,High Discharge Current,High Temperature Range
Low Weight,Free Maintenance

Fast Charging

Environment Friendly

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	110Ah
Energy	1408Wh
Resistance	≤30mΩ
Efficiency	≥0.98
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	<5% per Month
Max.Modules in Series/Parallel	4S/1P

MechanicalParameters
Dimension(WxDxH)	685x230x50mm
Dimension(WxDxH)	26.97x9.06x1.97
Weight	14.8kg
Terminal Type	50/120A Anderson
Battery Housing	Cold rolled steel sheet
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	320A(<320mS)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.5~13.8V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
