12.8V 110Ah Lithium Iron Phosphate LFP Battery 12V RV Fast Charging Battery Pack

Product Details

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      12.8V Lithium Iron Phosphate LFP Battery, 110Ah Lithium Iron Phosphate LFP Battery, 12V RV Deep Cycle Battery


Nominal Voltage:	12.8V	Rated Capacity:	110Ah
Rated Energy:	1408Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C，80% DOD
Self Discharge:	<5% Per Month	Max.Modules In S In Moderies/Parallel:	4S/1P
Dimension(W×D×H):	685x230x50mm	Weight:	14.8kg

Nominal Voltage:	12.8V
Rated Capacity:	110Ah
Rated Energy:	1408Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C，80% DOD
Self Discharge:	<5% Per Month
Max.Modules In S In Moderies/Parallel:	4S/1P
Dimension(W×D×H):	685x230x50mm
Weight:	14.8kg

Description

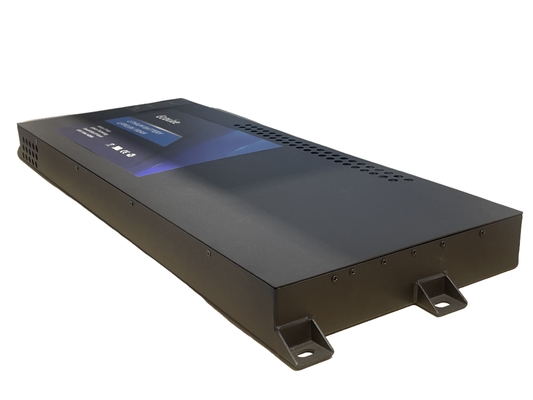

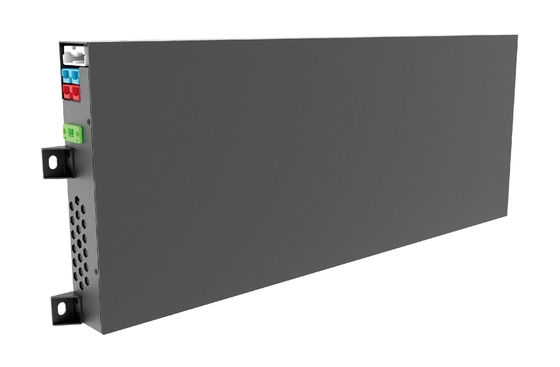

12.8V 110Ah Lithium Iron Phosphate LFP Battery 12V RV Fast Charging Battery Pack

Ecolite 12.8V 110Ah Lithium Lron Phosphate(LiFePO4) Integrated Deep Cycle RV 12V Battery Pack

12.8V 110Ah Lithium Iron Phosphate LFP Battery 12V RV Fast Charging Battery Pack 0

FEATURES

Lithium lron Phosphate(LiFePO4)

The Safest Lithium Technology

Integrated Battery Management System(BMS)

PERFORMANCE

Long Cycle Life>4000cycles@80%DOD

High Density,High Discharge Current,High Temperature Range
Low Weight,Free Maintenance

Fast Charging

Environment Friendly

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	110Ah
Energy	1408Wh
Resistance	≤30mΩ
Efficiency	≥0.98
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	<5% per Month
Max.Modules in Series/Parallel	4S/1P

MechanicalParameters
Dimension(WxDxH)	685x230x50mm
Dimension(WxDxH)	26.97x9.06x1.97
Weight	14.8kg
Terminal Type	50/120A Anderson
Battery Housing	Cold rolled steel sheet
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	320A(<320mS)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.5~13.8V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
