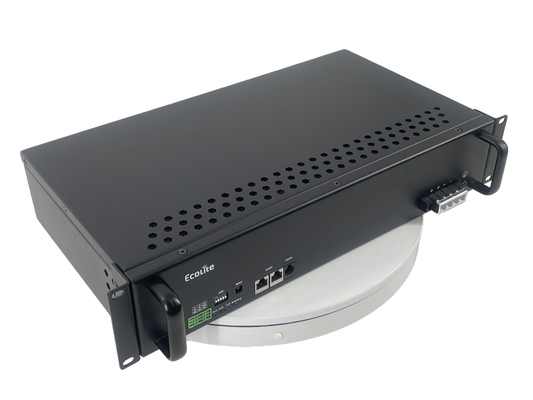

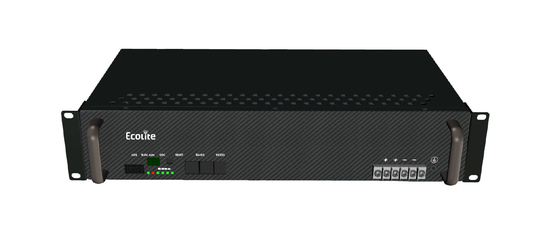

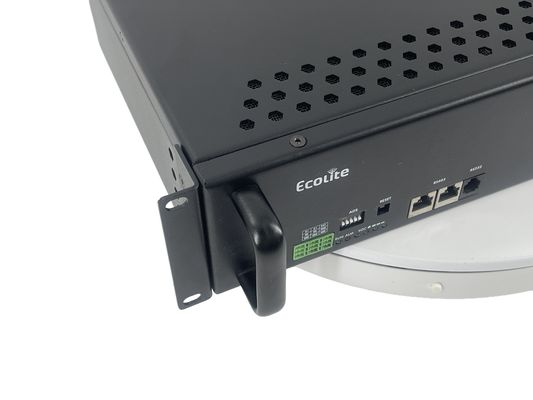

48V 20Ah LFP Battery Energy Storage System With Integrated BMS For Microgrids

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          48V Battery Energy Storage System, 20Ah Battery Energy Storage System, 48V Microgrid Battery Storage System


Nominal Voltage:	48V	Rated Capacity:	20Ah
Energy:	960Wh	Resistance:	≤30mΩ
Effciency:	≥0.98	Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	<5% Per Month	Max.Modules In Series,Parallel:	15S/3P
Dimension(W×D×H）):	442×245×88mm	Weight:	13kg
Communication:	RS485/RS232

Nominal Voltage:	48V
Rated Capacity:	20Ah
Energy:	960Wh
Resistance:	≤30mΩ
Effciency:	≥0.98
Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Max.Modules In Series,Parallel:	15S/3P
Dimension(W×D×H）):	442×245×88mm
Weight:	13kg
Communication:	RS485/RS232

Description

48V 20Ah LFP Battery Energy Storage System With Integrated BMS For Microgrids

48V20Ah LFP4820 Battery Energy Storage System with Integrated BMS for Microgrids

Specifications

Electrical Parameters
Nominal Voltage	48V
Rated Capacity	20Ah
Energy	960Wh
Resistance	≤30mΩ
Effciency	≥0.98
Cycle Life	>2000cycles @1C,80% DOD
Self Discharge	<5% per Month
Max.Modules in Series,Parallel	15S/3P

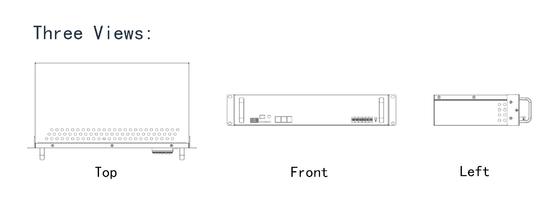

MechanicalParameters
Dimension(WxDxH)	442x245x88mm
Dimension(WxDxH)	17.4 x 9.64x3.464"
Weight	13kg
Terminal Type	M4
Battery Housing	SPCC
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4 Cell
Communication	RS485/RS232

Discharge Parameters
Continuous Discharge Current	20A
Pulse Discharge Current	25A(<10S)
Recommended Volt. Disconnect	37.5V
BMS Discharge Cut-off Voltage	37.5V
Reconnect Voltage	40.5V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	53.25~54.75V
Recommended Float Voltage	50.6~51.75V
Recommended Charge Current	10A
Maximum Charge Current	20A
BMS Charge Cut-off Voltage	54.75V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	60℃
