High Density 12V RV Lithium Battery 110Ah With Built-In Intelligent BMS

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  12V RV Lithium Battery, 110Ah RV Lithium Battery, High Density RV Lithium Battery


Nominal Voltage:	12.8V	Nominal Capacity:	110Ah
Energy:	1408Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life（25℃，0.5C/1C，100％DOD）:	>4000cycles ,Remaining Capacity＞80％
Self Discharge:	<5% Per Month	Communication:	Bluetooth
Terminal Type:	Reference Connector Parameters

Nominal Voltage:	12.8V
Nominal Capacity:	110Ah
Energy:	1408Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life（25℃，0.5C/1C，100％DOD）:	>4000cycles ,Remaining Capacity＞80％
Self Discharge:	<5% Per Month
Communication:	Bluetooth
Terminal Type:	Reference Connector Parameters

Description

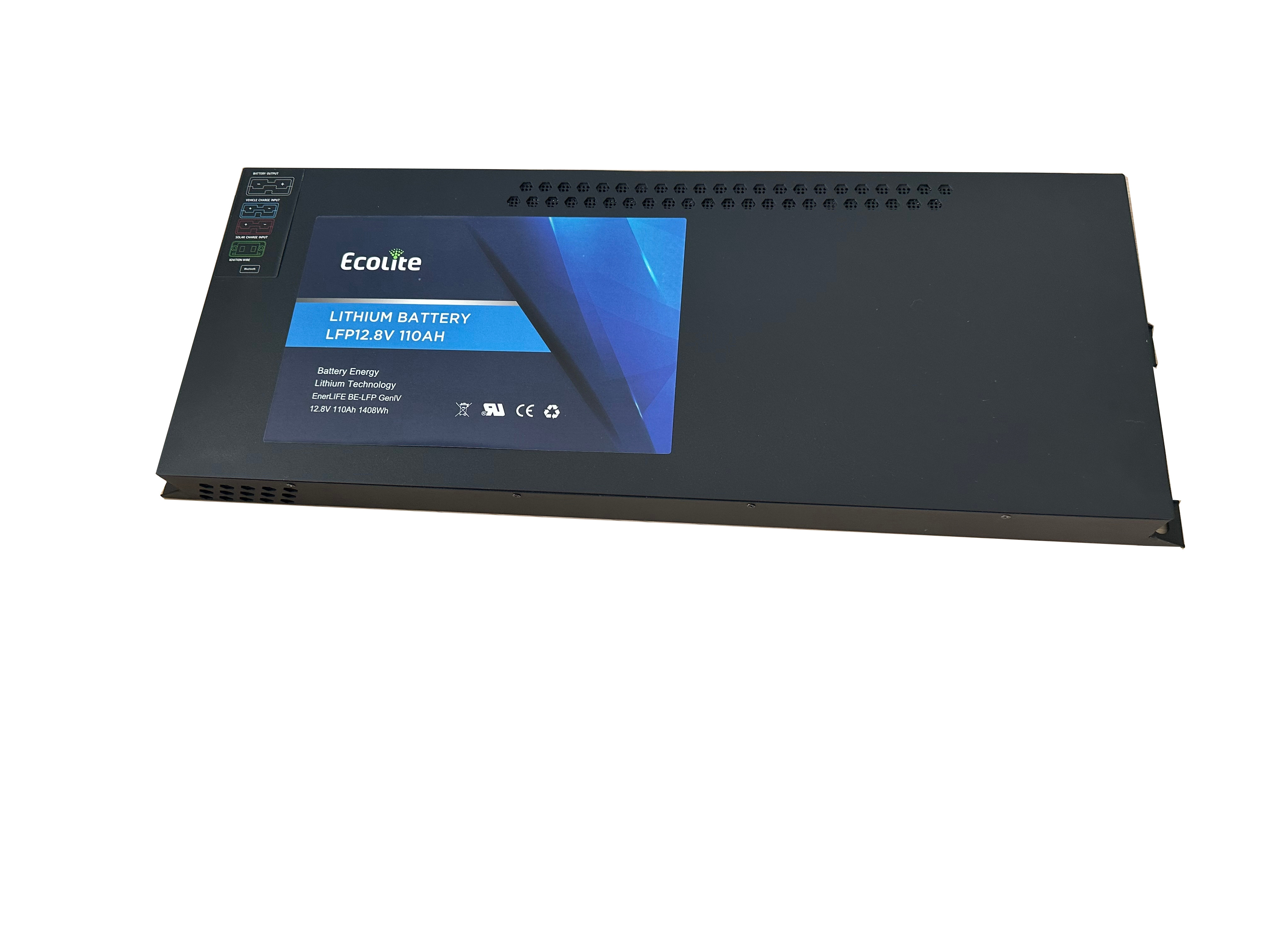

High Density 12V RV Lithium Battery 110Ah With Built-In Intelligent BMS

Ecolite High Density 12V RV Lithium Battery With Built-in Intelligent BMS

High Density 12V RV Lithium Battery 110Ah With Built-In Intelligent BMS 0

PRODUCT FEATURES

Lithium lron Phosphate(LiFePO4)

The Safest Lithium Technology

Integrated Battery Management System(BMS)

PRODUCT PERFORMANCE

Long Cycle Life>4000cycles@80%DOD

High Density,High Discharge Current,High Temperature Range
Low Weight,Free Maintenance

Fast Charging

Environment Friendly

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	110Ah
Energy	1408Wh
Resistance	≤30mΩ
Efficiency	≥0.98
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	<5% per Month
Max.Modules in Series/Parallel	4S/1P

MechanicalParameters
Dimension(WxDxH)	685x230x50mm
Dimension(WxDxH)	26.97x9.06x1.97
Product Weight	14.8kg
Terminal Type	50/120A Anderson
Battery Housing	Cold rolled steel sheet
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	320A(<320mS)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.5~13.8V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
