ECOLTO Smart 4 String Lithium Iron Battery 14.6V 50A LTO LiFePO4 Battery Charger

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      ECOLTO Smart Lithium Iron Battery, 14.6V 50A LTO LiFePO4 Battery Charger


Basic Parameters:	LFP 14.6V50A	Products Weight:	2.05Kg
Products Dimension(LxWxH):	283x142x64mm	Continuous Out-put Power:	730W
IP Protection:	IP20	In-put Voltage:	AC220V~240V
In- Put Frequency:	47~63Hz	Out-put Voltage:	DC10V-DC14.6V
Out-put Current:	50A(+6%)	Working Temperature:	-10℃~+45℃
Saving Temperature:	20℃~+60℃	Relative Temperature:	20~90%
Atmospheric Pressure:	70~106Kpa(No Condensation)	Cooling Way:	Intelligent Fan Control
Working Altitude:	≤3000m	Stable Voltage Charging Period:	14.6VDC
Stable Current Charging Period:	12~13.8VDC	Automatic Off Chargin:	Charging Voltage=14.6V And Charging Current<1A

Basic Parameters:	LFP 14.6V50A
Products Weight:	2.05Kg
Products Dimension(LxWxH):	283x142x64mm
Continuous Out-put Power:	730W
IP Protection:	IP20
In-put Voltage:	AC220V~240V
In- Put Frequency:	47~63Hz
Out-put Voltage:	DC10V-DC14.6V
Out-put Current:	50A(+6%)
Working Temperature:	-10℃~+45℃
Saving Temperature:	20℃~+60℃
Relative Temperature:	20~90%
Atmospheric Pressure:	70~106Kpa(No Condensation)
Cooling Way:	Intelligent Fan Control
Working Altitude:	≤3000m
Stable Voltage Charging Period:	14.6VDC
Stable Current Charging Period:	12~13.8VDC
Automatic Off Chargin:	Charging Voltage=14.6V And Charging Current<1A

Description

ECOLTO Smart 4 String Lithium Iron Battery 14.6V 50A LTO LiFePO4 Battery Charger

Ecolite LFP14.6V50Ah A 4-String Lithium Iron Battery And LTO Battery Charger

BATTERY CHARGERS

LFP14.6V50A is applicable to a 4-string lithium iron battery pack.This product has the functions of reverse connection protection, overload protection,short circuit protection, cooling by control fan,constant current charging, constant voltage charging,fully automatic shutdown of charger output,LED indication and so on.

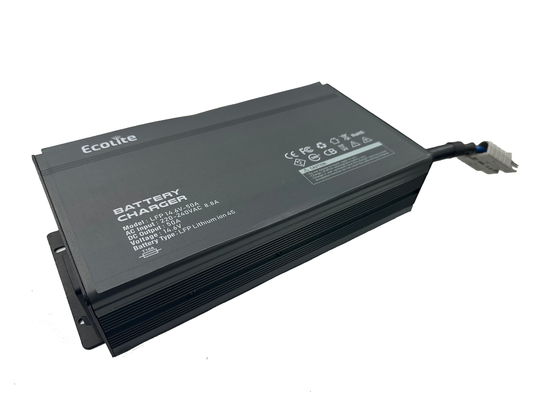

Three Views Of Products

ECOLTO Smart 4 String Lithium Iron Battery 14.6V 50A LTO LiFePO4 Battery Charger 0

Products Specifications

Basic Parameters	LFP 14.6V50A
Products Weight	2.05Kg
Dimension(LxWxH)	283x142x64mm
Continuous out-put power	730W
IP Protection	IP20
In-put Voltage	AC220V~240V
In- put Frequency	47~63Hz
Out-put Voltage	DC10V-DC14.6V
Out-put Current	50A(+6%)
Working Temperature	-10℃~+45℃
Saving Temperature	20℃~+60℃
Relative Temperature	20~90%
Atmospheric Pressure	70~106Kpa(No condensation)
Cooling Way	Intelligent fan control
Altitude	≤3000m
Stable Current Charging Period	12~13.8VDC
Stable Voltage Charging Period	14.6VDC
Automatic Off Chargin	Charging Voltage=14.6V and Charging Current<1A
