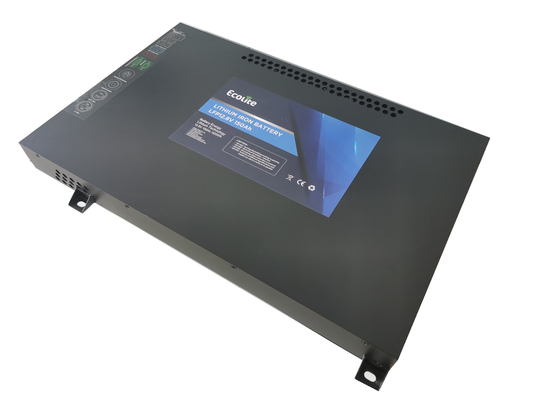

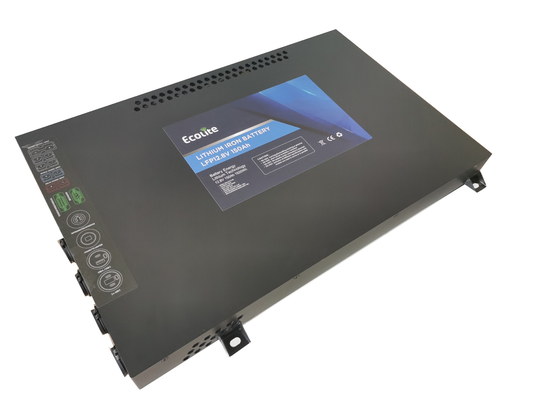

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road

50
MOQ
Inquiry
Price
Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 12.8V
Battery Capacity: 150Ah
Nominal Energy: 1920Wh
Internal Resistance: ≤30mΩ
Efficiency: ≥0.98
Cycle Life: >4000cycles @0.5C,80% DOD
OEM/ODM: Accpted
Type: LiFePO4 Battery
Charge Temperature: 0℃ To 55℃
Discharge Temperature: -20℃ To 60℃
Communication: Bluetooth
Highlight:

150Ah Slimline Lifepo4 Lithium Iron Battery

,

12.8V Slimline Lifepo4 Lithium Iron Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: SLIMLINE150
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

Deep Cycle 12.8V 150Ah Slimline LiFePO4 Lithium Iron Battery for RV Camping Off Road


PERFORMANCE:
SLIMLINE 150 sampling lithium iron phosphate battery cell, with built-in intelligent BMS, has characteristics such as long service life, light weight, high discharge current, wide temperature range, fast charging, maintenance free, safety and environmental protection.At the same time, it has multiple charging and discharging interfaces,supporting three charging methods: car generator,photovoltaic panel, and city power. lt is a multi- functional power supply, making it easier to use and more convenient.

FEATURES:

1.Off-road vehicles

2.high safety &Deep cycle
3.limited space for special use
4.save space can be used for refitting
5.strong shaking resistance
6.harsh environment use
Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 0


Electrical Parameters
Rated Voltage 12.8V
Nominal Capacity 150Ah
Nominal Energy 1920Wh
Internal Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >4000cycles @0.5C,80% DOD
Self Discharge <5% per Month
Max. Modules in Series,Parallel 4S/1P



Mechanical Parameters
Dimension(LxWxH) 615x445x60mm
Dimension((LxWxH) 24.12x 17.52x 2.36
Weight 25Kg
Terminal Type Reference connector parameters
Battery Housing SPCC
Housing Protection IP30
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current /
Maximum Charge Current 150A
BMS Charge Cut-off Voltage 14.8V



Discharge Parameters
Continuous Discharge Current 150A
Pulse Discharge Current 230A(<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us



Connector
Anderson 50A(Blue) Alternator,DC11.5~16V,Max40A
Anderson 50A(Red) Solar,DC11.5~DC50V,Max40A
Anderson 175A(Grey) DC10~DC14.6V,Max150A
Anderson 50A(Grey) DC10~DC14.6V,Max50A
CigaSocketr DC10~DC14.6V,Max10A
Anderson 175A(Grey) DC10~DC14.6V,Max10A
USB-A+USB-C 18W+65W
USB-Cx2 45W
2P Wiring Terminal IGNITION
4P Wiring Terminal Display screen



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 1



Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 2

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 3

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 4

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 5



Hefei ECOLTO Energy is a China leading manufacturer of highquality lithium batteries, From cells to automated modules to PACK production lines, we provide you with high-quality products. Wehave our own intellectual property and full-automatic equipment, to meet different customization needs, and provide you with a onestop service.

Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 6

We have our own production workshop. We develop and produce everything from battery cells to Pack assembly. We have been in this industry for more than ten years. We serve every customer with a reliable, trustworthy and pragmatic attitude.



Deep Cycle 12.8V 150Ah Slimline Lifepo4 Lithium Iron Battery For RV Camping Off Road 7

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
