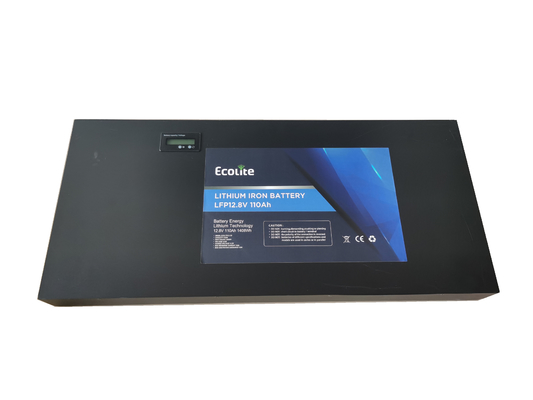

OEM Customize Super Slimline Lithium Battery 12.8V110Ah LiFePO4 Camping Battery For RV Caraven With Display

5000
MOQ
Inquiry
Price
OEM Customize Super Slimline Lithium Battery 12.8V110Ah LiFePO4 Camping Battery For RV Caraven With Display
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Nominal Voltage: 12.8V
Nominal Capacity: 110Ah
Energy: 1408Wh
Resistance: ≤30mΩ
Efficiency: ≥0.98
Battery Cycle Life: >4000cycles @0.5C,80%DOD
Self Discharge: <5% Per Month
Communication: Bluetooth
Max.Modules In Series/Parallel: 4S/1P
Size(L×W×D)): 740×290×60mm
Weight: 14.8kg
Battery Housing: Cold Rolled Steel Sheet
Continuous Discharge Current: 100A
Maximum Charge Current: 100A
Discharge Temperature: -20℃ To 60℃
Charge Temperature: 0℃ To 55℃
Highlight:

Camping Battery RV Lithium Battery

,

12.8V110Ah RV Lithium Battery

,

Super Slimline RV Lithium Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

OEM Customize Super Slim Lithium Battery 12.8V110Ah LiFePO4 Camping Battery For RV Caraven With Display

OEM Customize Super Slimline Lithium Battery 12.8V110Ah LiFePO4 Camping Battery For RV Caraven With Display 0

Slimline lithium batteries deliver reliable lithium battery technology in a convenient compact size. Slimline lithium batteries are perfect for any setup where space is limited, for example in campervans or caravans, or installing behind rear seats of dual cab utes. While a slimline lithium battery will use significantly less space than a regular lithium batteries, it will still generate the same power, and deliver the same remarkable depth of discharge.

PRODUCT FEATURES

Lithium lron Phosphate(LiFePO4)

Battery Management system

Three typical function: features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge,over-discharge, overload, and short circuits on your device.Supports high-temperature charging or discharging cut-off. Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.

PRODUCT PERFORMANCE

> 70% lighter than lead acid batteries;
> Two to four times the service life (3000 cycles);
> Battery Management Systems (BMS) with power terminal cut-off and recovery
> Our heater battery warms up the battery to enable a charger once battery is warmed up(optional);
> Cell balancing and low voltage/over voltage protection, short-circuit protection;
> Bluetooth technology to monitor battery status(optional);
> Drop in replacements (plug and play);
> Run as many needed in parallel;
> Can go up to 4 in series with this battery.

VERSATILE USE

Thanks to the non-toxic LiFePO4 chemistry, it can be mounted in any orientation without leaking caustic liquids or hazardous gas. This versatility allows consumers to store battery banks in tight spaces without ventilation, or under their bed and sleep without worry. Right side up or upside down, you will be able to store power in places that you never thought possible.

In addition, because of its ultra-high energy density, you can store the most energy even in a very limited space. It can be used safely outdoors, such as solar power, RV, camper...



Electrical Parameters
Battery voltage 12.8V
Rated Capacity 110Ah
Energy 1408Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >3000cycles @1C,80% DOD
Self Discharge <5% per Month
Max.Modules in Series/Parallel 4S/1P



MechanicalParameters
Dimension(WxDxH) 685x230x50mm
Dimension(WxDxH) 26.97x9.06x1.97
Weight 14.8kg
Terminal Type 50/120A Anderson
Battery Housing Cold rolled steel sheet
Housing Protection IP30
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth



Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 320A(<320mS)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us





Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.5~13.8V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 14.8V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off

65℃





Why Choose Lithium Over Lead-Acid?
✔️ Weight: 1/3 the mass of lead-acid, enhancing fuel efficiency.
✔️ Depth of Discharge (DoD): Safely use 90%+ capacity vs. lead-acid’s 50% limit.
✔️ Zero Voltage Sag: Consistent power output even at low charge levels.
✔️ No Ventilation Needed: Safe for indoor use, unlike vented lead-acid models.
