10KW/21KWh Portable Power Box For Indoor All-In-One Cabinet Energy Storage System

100Units
MOQ
Inquiry
Price
10KW/21KWh Portable Power Box For Indoor All-In-One Cabinet Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Code: 21KWH
Outlet Socket: 3*15A-230V
Inverter: 1*48V/10000VA
Inlet: 15A-230V
Battery Nominal Voltage: 51.2 VDC
Battery Rated Capacity: 410Ah
Energy: 21.5KWh
Highlight:

10KW Portable Power Box

,

Indoor Portable Power Box

,

21KWh Portable Power Box
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 5000 units/month
Product Description

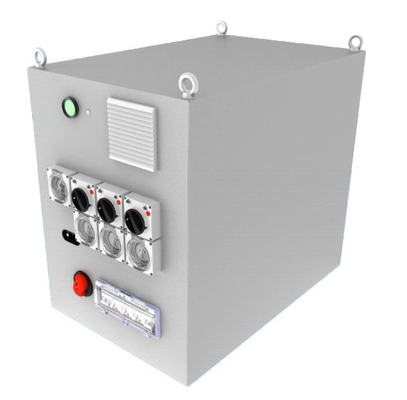

10KW/21KWh Portable Power Box For Indoor All-In-One Cabinet Energy Storage System



Engineered to deliver unmatched versatility and reliability, our 51.2V 410Ah lithium iron phosphate (LiFePO₄) portable energy storage cart combines the robustness of a cabinet energy storage system with the convenience of mobility. Designed for users who demand high-capacity power on the go, this innovative solution integrates advanced battery technology, intelligent management, and a rugged portable design, making it ideal for diverse applications from outdoor adventures to emergency backup power.



FEATURES

The 10KW/21KWh portable power box is a quiet andclean power solution that was built with safety inmind.Experience noise free, fuel free, and emissionfree power, perfect forindoor enclosed spaces.This multifunctional device offers a battery capacityof up to 21kWh, providing power support for variousindustries.
It can be charged through an AC230V power supplyor quickly charged through an external charger, andis equipped with 3x15A sockets.



USE CASES

This Cabinet Energy Storage System is ideal for a multitude of applications. For outdoor enthusiasts, it powers camping gear, portable refrigerators, and lighting during camping trips, ensuring a comfortable and enjoyable experience. In emergency situations, it serves as a reliable backup power source, keeping essential devices and appliances running. For professionals, it supports remote work setups, providing uninterrupted power for laptops, printers, and communication equipment. It is also suitable for off - grid living, enabling sustainable energy use in remote areas. Whether it's for leisure, work, or emergencies, our portable energy storage cart is the ultimate power companion.

Basic parameters
Product Code 21KWh
Outlet socket 3*15A-230V
Inverter 1*48V/10000VA
Inlet 15A-230V
Charging Times-Inverter 80%=5 hours 30 mins
100%=6 hours 30 mins
Charging Times-Rema(External charger) 80%=2 hours
100%=2 hours 40 mins



Lithium Batteries
Battery Nominal Voltage 51.2 VDC
Battery Rated Capacity 410Ah
Energy 21.5KWh
Battery Cycle Life(25°C,0.5C/0.5C,100%DOD) >6000cycles,Remaining Capacity>70%
Continuous Discharge Current 300A
Pulse Discharge Current 600A (<1S)
Discharge Cut-off Voltage 40V
Reconnect Voltage 43.2V
Charge Voltage 56.8V~58.4V
Maximum Charge Current 300A
Cell Type-Chemistry LiFePO4 Cell
Operating Temperature Charge 0°C~ 60°C
Discharge -20°C~60°C



Inverter
Rated Inverter Power (Continuous) 10kVA
Surge Capacity (Peak) 18KVA for 5 Secs
Nominal Output Voltage 230VAC
Frequency 50Hz
AC Voltage Regulation (Battery Mode) 230VAC ± 5%
Battery Nominal Voltage 48VDC
Overload Protection

100ms @ ≥205% load

5s @ ≥150% load

10s @110%~150% load
AC Input Nominal 230VAC Range 170-280VDC
Nominal Input Frequency 50Hz



Dimensions&Weight
Dimension(L*W*H) 850*570*760mm
Dry Weight Estimated 226kg
Distribution Panel
3*15A 1Ph 230V 3 Pin GPOs(RCBO Protected)
1*15A 1Ph 230V 3 Pin Inlet Trickle Charge(RCBO Protected)
1*320A Rema



On board control panel equipped with
Battery Monitor SOC/Voltage/Current/monitoring
Battery ON/OFF switch Fitted
Battery Isolator Fitted
RCBO Protection Fitted
High current charging interface Fitted



Tag:

High Voltage Energy Storage

LTO Lithium Titanate Battery

Solar Energy Storage System
