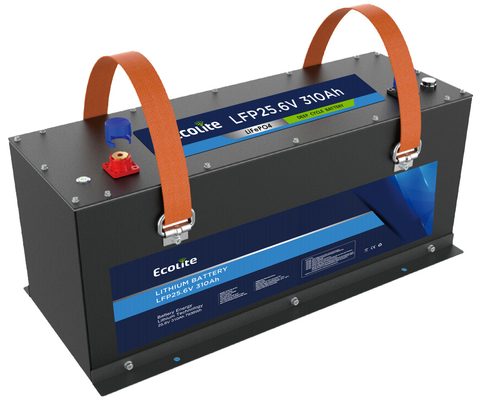

ECOLITE 25.6V 314Ah 8038Wh fast Charging Lithium Battery Pack For RV Caravan Backup Power
When it comes to keeping your RV powered up during your travels, our 25.6V 314Ah RV Backup Battery is the perfect choice. Designed with advanced technology and built to meet the demanding needs of RV enthusiasts, this battery offers a range of exceptional features that set it apart from the competition.
One of the standout features of our RV backup battery is its fast charging capability. It supports a charging voltage range of 28.4V to 29.2V, allowing for efficient and quick charging. With a maximum charging current of 200A, you can get your battery back to full capacity in no time, ensuring that you're never left without power for too long. Whether you're at a campsite with shore power or using a generator, this fast charging feature means you can spend more time enjoying your trip and less time waiting for your battery to charge.
Another key advantage of our battery is its long cycle life. With a cycle life of over 8000 cycles, it outperforms many other batteries on the market. This means you can rely on it to provide consistent power for years to come, even with regular use. Whether you're using your RV for weekend getaways or long-term travel, our battery will stand the test of time, reducing the need for frequent replacements and saving you money in the long run.
Our 25.6V 314Ah RV Backup Battery also features a wide operating temperature range, making it suitable for use in a variety of environments. It can discharge efficiently in temperatures ranging from -20℃ to 60℃, ensuring that you have power even in extreme cold or heat. For charging, it operates optimally in temperatures from 0℃ to 55℃, giving you the flexibility to charge your battery in different weather conditions without worrying about performance issues.
In addition to these features, our battery is designed with safety and durability in mind. It is built with high-quality materials and undergoes rigorous testing to ensure it meets the highest standards of performance and reliability. Whether you're using it to power your RV's appliances, lights, or entertainment systems, you can trust that our battery will deliver the power you need, when you need it.
Invest in our 25.6V 314Ah RV Backup Battery today and experience the difference in power and performance. With its fast charging, long cycle life, and wide temperature range, it's the ideal choice for any RV owner who wants to stay powered up and ready for adventure.
BATTERY FEATURES:
Lithium lron Phosphate(LiFePO4).
The Safest Lithium Technology.
Integrated Battery Management System(BMS).
Supports up to 2 batteries in series or 4 batteries in parallel.
PERFORMANCE:
Long Cycle Life >8000cycles,
Remaining capacity>70% @25'C,0.5C/0.5C,100%DOD.
High Density, High Discharge Current,HighTemperature Range.
Low Weight,Free Maintenance,Fast Charging.Environment Friendly.
| Electrical Parameters |
| Nominal Voltage |
25.6V |
| Rated Capacity |
314Ah |
| Nominal Energy |
8038Wh |
| Internal Resistance |
≤20mΩ |
| Efficiency |
≥0.98 |
| Cycle Life |
>8000cycles @0.5C,80% DOD |
| Self Discharge |
<5% per Month |
| Cell in Series,Parallel |
8S/1P |
| Mechanical Parameters |
| Dimension(LxWxH) |
655x290x270mm |
| Dimension((LxWxH) |
25.79x11.42x10.63'' |
| Weight |
68Kg |
| Terminal Type |
M8 |
| Battery Housing |
SPCC |
| Housing Protection |
IP65 |
| Cell Type-Chemistry |
LiFePO4 Cell |
| Communication |
Bluetooth |
| Charge Parameters |
| Charge Method |
CC-CV |
| Charge Voltage |
28.4~29.2V |
| Recommended Float Voltage |
26.2~26.8V@100% |
| Recommended Charge Current |
150A |
| Maximum Charge Current |
200A |
| BMS Charge Cut-off Voltage |
29.2V |
| Discharge Parameters |
| Continuous Discharge Current |
200A |
| Pulse Discharge Current |
300A(<1S) |
| Recommended Volt. Disconnect |
20V |
| BMS Discharge Cut-off Voltage |
20V |
| Reconnect Voltage |
21.6V |
| Short Circuit Protection |
100-400us |
| Temperature Parameters |
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 55℃ |
| Storage Temperature |
-10℃ to 60℃ |
| BMS High Temperature Cut-off |
65℃ |
Hefei ECOLTO Energy is a China leading manufacturer of highquality lithium batteries, From cells to automated modules to PACK production lines, we provide you with high-quality products. Wehave our own intellectual property and full-automatic equipment, to meet different customization needs, and provide you with a onestop service.
We have our own production workshop. We develop and produce everything from battery cells to Pack assembly. We have been in this industry for more than ten years. We serve every customer with a reliable, trustworthy and pragmatic attitude.
Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
