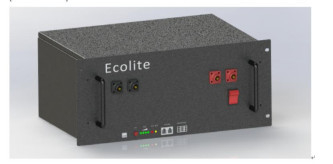

LiFePO4 Lithium Battery 51.2V 150Ah Battery pack for Battery energy storage system

LiFePO4 Lithium Battery 51.2V 150Ah Battery pack for Battery energy storage system

Introducing our high - performance 51.2V 150Ah lithium battery module, designed to meet the diverse Battery energy storage system needs of various industries. This module is built with cutting - edge technology and superior materials to deliver outstanding performance, reliability, and longevity.

Product Features

Exceptional Cycle Life

With a cycle life of more than 4000 cycles, this lithium battery module outperforms many traditional battery options. It can withstand repeated charging and discharging, making it an ideal choice for applications where battery longevity is crucial, such as in renewable battery energy storage systems and electric vehicles.

High Discharge Current

It is capable of providing a high discharge current, ensuring stable and efficient power supply even in high - power demand situations. Whether it is for starting a vehicle or powering high - energy - consuming equipment, this module can deliver the required current without any hesitation.

High Discharge Current

It is capable of providing a high discharge current, ensuring stable and efficient power supply even in high - power demand situations. Whether it is for powering high - energy - consuming equipment, this module can deliver the required current without any hesitation.

Flexible Configuration

The maximum acceptable configuration is 16 series and 3 parallel, allowing for easy customization to meet different voltage and capacity requirements. This flexibility makes it suitable for a wide range of applications, from small - scale energy storage setups to large - scale industrial systems.

Wide Temperature Range

Operating within a wide temperature range of - 30°C to 60°C, this battery module can function optimally in extreme environmental conditions. It is resistant to both high and low temperatures, making it suitable for use in various geographical locations and harsh environments.

Low Weight

Thanks to the use of lightweight materials and advanced manufacturing processes, the module has a relatively low weight compared to other battery types with similar capacity and performance. This makes it easier to transport and install, reducing the overall system weight and energy consumption during transportation.

Maintenance - Free

One of the key advantages of this lithium battery module is that it is maintenance - free. There is no need for regular battery watering, acid checking, or other time - consuming and costly maintenance procedures. This saves both time and money in the long run, making it a cost - effective solution for energy storage.

Fast Charging

It supports fast charging, which means it can be recharged in a short period of time, minimizing downtime and increasing the efficiency of the energy storage system. Whether it is charged using solar power, grid power, or an engine, the module can quickly replenish its energy storage.

Environmentally Friendly

The use of lithium iron phosphate cells makes this battery module environmentally friendly. It does not contain harmful heavy metals such as lead, cadmium, or mercury, and has a lower impact on the environment during production, use, and disposal compared to traditional lead - acid batteries.

Core Components

Lithium Iron Phosphate (LiFePO4) Cells

The module is equipped with high - quality LiFePO4 cells, which are known for their high safety, long cycle life, and excellent thermal stability. These cells provide a stable and reliable power source, ensuring the overall performance and longevity of the battery module.

Battery Management System (BMS)

Included in the module is a sophisticated BMS, which is responsible for monitoring and managing the battery's performance. It controls the charging and discharging process, protects the battery from over - charging, over - discharging, over - current, and over - temperature, and ensures the safe and efficient operation of the battery module.

Charging Options

This battery module supports multiple charging methods, including solar charging, mains charging, and engine charging. This versatility allows it to be integrated into various energy storage systems, whether it is a standalone solar power system, a grid - connected energy storage system, or a backup power system for vehicles.

Application as a Lead - Acid Battery Alternative

HYLN48- 150( 51.2V150Ah )
BATTERY DATA SHEET
Electrical Parameters					Mechanical Parameters
Nominal Voltage		51.2V			Dimension(W×D×H)				400x650x222mm
Rated Capacity		150Ah							15.75x25.59x8.74"
Energy		7680Wh			Weight				60kg
Resistance		≤16mΩ			Terminal Type				SLPRBPSR , SLPRBPSB
Efficiency		0.99			Battery Housing				Matel
Cycle Life		>4000cycles @0.5C,80% DOD			Housing Protection				IP40
Self Discharge		2% per Month			Cell Type-Chemistry				LiFePO4 Cell
Max. Modules in Series/Parallel		16S/3P			SOC Display(Optional)				LED
					Communication Mode				CAN
Discharge Parameters					Charge Parameters
Continuous Discharge Current		80A			Charge Method				CC-CV
Pulse Discharge Current		200A (<3S)			Charge Voltage				57.6V
Recommended Volt. Disconnect		40V			Recommended Float Voltage				56.8V
BMS Discharge Cut-off Voltage		36.8V			Recommended Charge Current				50A
Reconnect Voltage		46.4V			Maximum Charge Current				100A
Short Circuit Protection		200-600us			BMS Charge Cut-off Voltage				59.2V
Temperature Parameters
Discharge Temperature		-30 t o 60 ℃
Charge Temperature		0 to 60 ℃
Storage Temperature		-20 to 40℃
BMS High Temperature Cut-off		70℃
