FEATURES:
Safe Lithium Technology
Built with LiFePO4 chemistry—renowned as the safest lithium battery type—offering superior thermal stability and zero risk of thermal runaway, ensuring peace of mind in enclosed or high-use environments.
Integrated BMS Protection
Equipped with a smart Battery Management System (BMS) that guards against overcharge, over-discharge, short circuits, and cell imbalance, extending lifespan and optimizing daily performance.

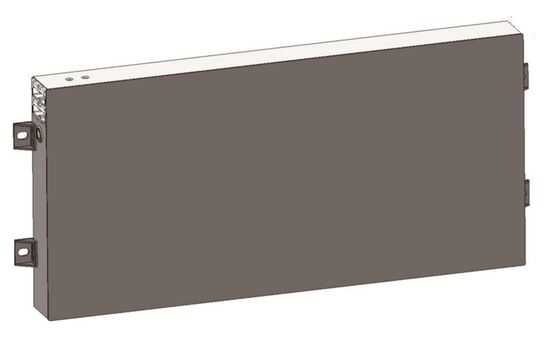

Ultra-Thin Design
Its slim profile enables flexible installation in tight spaces—ideal for under-seat storage, wall-mounted setups, or systems where vertical clearance is limited, without sacrificing capacity.
Electrical Parameters | |
Nominal Voltage | 12.8V |
Rated Capacity | 110Ah |
Nominal Energy | 1408Wh |
Internal Resistance | ≤20mΩ |
Efficiency | ≥0.98 |
Cycle Life(25℃,0.5C/0.5C,100%DOD) | >4000cycles Remaining capacity>80% |
Self Discharge | <3% per Month |
Cell in Series,Parallel | 4S/1P |
Mechanical Parameters | |
Dimension(LxWxH) Including installation feet |
614x275x50mm |
24.17x 10.83x1.97'' | |
Weight | 11Kg |
Terminal Type | 120A Anderson*2 |
Battery Housing | SPCC |
Housing Protection | IP20 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | Bluetooth |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 14.2~14.6V |
Recommended Float Voltage | 13.3~13.4V@100% |
Recommended Charge Current | 55A |
Maximum Charge Current | 100A |
BMS Charge Cut-off Voltage | 14.8V |
Discharge Parameters | |
Continuous Discharge Current | 100A |
Pulse Discharge Current | 400A(<1S) |
Recommended Volt. Disconnect | 10V |
BMS Discharge Cut-off Voltage | 10V |
Reconnect Voltage | 10.8V |
Short Circuit Protection | 100-200us |
Temperature Parameters | |
Discharge Temperature | -30℃ to 65℃ |
Charge Temperature | 0℃ to 65℃ |
Storage Temperature | -10℃ to 35℃ |
BMS High Temperature Cut-off | 70℃ |
