Electrical Parameters | |
Nominal Voltage | 51.2V |
Rated Capacity | 105Ah |
Energy | 5376Wh |
Resistance | ≤45mΩ |
Efficiency | ≥0.98 |
Cycle Life | >4000cycles Remaining capacity>80% |
Self Discharge | <5% per Month |
Max.Modules in Series/Parallel | 16S/1P |
Mechanical Parameters | |
Dimension(W*D*H) |
460*334*247mm |
Dimension(W*D*H) | 18.11''*13.15''*9.72'' |
Weight | 46kg |
Terminal Type | FCC1020BS,200A |
Screen interface | WY16K4Z 5A |
Debugging parallel interface | RJ45 |
Battery Housing | SPCC |
Housing Protection | IP67 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | RS485/CAN |
Discharge Parameters | |
Continuous Discharge Current | 150A |
Pulse Discharge Current | 250A(<120S) |
Recommended Volt.Disconnect | 40V |
BMS Discharge Cut-off Voltage | 40V |
Reconnect Voltage | 43.2V |
Short Circuit Protection | 300-800us |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 56.8~58.4V |
Recommended Float Voltage | 53.2~53.6V@100% |
Recommended Charge Current | 52.5A |
Maximum Charge Current | 105A |
BMS Charge Cut-off Voltage | 58.4V |
Temperature Parameters | |
Discharge Temperature | -30℃ to 65℃ |
Charge Temperature | -30℃ to 65℃,Start heating at<0℃ |
Storage Temperature | 0℃ to 35℃ |
BMS High Temperature Cut-off | 65℃ |

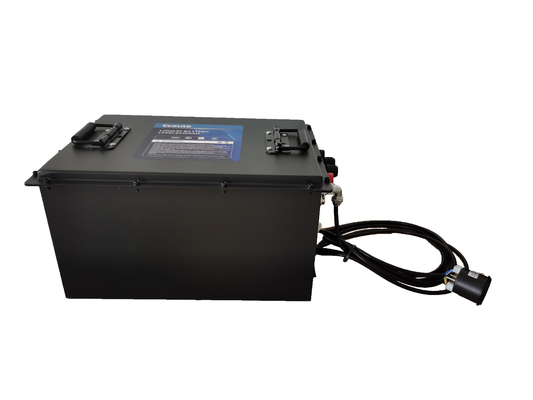

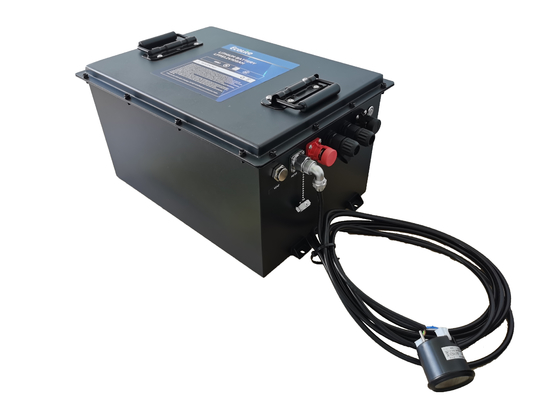

Our lithium golf cart batteries are designed specifically to meet the power and energy needs of all types of golf cars, utility vehicles, and AGVs. Not only do they fit like a glove, but the one-of-a-kind battery management system hosts intuitive software, seamlessly manages regenerative currents, and avoids unnecessary disconnects.
But the ECOLITE provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the golfcart battery come equipped with a LED capacity meter on the top of the unit, But also the ECOLITE supports CAN/RS485 communication protocols, so you can always monitor the status and performance of your battery system. Plus, the golfcart battery is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re on the road.
Key Product Features
Extended Range
Explore further and go longer with increased capacity and greater discharge potential compared to lead-acid batteries. Utilize more capacity and charge faster with Grade A lithium.
Zero Maintenance
No water filling, no corrosive acids damaging your cart, and the confidence of safe long-term storage. Move to lithium and upgrade to worry-free and hassle-free operation!
Long Lifespan
More cycles, more performance-filled years, backed by a 10-year warranty. Our industry-best service team is here for you every mile along the way.
Safe and Reliable
The safest Lithium LiFePO4 chemistry, paired with advanced Battery Management technology, ensures safe operation during charging, use, and storage.
Super Smart BMS
The robust Battery Management System features a combined total of 48 charge and discharge MOFSETs that control current flow in and out of the battery, along with multilayer protective devices that prevent over/under voltage, current and temperature conditions.
Golf carts are among the many vehicles that reap massive benefits from lithium-ion batteries. Our lithium solutions will give you less weight, more power, shorter charging intervals, and zero maintenance over lead-acid batteries! This also means you can enjoy more mileage on a single charge with stronger acceleration up hills. Upgrade your golf cart to see the benefits for yourself !
