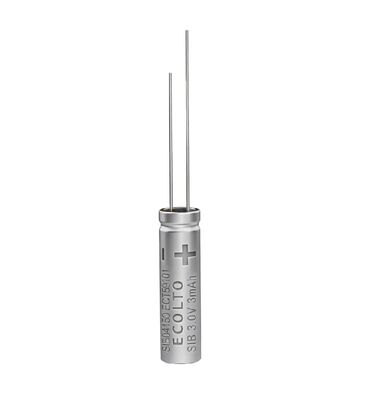

Product Details
Place of Origin: China
Brand Name: Ecolto
Certification: UN38.3 MSDS CE RoHS
Model Number: SIB 04150
Payment & Shipping Terms
Minimum Order Quantity: 5000pcs
Price: Inquiry
Packaging Details: Carton
Delivery Time: 5-8 work day
Payment Terms: L/C,T/T
Supply Ability: 100000Units per month
Cell Type: |
Sodium Ion Cell |
Dimensions: |
04150 |
Nominal Voltage: |
3V |
Capacity: |
3mAh |
Operating Temperature Range: |
-20℃~+60℃ |
Internal Impedance: |
≤600mΩ |
Storage Temperature Range: |
+10℃~+40℃ |
Cell Type: |
Sodium Ion Cell |
Dimensions: |
04150 |
Nominal Voltage: |
3V |
Capacity: |
3mAh |
Operating Temperature Range: |
-20℃~+60℃ |
Internal Impedance: |
≤600mΩ |
Storage Temperature Range: |
+10℃~+40℃ |
| Items | Criteria | Remarks |
|---|---|---|
| Typical capacity | 3mAh [±20%] | 0.05C charge and discharge for cut-off voltage |
| Nominal voltage | 3.0V | / |
| Internal impedance | ≤600mΩ | AC 1KHz after standard charge |
| Charge cut-off voltage | 3.6V | / |
| Standard charge current | 3mA | 1C |
| Max continuous charge current | 75mA | 25C |
| Standard discharge current | 3mA | 1C |
| Max continuous discharge current | 75mA | 25C |
| Discharge cut-off voltage | 2.0V | / |
| Temperature | -20℃~+60℃ | Operating Temp.Range |
| Temperature | +10℃~+40℃ | Storage Temp.Range |
Engineered for Safe Transport & Use
Safety is foundational. This battery complies with 0‑volt transportation standards, facilitating secure global shipping. Its exceptional safety profile minimizes risks associated with thermal events, ensuring dependable operation in close‑proximity installations.
Dynamic Performance Under Varied Conditions
Adaptable to dynamic power needs, the SIB 04150 supports high‑rate charge and discharge cycles. It maintains consistent operation from ‑20°C to 60°C, providing resilient performance for devices exposed to fluctuating environmental conditions.
Extended Operation for Advanced Micro‑Devices
Designed for applications requiring a step up in runtime, this battery’s 3mAh capacity supports longer operational intervals. It is an ideal power source for connected technologies where consistent voltage and longevity are critical for user experience.
Application Scenarios
Advanced wearable electronic systems
Portable medical monitoring equipment
Smart sensors for industrial and consumer use
Compact handheld terminals and scanners
Electronic tracking and security devices
IoT modules with moderate energy demands
Customization & Collaborative Development
We provide tailored development services for the SIB 04150. From electrical specifications to mechanical design and branding, our team collaborates with you to create a battery solution that aligns with your product vision and market requirements.
