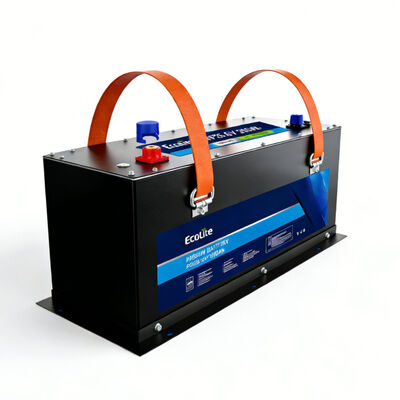

ECOLITE 25.6V 314Ah LiFePO4 Battery High-Capacity Fast-Charging Power Pack for RVs Off-Grid Systems

50
MOQ
Inquiry
Price
ECOLITE 25.6V 314Ah LiFePO4 Battery High-Capacity Fast-Charging Power Pack for RVs Off-Grid Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 314Ah
Energy: 8038Wh
Resistance: ≤20mΩ
Efficiency: ≥0.98
Cycle Life: >8000cycles @0.5C,80% DOD
OEM/ODM: Accpted
Self Discharge: <5% Per Month
Highlight:

LiFePO4 314Ah Battery

,

High Capacity LiFePO4 Battery

,

LiFePO4 Battery For Off Grid Systems

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP24-300
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C,T/T
Supply Ability: 5000 Units per month
Product Description


Electrical Parameters
Nominal Voltage 25.6V
Rated Capacity 314Ah
Nominal Energy 8038Wh
Internal Resistance ≤20mΩ
Efficiency ≥0.98
Cycle Life >8000cycles @0.5C,80% DOD
Self Discharge <5% per Month
Cell in Series,Parallel 8S/1P


Mechanical Parameters
Dimension(LxWxH) 655x290x270mm
Dimension((LxWxH) 25.79x11.42x10.63''
Weight 68Kg
Terminal Type M8
Battery Housing SPCC
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth


Charge Parameters
Charge Method CC-CV
Charge Voltage 28.4~29.2V
Recommended Float Voltage 26.2~26.8V@100%
Recommended Charge Current 150A
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 29.2V


Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 300A(<1S)
Recommended Volt. Disconnect 20V
BMS Discharge Cut-off Voltage 20V
Reconnect Voltage 21.6V
Short Circuit Protection 100-400us



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -10℃ to 60℃
BMS High Temperature Cut-off 65℃

Product Overview
Designed for high-demand mobile and stationary energy applications, the ECOLITE 25.6V 314Ah LiFePO4 battery delivers reliable, long-lasting power with an impressive 8038Wh capacity. Combining fast-charging capability, extended cycle life, and wide temperature adaptability, this battery serves as a robust energy solution for recreational vehicles, off-grid solar installations, backup systems, and other applications where performance and durability are essential.

Rapid Recharge Capability
Supporting a maximum charging current of 200A and a voltage range of 28.4V–29.2V, this battery significantly reduces downtime, allowing users to restore power quickly whether connected to shore power, solar arrays, or generators. Its CC-CV charging method ensures safe, efficient energy intake while prolonging overall battery health.

Exceptional Longevity & Cycle Performance
Rated for over 8000 cycles with minimal capacity loss, this LiFePO4 battery offers outstanding service life even under regular deep-cycle use. Its high energy efficiency (≥98%) and low self-discharge rate ensure reliable performance season after season, reducing long-term ownership costs and environmental impact.

Broad Temperature Adaptability
Engineered to perform under diverse climatic conditions, this battery supports discharge in temperatures from –20℃ to 60℃ and charging between 0℃ and 55℃. This flexibility makes it suitable for use in environments ranging from cold-weather expeditions to sun-exposed mobile setups, without compromising safety or output stability.

Integrated Safety & Smart Management
Featuring a built-in Battery Management System (BMS) with Bluetooth communication, the battery offers real-time monitoring, voltage regulation, and protection against overcharge, over-discharge, short circuits, and temperature extremes. Its IP65-rated SPCC enclosure provides additional defense against dust and moisture, ensuring safe operation in rugged outdoor and marine settings.

Flexible Configuration & Expandability
This battery supports series and parallel connections, allowing system expansion up to 2 units in series or 4 in parallel. This modular approach enables users to scale their energy storage according to evolving power requirements, making it a future-proof investment for growing energy needs.


Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
