Highlight:
6C Fast Charge LTO
, 20000 Cycle Solar Tracker
, IP65 Weatherproof Enclosure

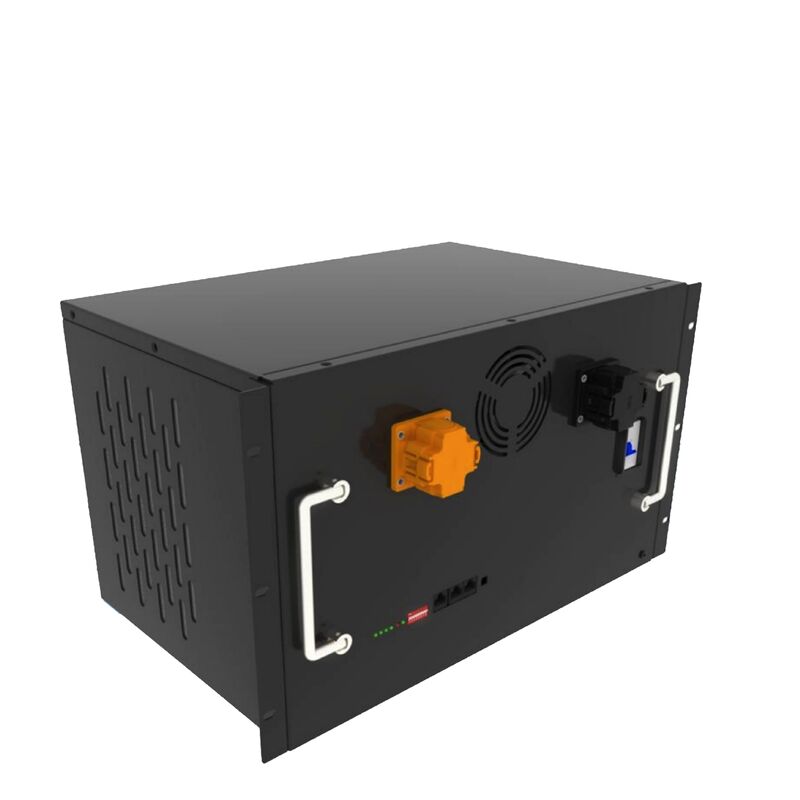

24V 50Ah LTO Battery Pack 6C Fast Charge 20000 Cycles Solar Tracker Industrial
Product Overview
This 24V 50Ah LTO battery pack is purpose-built for solar tracking systems and industrial outdoor equipment, delivering 20000 charge cycles with 6C fast charging in an IP65 weatherproof enclosure. Solar trackers operate every single day for decades, and this battery is engineered to match the 25-year lifespan of the solar panels they support.
The IP65-rated aluminum enclosure protects the cells and BMS from dust, rain, snow and humidity, making it suitable for rooftop, desert and coastal installations without additional housing. Plug-and-play connectivity simplifies field installation and replacement.
Core Selling Point: Fast Charge + Long Life for Solar Tracking
- 6C fast charge: full charge in 10-12 minutes from solar input
- 20000 cycles: matches solar panel 25-year lifespan
- IP65 enclosure: dust-tight, water-resistant, weatherproof
- -40 to 65 degrees C: all-climate operation
- Plug-and-play: compatible with standard tracker controllers
- Low self-discharge: less than 3% per month for seasonal storage
Discharge Characteristics
| Discharge Rate | Capacity Retention | End Voltage | Max Duration |
|---|
| 0.5C (25A) | 100% | 22.8V | Continuous |
| 1C (50A) | 98% | 22.2V | Continuous |
| 5C (250A) | 95% | 21.0V | Continuous |
| 8C (400A) | 90% | 20.4V | 3 seconds (peak) |
Solar tracker motors demand precise, repeated positioning movements throughout the day. The LTO pack delivers consistent voltage under these frequent micro-cycles, ensuring accurate sun tracking year after year.
Charging Parameters
| Parameter | Standard Charging | Fast Charging |
|---|
| Charging Current | 1C (50A) | 6C (300A) |
| Charging Voltage | 27.2V (2.72V/cell) | 27.2V (2.72V/cell) |
| Charging Time (0-100%) | 1 hour | 10-12 minutes |
| Charge Efficiency | 97% | 95% |
| Recommended Controller | MPPT solar charge controller with LTO profile |
LTO vs Other Batteries for Solar Tracking
| Parameter | LTO Battery | LiFePO4 Battery | Gel Lead-Acid |
|---|
| Cycle Life | 20000 cycles | 3000-5000 cycles | 1000-1500 cycles |
| Charge Acceptance | 6C | 1C | 0.2C |
| Operating Temperature | -40 to 65 degrees C | -20 to 55 degrees C | -10 to 45 degrees C |
| Maintenance | Zero | Zero | Periodic checks |
| Lifespan Match | Matches panel 25yr | 8-10 years | 3-5 years |
| Replacement Cycles | 0 (one-time install) | 2-3 times | 5-8 times |
Technical Specifications
| Nominal Voltage | 24V |
| Nominal Capacity | 50Ah |
| Energy | 1.2 kWh |
| Cycle Life | 20000 cycles @ 80% DOD |
| Cell Chemistry | Lithium Titanate (Li4Ti5O12) |
| Max Charge Rate | 6C (300A) |
| Max Discharge Rate | 8C pulse, 4C continuous |
| Protection Rating | IP65 |
| Enclosure Material | Sealed aluminum alloy |
| Operating Temperature | -40 to 65 degrees C |
| Weight | Approx. 18kg |
| Communication | RS485, CAN bus |
| Warranty | 5 years |
Smart BMS Protection
The BMS provides complete protection and monitoring with RS485 communication for remote telemetry. Track battery health, temperature and charge status from your SCADA or monitoring platform.
| Protection Function | Threshold | Response |
|---|
| Overcharge Protection | 2.95V per cell | Disconnect charging |
| Over-discharge Protection | 1.5V per cell | Disconnect load |
| Overcurrent Protection | 8C (400A) | Disconnect within 3s |
| Short Circuit Protection | Immediate | Disconnect instantly |
| High Temperature Protection | 65 degrees C | Reduce current / cutoff |
| Cell Balancing | +/- 10mV | Active balancing |
Applications
- Solar tracker power and control systems
- Photovoltaic monitoring stations
- Industrial outdoor equipment
- Telecom and IoT remote power
- Agricultural irrigation controllers
Quality Assurance & Certifications
- ISO 9001:2015 certified factory
- Cell level: UN38.3, UL1642, IEC62133 certified
- Pack level: CE, RoHS, IP65 tested
- 100% aging tested, 5-year warranty
Customization Options
- Capacity from 20Ah to 200Ah available
- Connector options: waterproof aviation plug, Anderson, custom
- Communication: RS485, CAN, Bluetooth
- OEM / ODM service available
Frequently Asked Questions
Q1: How long will this battery last on a solar tracker?
A: With 20000 cycles and one full cycle per day, the battery lasts over 25 years - matching the solar panel lifespan.
Q2: Is the IP65 enclosure truly weatherproof?
A: Yes. The sealed aluminum housing is dust-tight and protected against water jets, tested per IEC 60529.
Q3: Can it handle rapid solar charge fluctuations?
A: Absolutely. LTO accepts 6C charge rates, absorbing solar input spikes without damage or accelerated aging.
Q4: Does it need maintenance?
A: Zero maintenance for its entire service life. No watering, no cleaning, no equalization charges.
Contact us today for a quotation and technical consultation for your solar tracking project.
Dimension Options (Reference)
| Model | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|
| LTO-24V50Ah-A | 420 | 300 | 220 | 18 |
| LTO-24V50Ah-B | 450 | 280 | 240 | 19 |
| LTO-24V50Ah-C (custom) | Per drawing | Per drawing | Per drawing | Varies |
Packaging & Shipping
| Item | Detail |
|---|
| Packaging | Export-grade wooden case, shock-proof foam insert |
| Transport Classification | UN3480, Class 9 dangerous goods |
| Documents | MSDS, UN38.3 test report, CO, Commercial Invoice |
| Shipping Methods | Sea freight, air freight (per regulation) |
| Lead Time | 15-25 days after deposit |
Why Choose LTO for Solar Tracking
Solar trackers are installed in remote locations where maintenance access is difficult and expensive. A battery failure means a service call to a desert or rooftop installation - costs that quickly exceed the battery price. LTO's 20000-cycle lifespan means the battery is installed once and never touched again for the life of the tracker. Its wide temperature tolerance handles desert heat and mountain cold without derating, while the IP65 enclosure shrugs off dust storms and monsoon rain. For solar tracker OEMs, specifying LTO eliminates the single largest warranty cost item: battery replacement.
Application Case Study
Case: 500-Tracker Solar Farm
A utility-scale solar farm in the Middle East equipped 500 trackers with this 24V 50Ah LTO pack. Ambient temperatures reach 55 degrees C in summer. After 3 years of daily operation, zero battery failures were recorded, versus a 12% annual failure rate with the previous gel battery solution. The LTO packs maintain full capacity despite continuous exposure to extreme heat and sand.
