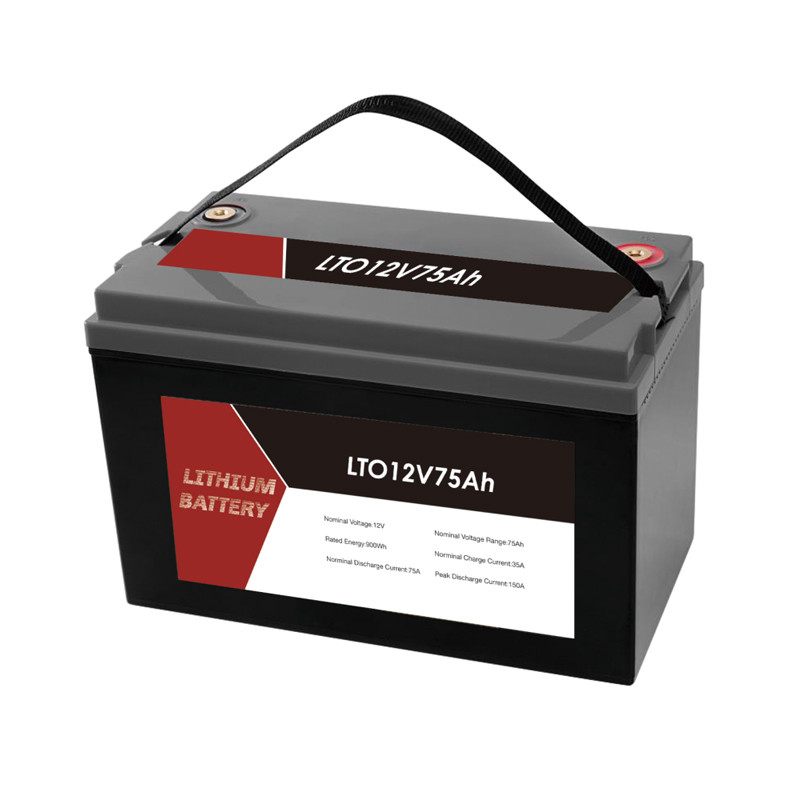

12V 75Ah LTO Battery Pack For Marine RV Applications With 12mΩ Resistance

Name: 12V 75Ah LTO Battery Pack For Marine RV Applications With 12mΩ Resistance
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO T1275
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: ECOLTO T1275

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 6-8 work days

Payment Terms: , L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          75Ah LTO Battery Pack, Marine LTO Battery Pack, 12V Battery Pack For RV


Energy:	900Wh	Weight:	14.2KG
Dimension(L×W×H):	307x169x208mm	Terminal Type:	M8
Battery Housing:	ABS	Cycle Life:	>10000cycles @1C,80% DOD
Housing Protection:	IP67	Cell Type-Chemistry:	LTO Cell
SOC Display(Optional):	/	Continuous Discharge Current:	150A
Pulse Discharge Current:	200A (<1S)	Recommended Volt. Disconnect:	7.5V
BMS Discharge Cut-off Voltage:	8V	Reconnect Voltage:	10V
Short Circuit Protection:	200-500us

Energy:	900Wh
Weight:	14.2KG
Dimension(L×W×H):	307x169x208mm
Terminal Type:	M8
Battery Housing:	ABS
Cycle Life:	>10000cycles @1C,80% DOD
Housing Protection:	IP67
Cell Type-Chemistry:	LTO Cell
SOC Display(Optional):	/
Continuous Discharge Current:	150A
Pulse Discharge Current:	200A (<1S)
Recommended Volt. Disconnect:	7.5V
BMS Discharge Cut-off Voltage:	8V
Reconnect Voltage:	10V
Short Circuit Protection:	200-500us

Description

12V 75Ah LTO Battery Pack For Marine RV Applications With 12mΩ Resistance

ECOLTO12-75 12V75Ah LTO Battery Pack For Marine RV Applications With 12mΩ Resistanceinformation
Start a Free Product Chat

ECOLTO-T1275

Lithium titanate battery

1)Quick Details

Lithium Titanate(LTO)12V75Ah

2)Features

The Safest Lithium Technology.
Integrated Battery Management System(BMS)
Long Cycle Life ＞ 10000cycles@ 80%DOD
A wide range of temperature, rapid charging, stability and high output

3)Application

Designed for Marine & RV applications, the T1275 is engineered to handle extreme vibration and is Plug and Play for any application that currently uses AGM, GEL ,lead-acid or LiFePo4 Battery.

Product Parameter
Start a Free Product Chat
12V 75Ah LTO Battery Pack For Marine RV Applications With 12mΩ Resistance 0

ECOLTO12-75(12V75Ah)
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12V	Dimension(L×W×H)	307x169x208mm
Rated Capacity	75Ah	Dimension(L×W×H)	12.09x6.65x8.19"
Energy	900Wh	Weight	14.2kg
Resistance	≤ 12mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS
Cycle Life	>10000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	2% per Month	Cell Type-Chemistry	LTO Cell
Max. Modules in Series/Parallel	58P/5S	SOC Display(Optional)	/
Discharge Parameters		Charge Parameters
Continuous Discharge Current	150A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	14-14.25V
Recommended Volt. Disconnect	7.5V	Recommended Float Voltage	13.75V
BMS Discharge Cut-off Voltage	8V	Recommended Charge Current	37.5A
Reconnect Voltage	10V	Maximum Charge Current	150A
Short Circuit Protection	200-500us	BMS Charge Cut-off Voltage	14.5V
Temperature Parameters
Discharge Temperature	-40 to 60 ℃
Charge Temperature	-40 to 60 ℃
Storage Temperature	-40 to 60℃
BMS High Temperature Cut-off	70 ℃

BATTERY DATA SHEET
