24Ah LTO Battery Pack
, 288Wh LTO Battery Pack
, High Discharge Current LTO Battery Pack

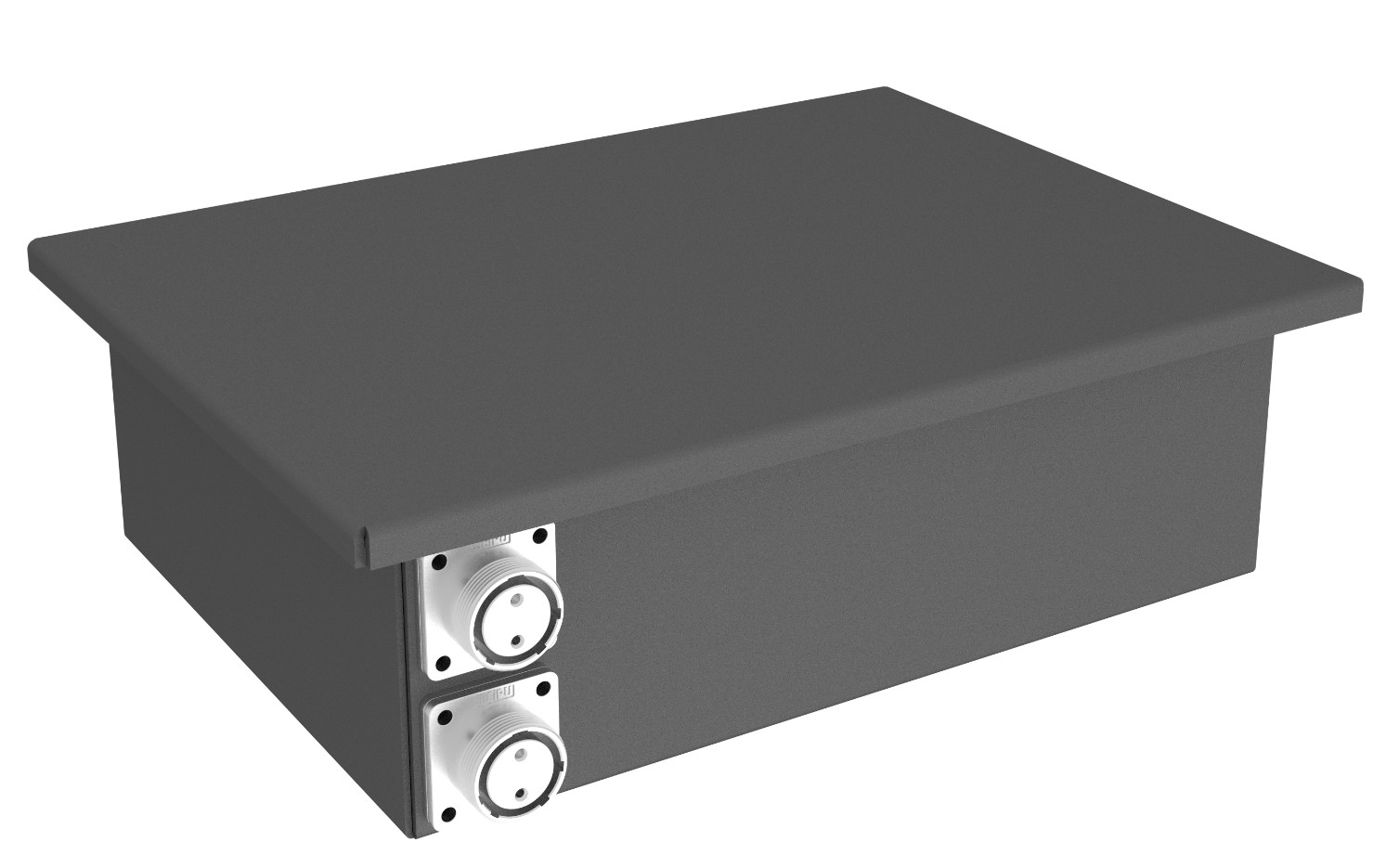

ECOLTO12-24 12V 24Ah 288Wh High Discharge Current LTO Battery Pack With BMS
LTO 12V24Ah Lithium Titanate Battery Pack With BMS Portable Power
LTO batteries: properties and usage
LTO batteries are lithium titanate (Li2TiO3) or li-titanate batteries.They are high power batteries, so they are perfect for use in the fast charging stations. Lithium titanate battery by the authority of the third party test found that in the needle, extrusion, short circuit and other stringent tests, no smoke, no fire, no explosion.
LTO batteries applications
They use it in different applications like UPS, electrical power trains, solar powered street lights, fast charge stations and forklifts.
Other applications for LTO batteries include aerospace and military uses, and more importantly wind and solar energy storage and smart grids creation.
The main advantages of the LTO batteries
o Excellent low temperature discharge characteristics
o Zero strain property, no formation of SEI film nor lithium plating when charging at low temperature or fast charging
o Long life time >10000cycles @1C,80% DOD
o Fast charge capability and wide temperature range
o Among the safest types of Li-ion batteries
Can Power For,
Rvs,Caravan,Golf Carts,Electric Vehicles,Boating &Sailboat,Home Energy Storage,Solar Storage,Emergency Power,Off Grid Energy Storage.
Play for any application that currently uses AGM, GEL ,lead-acid or LiFePo4 Battery.
| ECOLTO12-24(12V24Ah) |
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
12V |
Dimension(W×D×H) |
258x193x79mm |
| Rated Capacity |
24Ah |
10.16x7.60x3.11" |
| Energy |
288Wh |
Weight |
7kg |
| Resistance |
≤ 65mΩ |
Terminal Type |
WY20K2Z |
| Efficiency |
0.98 |
Battery Housing |
SPCC |
| Cycle Life |
>10000cycles @1C,80% DOD |
Housing Protection |
IP54 |
| Self Discharge |
＜5% per Month |
Cell Type-Chemistry |
LTO Cell |
|
Max.Modules in Series/Parallel
|
5S/16P |
Communication |
/ |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
50A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
80A (<1S) |
Charge Voltage |
13.75-14.2V |
| Recommended Volt. Disconnect |
7.5V |
Recommended Float Voltage |
13.5～13.75V@100% |
| BMS Discharge Cut-off Voltage |
7.5V |
Recommended Charge Current |
12A |
| Reconnect Voltage |
8.5V |
Maximum Charge Current |
50A |
| Short Circuit Protection |
320us |
BMS Charge Cut-off Voltage |
14.25V |
| Temperature Parameters |
|
|
| Discharge Temperature |
-40 ℃to 60 ℃ |
|
|
| Charge Temperature |
-40℃ to 60 ℃ |
|
|
| Storage Temperature |
-40 ℃to 60℃ |
|
|
| BMS High Temperature Cut-off |
65 ℃ |
