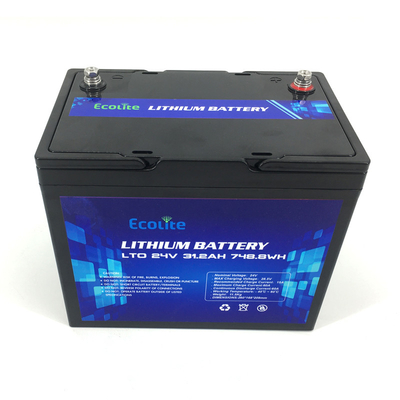

ECOLTO-T2430 LTO Battery Pack 24V 31.2AH For Home Solar System UPS System

1000pcs
MOQ
Inquiry
Price
ECOLTO-T2430 LTO Battery Pack 24V 31.2AH For Home Solar System UPS System
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 24V
Rated Capacity: 31.2Ah
Energy: 748.8Wh
Resistance: ≤ 20mΩ
Efficiency: 0.99
Cycle Life: >10000cycles @1C,80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 24P/16S
Weight: 11.5kg
Terminal Type: M8
Battery Housing: ABS
Housing Protection: IP65
Cell Type-Chemistry: LTO Cell
SOC Display(Optional): /
Highlight:

LTO Battery Pack 31.2AH

,

MSDS LTO Battery Pack

,

24V UPS System Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: ECOLTO-T2430
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

ECOLTO-T2430 24V 31.2AH LTO Battery Pack information
Start a Free Product Chat
ECOLTO-T2430 LTO Battery Pack 24V 31.2AH For Home Solar System UPS System 0 ECOLTO-T2430 LTO Battery Pack 24V 31.2AH For Home Solar System UPS System 1

ECOLTO-T2430
Lithium Titanate Battery
1) Quick Details
Lithium Titanate(LTO)24V31.2Ah
2) Features
integrated battery protect circuit board, above 10000cycle times, environment friendly ,fast charging ,high rate .support working at super low & high temperature condition
3) Application
home solar system , ups system

Product Parameter
Start a Free Product Chat
ECOLTO-T2430 LTO Battery Pack 24V 31.2AH For Home Solar System UPS System 2

Electrical ParametersMechanical Parameters
Nominal Voltage24VDimension(L×W×H)260x168x209mm
Rated Capacity31.2Ah10.24x6.61x8.23"
Energy748.8WhWeight11.5kg
Resistance≤ 20mΩTerminal TypeM8
Efficiency0.99Battery HousingABS
Cycle Life>10000cycles @1C,80% DODHousing ProtectionIP65
Self Discharge2% per MonthCell Type-ChemistryLTO Cell
Max. Modules in Series/Parallel24P/16SSOC Display(Optional)/
Discharge ParametersCharge Parameters
Continuous Discharge Current60ACharge MethodCC-CV
Pulse Discharge Current100A(<3S)Charge Voltage27.5~28.5V
Recommended Volt. Disconnect15VRecommended Float Voltage27.5V
BMS Discharge Cut-off Voltage17VRecommended Charge Current15A
Reconnect Voltage20VMaximum Charge Current60A
Short Circuit Protection200-500usBMS Charge Cut-off Voltage28.5V
Temperature Parameters
Discharge Temperature-40 to 60 ℃
Charge Temperature-40 to 60 ℃
Storage Temperature-10 to 35℃
BMS High Temperature Cut-off70 ℃

BATTERY DATA SHEET


Tag:

Lithium Titanate Battery Pack

Lithium Titanium Oxide Batteries

LTO Battery Pack 31.2AH
