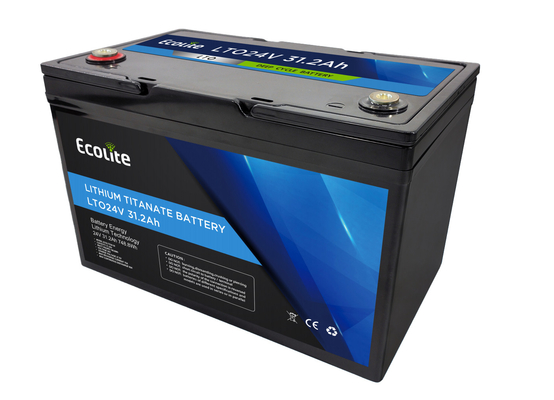

Long cycle Life LTO24-30 24V 31.2Ah Lithium Titanate Battery Pack 748.8Wh

5000
MOQ
Inquiry
Price
Long cycle Life LTO24-30 24V 31.2Ah Lithium Titanate Battery Pack 748.8Wh
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 24V
Capacity: 31.2Ah
Energy: 748.8Wh
Resistance: ≤12mΩ
Efficiency: ≥0.99
Cycle Life: >10000cycles @1C,80% DOD
Dimension(W×D×H): 260×168×209mm
Weight: 11kg
Highlight:

24V 31.2Ah LTO Battery Pack

,

748.8Wh LTO Battery Pack

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LTO24-30
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

Ecolite LTO24-30 24V31.2Ah Lithium Titanate



FEATURES

Lithium Titanate (LTO): Engineered with one of the safest lithium-ion battery chemistries, this 24V 31.2Ah battery system features an integrated Battery Management System (BMS), providing advanced protection and performance optimization.



PERFORMANCE

  • Exceptional Long Cycle Life: > 10,000 cycles at 80% Depth of Discharge (DOD)
  • High Energy Density for compact power storage
  • High Continuous Discharge Current capability
  • Wide Temperature Operating Range (-40°C to 60°C)
  • Lightweight Design for portable applications
  • Maintenance-Free Operation
  • Rapid Charging Technology
  • Eco-Friendly & Non-Toxic Composition
  • Engineered with Lithium Titanate (LTO) Technology for reliable and safe performance

LTO BATTERY PACK APPLICATION

Because of the benefits of lithium titanate in terms of high security, high stability, long life and green features, lithium titanate batteries can be widely used in military, aerospace, electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals, solar hybrid street lighting, UPS power supply, home storage, coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations, hospitals, finance, telecommunications as well as system critical backup power systems.



Electrical Parameters Mechanical Parameters
Nominal Voltage 24V Dimension(WxDxH) 260x168x209mm
Rated Capacity 31.2Ah Dimension(WxDxH) 10.24 x6.61x8.23
Energy 748.8Wh Weight 11kg
Resistance ≤12mΩ Terminal Type M8
Efficiency ≥0.99 Battery Housing ABS
Cycle Life >10000cycles @1C,80% DOD Housing Protection IP65
Self Discharge <2% per Month Cell Type-Chemistry LTO Cell
Cell in Series/Parallel 10S/24P Communication /



Discharge Parameters Charge Parameters
Continuous Discharge Current 60A Charge Method CC-CV
Pulse Discharge Current 100A (<3S) Charge Voltage 27.5-28.5V
Recommended Volt. Disconnect 15V Recommended Float Voltage 27.5V
BMS Discharge Cut-off Voltage 17V Recommended Charge Current 15A
Reconnect Voltage 20V Maximum Charge Current 60A
Short Circuit Protection 200-500us BMS Charge Cut-off Voltage 28.5V



Temperature Parameters
Discharge Temperature -40℃ to 60℃
Charge Temperature -40℃ to 60℃
Storage Temperature -10℃ to 35℃
BMS High Temperature Cut-off 75℃
