Home /Products/LTO Battery Pack/48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge

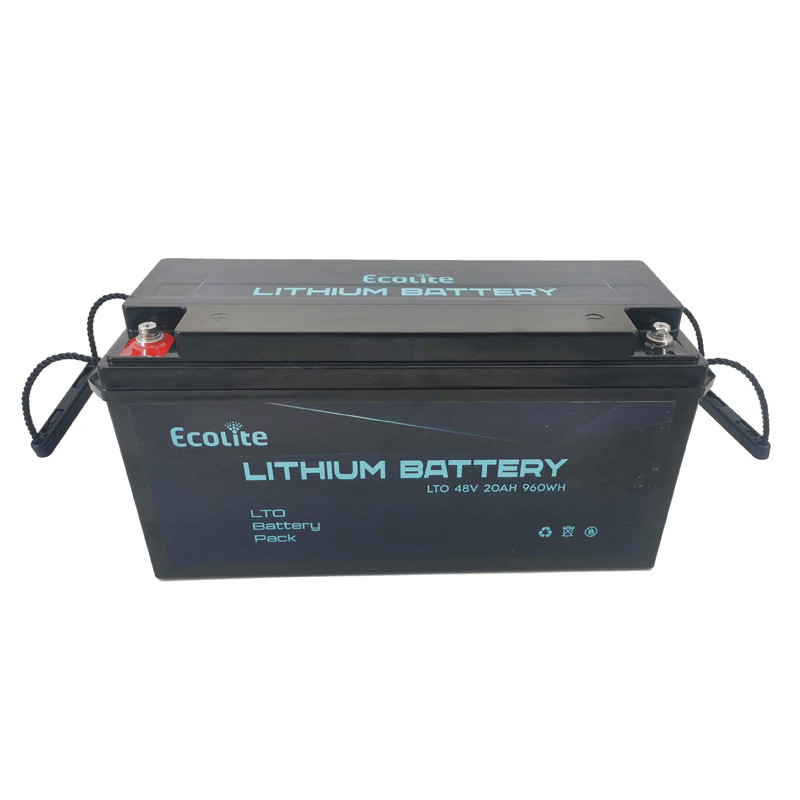

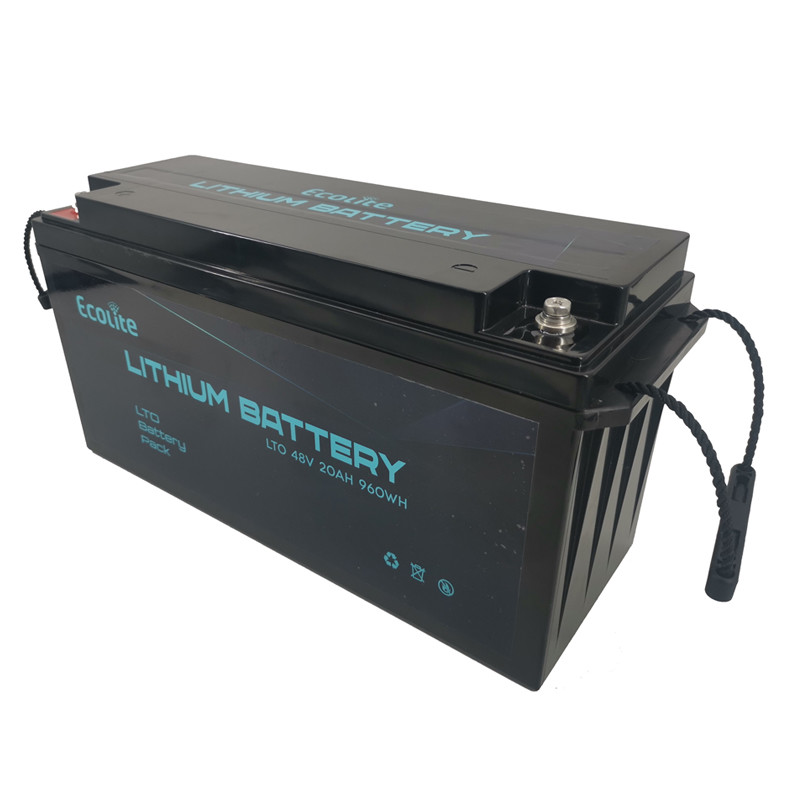

48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge

5000
MOQ
Inquiry
Price
48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 48V
Capacity: 20.8Ah
Energy: 998.4Wh
Highlight:

48V LTO Lithium Titanate Battery

,

LTO Lithium Titanate Battery Lightweight

,

48V Lithium Titanate Battery Pack
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS
Model Number: LTO4820
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000Units per month
Product Description

Ecolite Lithium Titanate(LTO)Battery Pack 48V20Ah Low Weight, High Rate Charge,Super Wide Temperature Range

Information
Start A Free Product Chat

48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge 048V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge 1

ECOLTO-T1230

Lithium Titanate Battery

1)Quick Details

Lithium Titanate(LTO)48V20Ah

2)Features

low weight, high rate charge . super wide temperature range , long cycle times, green performance, most safety technology

3)Application

home energy storage system, emergency backup power system, solar home system

Product Parameter
Start A Free Product Chat

48V 20Ah LTO Lithium Titanate Battery Pack Lightweight High Rate Charge 2

Electrical Parameters

Mechanical Parameters

Nominal Voltage

48V

Dimension(L×W×H)

406x174x232mm

Rated Capacity

20.8Ah

15.98x6.85x9.13"

Energy

998.4Wh

Weight

15kg

Resistance

≤ 12mΩ

Terminal Type

M8

Efficiency

0.99

Battery Housing

ABS, 6FM120IL

Cycle Life

>10000cycles @1C,80% DOD

Housing Protection

IP65

Self Discharge

2% per Month

Cell Type-Chemistry

LTO Cell

Max. Modules in Series/Parallel

20S/16P

SOC Display(Optional)

/

Discharge Parameters

Charge Parameters

Continuous Discharge Current

20A

Charge Method

CC-CV

Pulse Discharge Current

60A (<6S)

Charge Voltage

57V

Recommended Volt. Disconnect

30V

Recommended Float Voltage

565V

BMS Discharge Cut-off Voltage

28V

Recommended Charge Current

10A

Reconnect Voltage

34V

Maximum Charge Current

20A

Short Circuit Protection

200-500us

BMS Charge Cut-off Voltage

58V

Temperature Parameters





Discharge Temperature

-40 to 60 ℃





Charge Temperature

-40 to 60 ℃





Storage Temperature

-40 to 60℃





BMS High Temperature Cut-off

70 ℃









Tag:

Lithium Titanate Battery Pack

Lithium Titanium Oxide Batteries

48V LTO Lithium Titanate Battery
