24V 200Ah LiFePO4 Lithium Battery Deep Cycle For RV Caravan Boat Homes Outdoor

Name: 24V 200Ah LiFePO4 Lithium Battery Deep Cycle For RV Caravan Boat Homes Outdoor
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP24200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: LFP24200

Payment & Shipping Terms

Minimum Order Quantity: 5Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: T/T, L/C

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              LiFePO4 Lithium Battery Deep Cycle, Caravan LiFePO4 Lithium Battery, 24V 200Ah Lithium Battery


Chemistry:	LiFePO4	Voltage:	25.6V
Capacity:	200Ah	Energy:	5120Wh
Dimensions:	640x245x220mm	Terminal Type:	M8
Cycle Life:	>4000cycles @1C,80% DOD	Weight:	42kg
Operating Temperature:	-20°C To 60°C	Self-Discharge Rate:	≤2% Per Month
Max Discharge Current:	100A	Max Charge Current:	100A
Charge Method:	CC/CV	Storage Temperature:	-20°C To 60°C
Protection:	Overcharge, Overdischarge, Short Circuit, Overcurrent	Certifications:	CE, UL, RoHS

Chemistry:	LiFePO4
Voltage:	25.6V
Capacity:	200Ah
Energy:	5120Wh
Dimensions:	640x245x220mm
Terminal Type:	M8
Cycle Life:	>4000cycles @1C,80% DOD
Weight:	42kg
Operating Temperature:	-20°C To 60°C
Self-Discharge Rate:	≤2% Per Month
Max Discharge Current:	100A
Max Charge Current:	100A
Charge Method:	CC/CV
Storage Temperature:	-20°C To 60°C
Protection:	Overcharge, Overdischarge, Short Circuit, Overcurrent
Certifications:	CE, UL, RoHS

Description

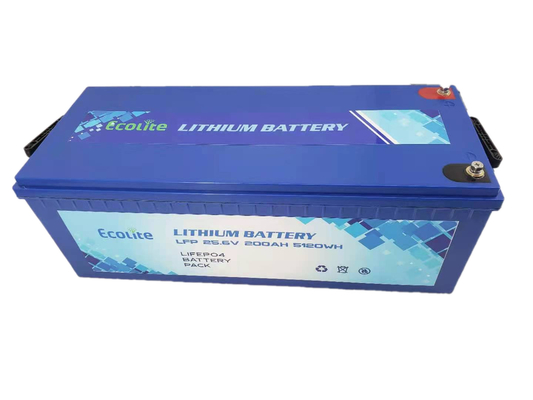

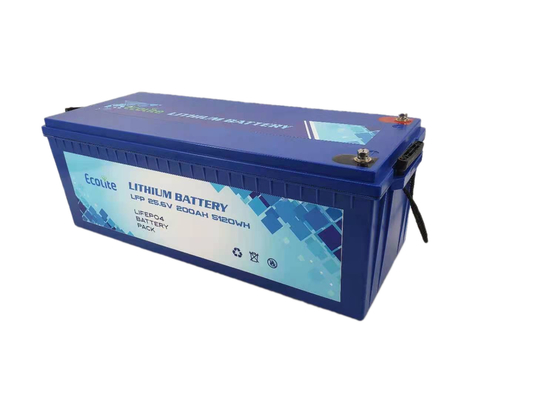

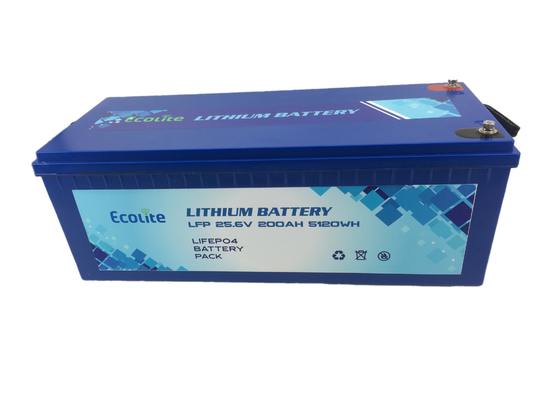

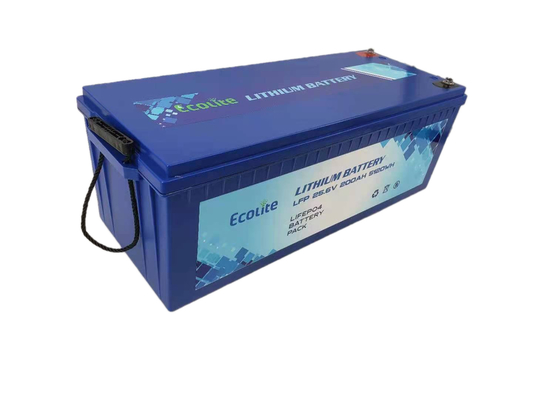

24V 200Ah LiFePO4 Lithium Battery Deep Cycle For RV Caravan Boat Homes Outdoor

24V 200Ah LiFePO4 Lithium Battery Deep Cycle For RV Caravan Boat Homes Outdoor 0

Features
Lithium-ion batteries are now a very popular type of battery.

Long life Deep cycle ＞ Capacity upgrade to store more capacity and longer use time.

Variety of charging methods: solar panels, electric supply, engine charging
Our products support customization, factory direct sales, brand cell, intelligent BMS, mature and reliable production process.

Electrical Parameters		Mechanical Parameters
Nominal Voltage	25.6V	Dimension(L×W×H)	640x245x220mm
Rated Capacity	200Ah	Dimension(L×W×H)	25.19x9.64x8.66"
Energy	5120Wh	Weight	42kg
Resistance	≤ 65mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP65
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4Cell
Max. Modules in Series/Parallel	8S/4P	SOC Display(Optional)	/
Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<3S)	Charge Voltage	28.4-29.2V
Recommended Volt. Disconnect	20V	Recommended Float Voltage	27V
BMS Discharge Cut-off Voltage	17.6V	Recommended Charge Current	50A
Reconnect Voltage	21.6V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	30V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 60 ℃
Storage Temperature	-10 to 60℃
BMS High Temperature Cut-off	65 ℃

Application
Home energy storage, solar energy storage,RV,Marine propeller,Outdoor high power equipment,UPS
