Home /Products/LiFePO4 Lithium Battery/LiFePO4 72V 300Ah Lithium Battery For Electric Tricycle Golf Cart Sightseeing Car

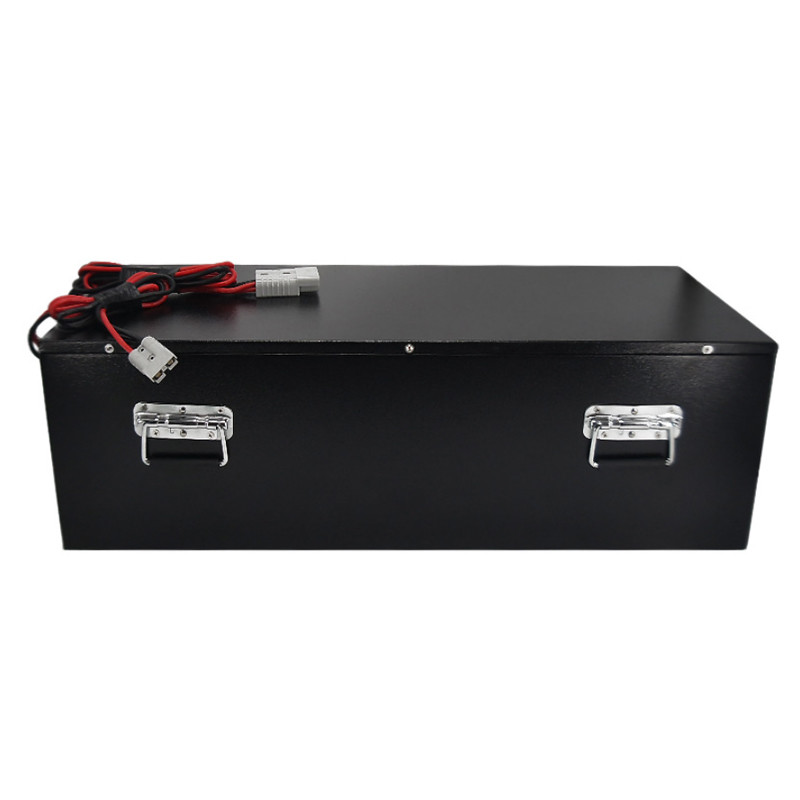

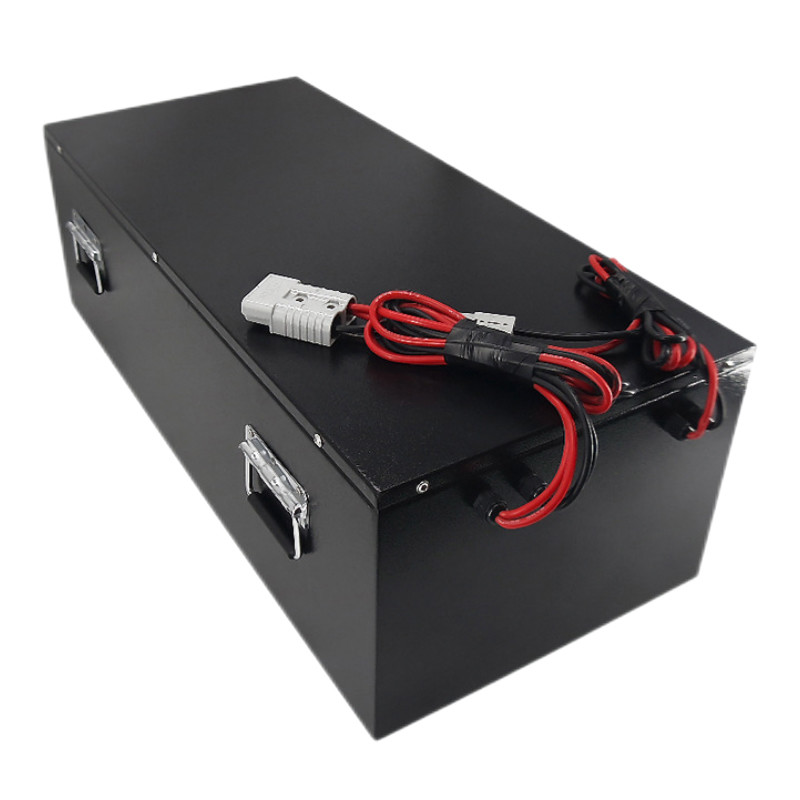

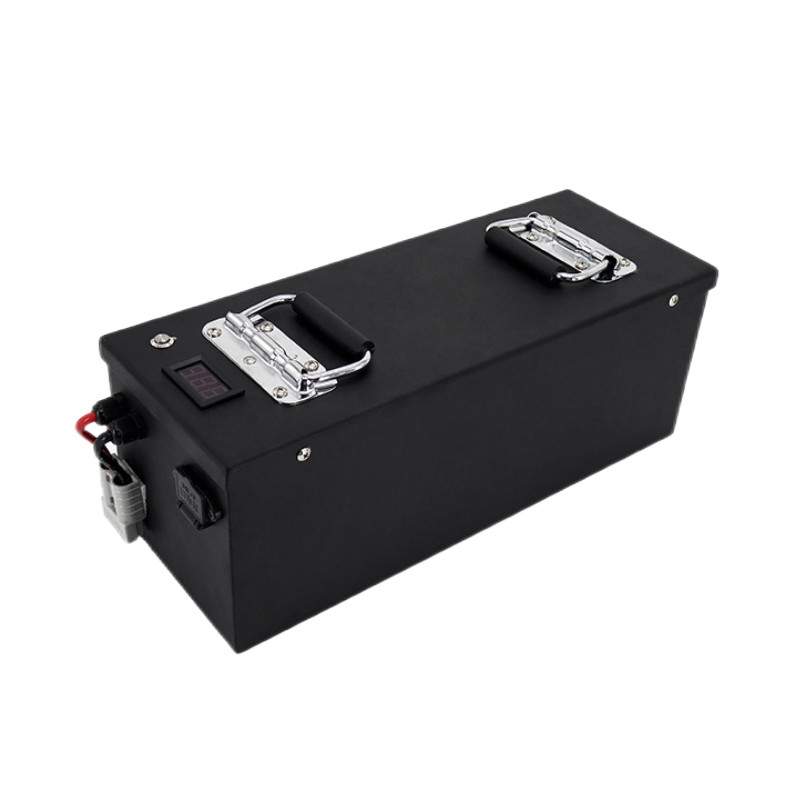

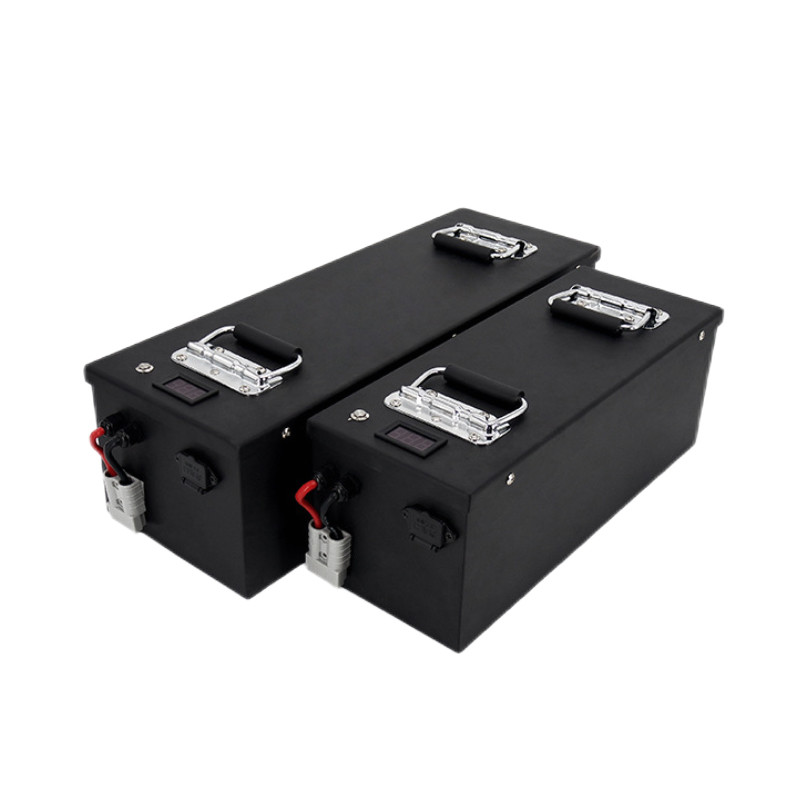

LiFePO4 72V 300Ah Lithium Battery For Electric Tricycle Golf Cart Sightseeing Car

2 Units
MOQ
Inquiry
Price
LiFePO4 72V 300Ah Lithium Battery For Electric Tricycle Golf Cart Sightseeing Car
Features Gallery Product Description Request A Quote
Features
Specifications
Chemical Formula: LiFePO4
Voltage: 72V
Rated Capacity: 300Ah
Energy: 5120Wh
Cycle Life: >4000 Cycles @80% DOD, 1C/1D 25℃
Dimensions: 4826x592x133mm
Weight: 45.5kg
Communication: RS485/RS232
Terminal Type: FCC06B0
Max Charge Current: 100A
Max Discharge Current: 100A
Internal Resistance: ≤30mΩ
Charge Method: CC_CV
Operating Temperature: -20°C To 60°C
Self Discharge Rate: ≤5% Per Month
Case Protection: IP30
Warranty: 3 Years
Certifications: UN38.8，MSDS，CE，RoHS
Highlight:

LiFePO4 Golf Cart Lithium Battery

,

72V Electric Tricycle Lithium Battery

,

300Ah Lithium Battery For Golf Cart
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: LFP72300
Payment & Shipping Terms
Packaging Details: Pallet Container
Delivery Time: 2 months
Payment Terms: T/T, L/C
Supply Ability: 200 Units per month
Product Description

LiFePO4 72V300Ah Lithium Battery For Electric Tricycle,Golf Cart, Sightseeing Car,Agricultural,Patrol car,Sanitation Car

Features
We use automotive grade power cell, with larger capacity, powerful, super long life.

Deep waterproof, no fear of wind and rain. Intelligent BMS, eight upgrade protection.

We are not afraid of the potential safety hazard caused by high temperature and the lack of power due to cold.

Super compatibility, wide use of electric vehicles.



Application
Electric tricycle, four wheeled car , golf cart, sightseeing car,Agricultural car, orchard car,Express car,

Patrol car,Sanitation vehicle, Low speed vehicle.





Product Parameter



ECOLFP 72V300Ah (73.6V302Ah)
Electrical Parameters Mechanical Parameters
Nominal Voltage 73.8V Dimension(L×W×H) 1100x520x270mm
Rated Capacity 302Ah 43.30x20.47x10.63"
Energy 22227.2Wh Weight 140kg
Resistance ≤ 80mΩ Terminal Type Anderson
Efficiency 0.99 Battery Housing Matel
Cycle Life >2000cycles @1C,80% DOD Housing Protection IP32
Self Discharge 2% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Modules in Series/Parallel 1P/23S SOC Display(Optional) 4G
Discharge Parameters Charge Parameters
Continuous Discharge Current 200A Charge Method CC-CV
Pulse Discharge Current 450A (<1S) Charge Voltage 81.65~83.95V
Recommended Volt. Disconnect 57.5V Recommended Float Voltage 77.62V
BMS Discharge Cut-off Voltage 50.6V Recommended Charge Current 50A
Reconnect Voltage 62.1V Maximum Charge Current 200A
Short Circuit Protection 300-800us BMS Charge Cut-off Voltage 88.55V
Temperature Parameters
Discharge Temperature -20 to 60 ℃ Storage Temperature -10 to 35℃
Charge Temperature 0 to 60 ℃ BMS High Temperature Cut-off 65 ℃
