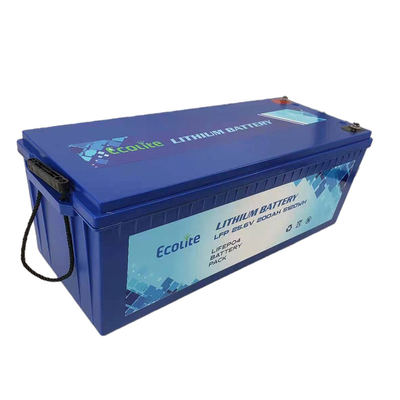

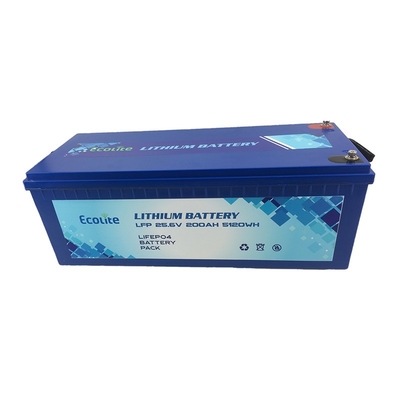

M8 Terminal Type LiFePO4 Lithium Battery ECOLTO-24200 IP65 Housing Protection

Name: M8 Terminal Type LiFePO4 Lithium Battery ECOLTO-24200 IP65 Housing Protection
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO-24200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: ECOLTO-24200

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      IP65 iFePO4 Lithium Battery, LiFePO4 Lithium Battery ECOLTO-24200


Nominal Voltage:	25.6V	Rated Capacity:	200Ah
Energy:	5120Wh	Resistance:	≤ 65mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	8S/4P
Weight:	42kg	Terminal Type:	M8
Battery Housing:	ABS	Housing Protection:	IP65
Cell Type-Chemistry:	LiFePO4Cell	SOC Display(Optional):	/

Nominal Voltage:	25.6V
Rated Capacity:	200Ah
Energy:	5120Wh
Resistance:	≤ 65mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	8S/4P
Weight:	42kg
Terminal Type:	M8
Battery Housing:	ABS
Housing Protection:	IP65
Cell Type-Chemistry:	LiFePO4Cell
SOC Display(Optional):	/

Description

M8 Terminal Type LiFePO4 Lithium Battery ECOLTO-24200 IP65 Housing Protection

ECOLTO-24200

information
Start a Free Product Chat

ECOLTO-24200

Lithium Iron Phosphate Battery

1)Quick Details

Deep cycle Lithium battery (LiFePO4) 24V200Ah

2)Features

Lithium-ion batteries are now a very popular type of battery.Long life Deep cycle ＞ Capacity upgrade to store more capacity and longer use time. Variety of charging methods: solar panels, electric supply, engine charging
Our products support customization, factory direct sales, brand cell, intelligent BMS, mature and reliable production process.

3)Application

Home energy storage, solar energy storage,RV,Marine propeller,Outdoor high power equipment,UPS

Product Parameter
Start a Free Product Chat

M8 Terminal Type LiFePO4 Lithium Battery ECOLTO-24200 IP65 Housing Protection 0

Electrical Parameters		Mechanical Parameters
Nominal Voltage	25.6V	Dimension(L×W×H)	640x245x220mm
Rated Capacity	200Ah	Dimension(L×W×H)	25.19x9.64x8.66"
Energy	5120Wh	Weight	42kg
Resistance	≤ 65mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP65
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO₄Cell
Max. Modules in Series/Parallel	8S/4P	SOC Display(Optional)	/
Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<3S)	Charge Voltage	28.4-29.2V
Recommended Volt. Disconnect	20V	Recommended Float Voltage	27V
BMS Discharge Cut-off Voltage	17.6V	Recommended Charge Current	50A
Reconnect Voltage	21.6V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	30V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 60 ℃
Storage Temperature	-10 to 60℃
BMS High Temperature Cut-off	65 ℃

BATTERY DATA SHEET
