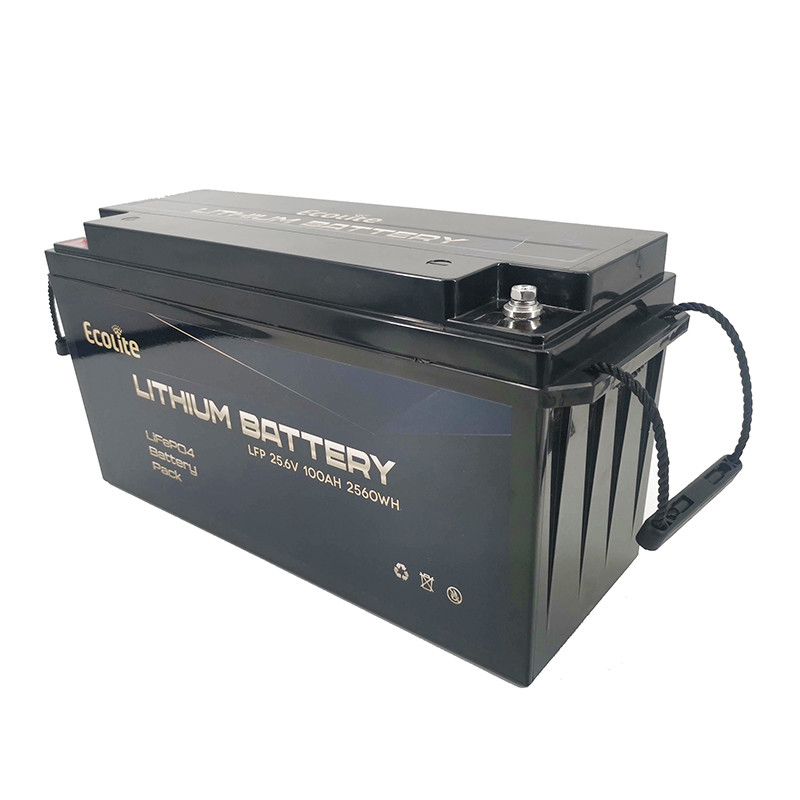

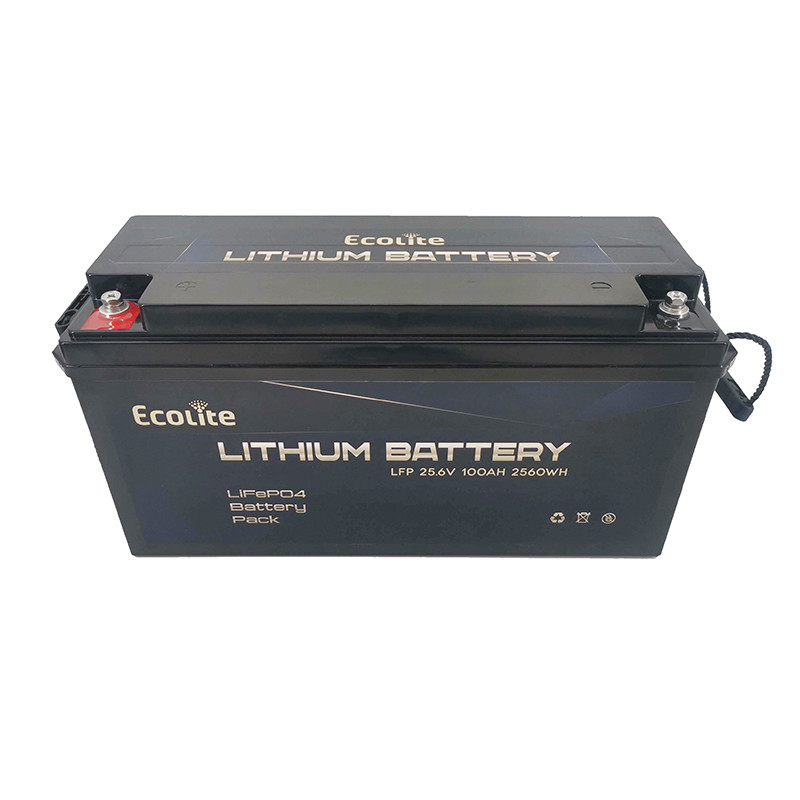

High Density Fast Charging LifePO4 Lithium Battery 25.6V 100Ah 2560Wh

Name: High Density Fast Charging LifePO4 Lithium Battery 25.6V 100Ah 2560Wh
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: ECOLTO-24100
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: ECOLTO-24100

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      High Density LiFePO4 Lithium Battery, LiFePO4 Lithium Battery 2560Wh, Lithium Fast Charging Battery 25.6V


Nominal Voltage:	25.6V	Rated Capacity:	100Ah
Energy:	2560Wh	Resistance:	≤ 65mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	8S/2P
Weight:	22kg(48.5bs)	Terminal Type:	M8
Battery Housing:	ABS, LG121	Housing Protection:	IP56
Cell Type-Chemistry:	LiFePO4Cell	SOC Display(Optional):	/

Nominal Voltage:	25.6V
Rated Capacity:	100Ah
Energy:	2560Wh
Resistance:	≤ 65mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	8S/2P
Weight:	22kg(48.5bs)
Terminal Type:	M8
Battery Housing:	ABS, LG121
Housing Protection:	IP56
Cell Type-Chemistry:	LiFePO4Cell
SOC Display(Optional):	/

Description

High Density Fast Charging LifePO4 Lithium Battery 25.6V 100Ah 2560Wh

ECOLTO-24100 LifePO4 Lithium Battery 25.6V 100Ah 2560Wh High Density and Fast Charging

ECOLTO-24100

information
Start a Free Product Chat

ECOLTO-24100

Lithium Iron Phosphate Battery

1)Quick Details

Lithium iron phosphate(LiFePO4) 24V100Ah battery

2)Features

Lithium-ion batteries are now a very popular type of battery.Long life Deep cycle ＞ 4000cycles@80%DOD, its design is very small, easy to carry, also environmentally friendly.
Our products support customization, factory direct sales, brand cell, intelligent BMS, mature and reliable production process.

3)Application

Outdoor energy storage,portable energy storage, RV, marine,medical equipment, home energy storage, solar energy storage

Product Parameter
Start a Free Product Chat

High Density Fast Charging LifePO4 Lithium Battery 25.6V 100Ah 2560Wh 0

Electrical Parameters		Mechanical Parameters

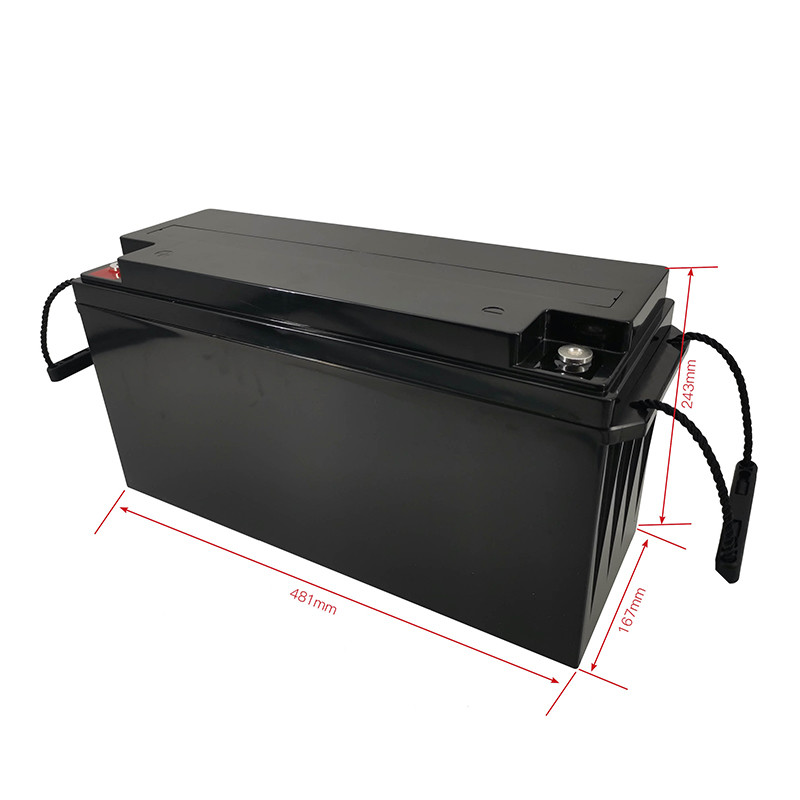

Nominal Voltage	25.6V	Dimension(L×W×H)	483x170x240mm
Rated Capacity	100Ah	Dimension(L×W×H)	19.0x6.7x9.4"
Energy	2560Wh	Weight	22kg(48.5bs)
Resistance	≤ 65mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS, LG121
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP56
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO₄Cell
Max. Modules in Series/Parallel	8S/2P	SOC Display(Optional)	/
Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<3S)	Charge Voltage	28.8-29.6V
Recommended Volt. Disconnect	20V	Recommended Float Voltage	27.6V
BMS Discharge Cut-off Voltage	17.6V	Recommended Charge Current	50A
Reconnect Voltage	21.6V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	30V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 60 ℃
Storage Temperature	-20 to 60℃
BMS High Temperature Cut-off	78 ℃

BATTERY DATA SHEET
