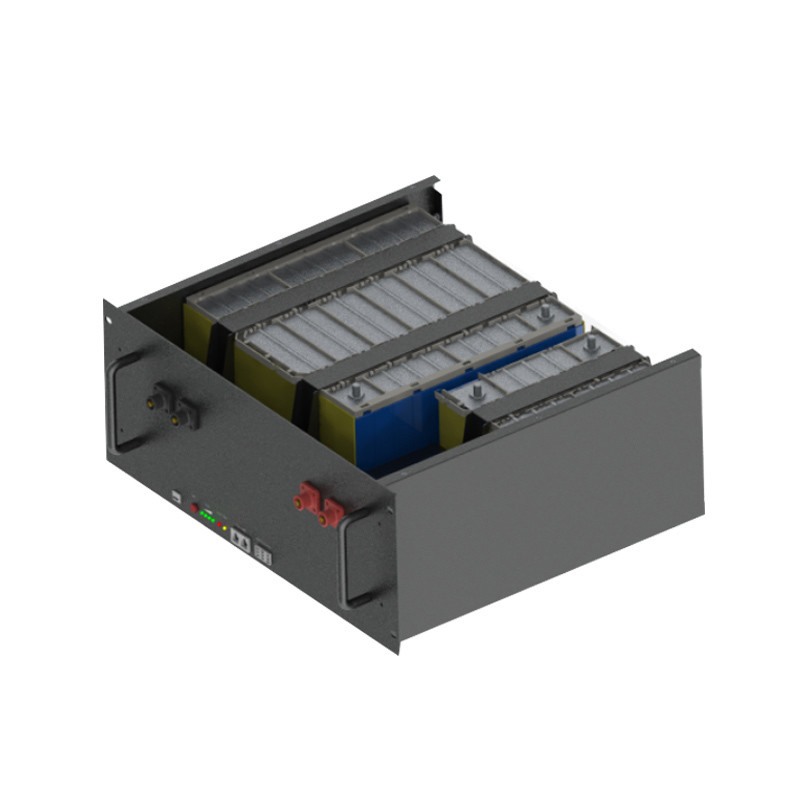

Telecom Backup Rechargeable LiFePO4 Lithium Battery 48V 100Ah With High Cycle Times

Name: Telecom Backup Rechargeable LiFePO4 Lithium Battery 48V 100Ah With High Cycle Times
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 48V 100Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 48V 100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Telecom LiFePO4 Lithium Battery, Rechargeable LiFePO4 Lithium Battery, Rechargeable Lithium Battery 48V 100Ah


Nominal Voltage:	51.2V	Rated Capacity:	100Ah
Energy:	4.8KWh	Resistance:	≤2.5mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	2P/16S
Weight:	48kg	Terminal Type:	100A Plug Type
Battery Housing:	Metal	Housing Protection:	IP54
Cell Type-Chemistry:	LiFePO4 Cell	SOC Display(Optional):	/

Nominal Voltage:	51.2V
Rated Capacity:	100Ah
Energy:	4.8KWh
Resistance:	≤2.5mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	2P/16S
Weight:	48kg
Terminal Type:	100A Plug Type
Battery Housing:	Metal
Housing Protection:	IP54
Cell Type-Chemistry:	LiFePO4 Cell
SOC Display(Optional):	/

Description

Telecom Backup Rechargeable LiFePO4 Lithium Battery 48V 100Ah With High Cycle Times

Telecom Backup Rechargeable 48v Battery Pack 100Ah With High Cycle Times

Rechargeable battery

Electrical Parameters
Nominal Voltage	51.2V
Rated Capacity	100Ah
Energy	4.8KWh
Resistance	≤2.5mΩ
Efficiency	0.99
Cycle Life	>4000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	2P/16S

Mechanical Parameters
Dimension(L×W×H)	400442190mm
Dimension(L×W×H)	15.717.47.5"
Weight	48kg
Terminal Type	100A Plug type
Battery Housing	Metal
Housing Protection	IP54
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	50A
Maximum Discharge Current	100A
Recommended Volt. Disconnect	40V
BMS Discharge Cut-off Voltage	35.2V
Reconnect Voltage	43.2V
Short Circuit Protection	300-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	57.6~59.2V
Recommended Float Voltage	55V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	60V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 45 ℃
Storage Temperature	-20 to 45℃
BMS High Temperature Cut-off	78 ℃

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
