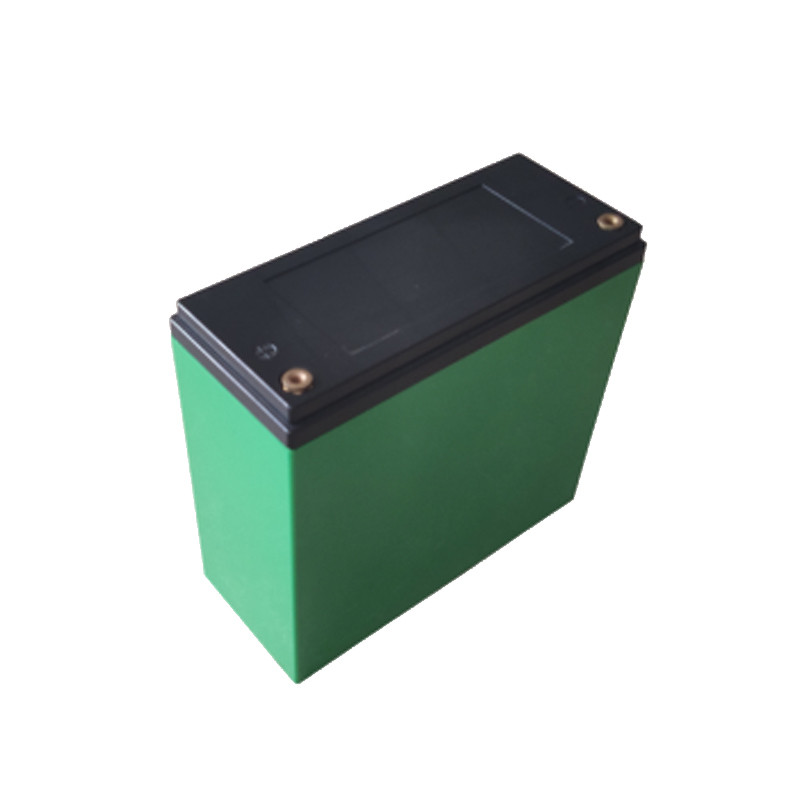

LFP Lithium Batteries Pack 12.8V 15.4Ah For Motor Tricycle

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12.8V 15.4Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price
Contact Now
Specifications
Highlight:

12.8V LFP Lithium Batteries Pack

,

15.4Ah LFP Lithium Batteries Pack

Nominal Voltage:
12.8V
Rated Capacity:
1.4Ah
Energy:
197.1Wh
Resistance:
≤2.5mΩ
Efficiency:
0.99
Cycle Life:
>3000cycles @1C,80% DOD
Self Discharge:
2% Per Month
Max. Modules In Series/Parallel:
4S/7P
Nominal Voltage:
12.8V
Rated Capacity:
1.4Ah
Energy:
197.1Wh
Resistance:
≤2.5mΩ
Efficiency:
0.99
Cycle Life:
>3000cycles @1C,80% DOD
Self Discharge:
2% Per Month
Max. Modules In Series/Parallel:
4S/7P
Description
LFP Lithium Batteries Pack 12.8V 15.4Ah For Motor Tricycle

LFP Lithium Batteries Pack 12.8V 15.4Ah For Motor Tricycle





Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 1.4Ah
Energy 197.1Wh
Resistance ≤2.5mΩ
Efficiency 0.99
Cycle Life >3000cycles @1C,80% DOD
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/7P
Mechanical Parameters
Dimension(L×W×H) 181*77*156mm
7.13*3.03*6.14"
Weight 1.9kg
Terminal Type M5
Battery Housing ABS
Housing Protection IP56
Cell Type-Chemistry LiFePO Cell
SOC Display(Optional) /
Discharge Parameters
Continuous Discharge Current 15.4A
Cold Cranking Ampere 780CCA
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 14.5V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us
Charge Parameters
Charge Method CC-CV
Charge Voltage 14.4~14.4V
Recommended Float Voltage 13.4V
Recommended Charge Current 15.4A
Maximum Charge Current 61.6A
BMS Charge Cut-off Voltage 14.4V
Temperature Parameters
Discharge Temperature -20 to 60 ℃
Charge Temperature 0 to 45 ℃
Storage Temperature -20 to 45℃
BMS High Temperature Cut-off 78 ℃



Hefei Hongye Lithium Energy Science &Technology Co., Ltd., is located in beautiful Boyan Science &Technology Park of Hefei, which has convenient transportation and well-equipped facilities. Lithium Energy is specialized in R&D,production,sales and technology support of lithium battery. Meanwhile, it has its own intellectual property, which makes it possible to provide different service with different requirement, that’s why Lithium Energy gets good reputation.
Lithium Energy covers an area of 14000 square meters, and the current production capacity is 80 thousand per day. The factory covers with full-automatic equipment, with human assistance. We mainly produce LTO and LFP at present, widely applied in energy storage, communication base station, car, etc.
Lithium Energy carries on spirit of “preciseness factualism efficiency innovation harmony”, and keeps principle of “be practical and realistic” “customer orientation” with a professional team.
Lithium Energy will focus on creating its own brand and contributing to a greener home.



Q :Do you provide free sample ?
A: Yes, pcs free sample can be provided, but freight will be charged

Q: How about the quality guarantee period?
A: 12 months

Q:What is your payment term ?
A: T/T

Q:Can I print myself logo ?
A: Yes,We provide all kinds of OEM service

Q :How many cells you can produce per month?
A: 1.8million

Q :What is your package?
A:Carton

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
